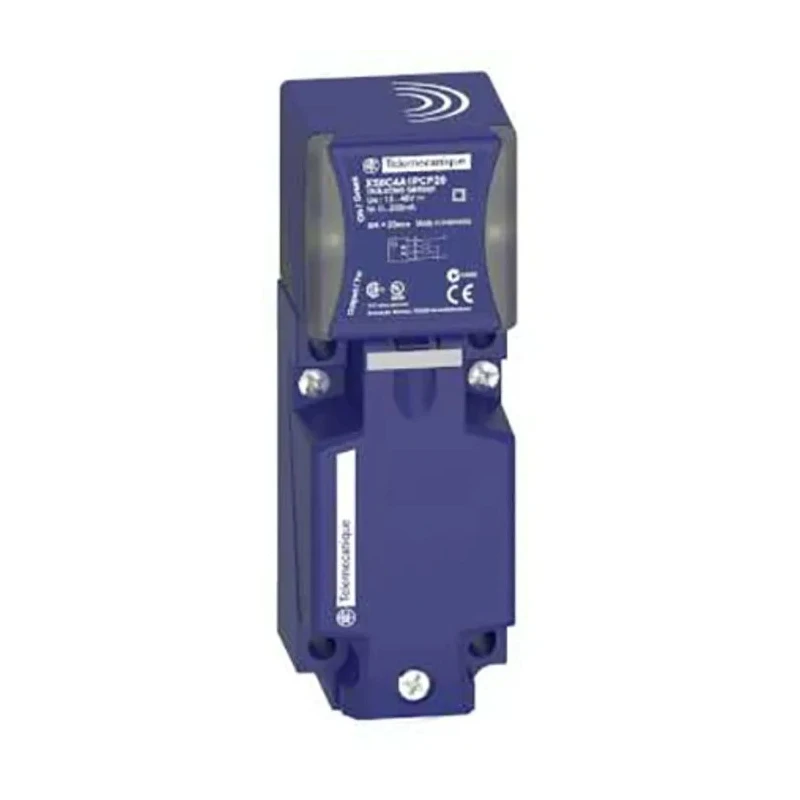

Telemecanique Sensors Block Inductive Proximity Sensor 1/2 in NPT, PNP Output, 58 V DC, 20 mm Detection Distance XS8C4A1PCN12

Telemecanique Sensors XS8C4A1PCN12 is a high-performance block style inductive proximity sensor designed for durable non-contact metal detection in demanding industrial and automation applications. The sensor features a 1/2 inch NPT threaded body that allows straightforward flush mounting into machinery or equipment, ensuring secure placement for consistent operation.

Constructed with a plastic housing and achieving IP65, IP67, and IP69K ingress protection levels, this sensor is well-suited for environments requiring resistance to dust, water jetting, and high-pressure cleaning. It operates within a temperature range of -25°C to 70°C, providing versatility across various industrial climates.

The sensor provides a detection range of up to 20 mm for plastic materials, using unshielded sensing technology that creates an alternating magnetic field for precise object identification. With a maximum supply and DC voltage rating of 58 V, along with a switching current of 1.5 mA and a maximum switching frequency of 300 Hz, the XS8C4A1PCN12 is optimized for reliable integration with control systems.

Connection is facilitated via screw clamp terminals offering secure and practical wiring during installation and maintenance. The sensor complies with stringent global standards such as EN/ISO 13849-1, IEC 62061, TÜV, UL, CCC, CE, CSA, DIN 40050, E2, EN/IEC 61508, and IEC 60529, ensuring safety and quality assurances required in industrial automation, manufacturing, material handling, logistics, robotics, and railway sectors.

Ideal for applications involving conveyor belts, hoisting equipment, machine tools, packaging lines, and other automated processes, this Inductive Proximity Sensor delivers high detection accuracy and operational reliability.

Block body style with 1/2 inch NPT threaded mount for flush installation. Plastic housing with IP65/IP67/IP69K ingress protection rating. Detection range up to 20 mm for plastic materials using unshielded sensing. Operating temperature from -25°C to 70°C to withstand varied industrial conditions.

PNP output type with a 1.5 mA current rating and max switching frequency of 300 Hz. Compliance with international industrial and safety standards ensures quality and safety. Screw clamp terminals aid in straightforward and secure wiring.
