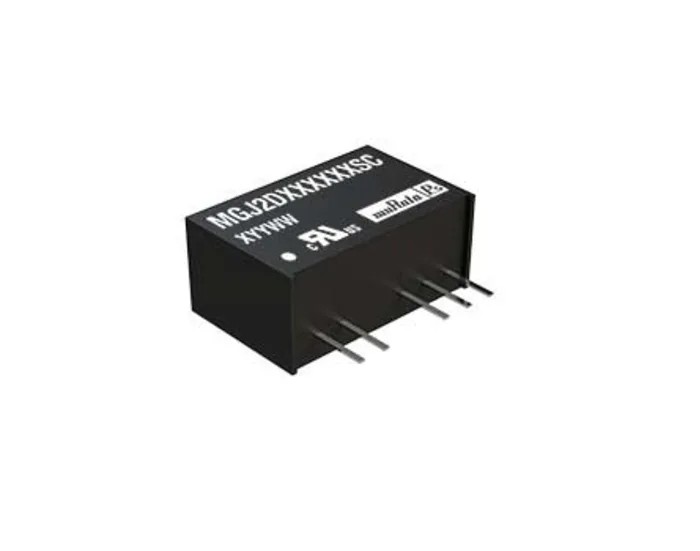

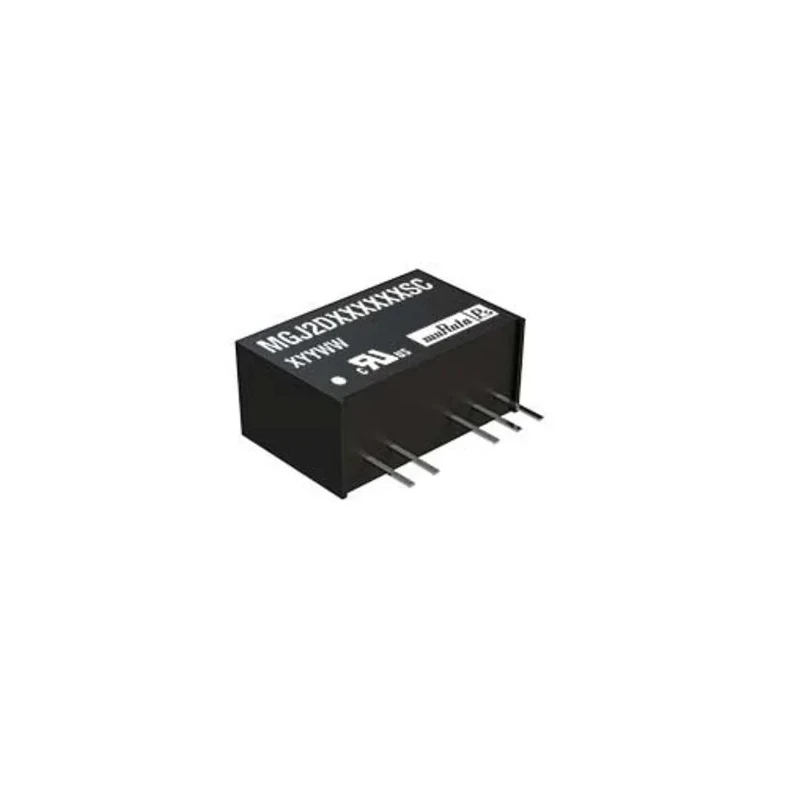

Murata Power Solutions DC/DC Converter 2W Dual Output 5V/40mA & 15V/80mA, 21.6-26.4V Input, Through Hole DIP MGJ2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ2 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 80.5% |
| Length | 19.65mm |
| Model | MGJ2 |
| Depth | 12.65mm |
| Gross Weight | 4.3g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | MGJ2 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 40mA |
| Isolation Voltage | 5.2kV dc |
| Output Current 2 | 80mA |
| Output Voltage 2 | 15V dc |
Key Features
- Provides dual isolated output voltages at 5V and 15V with currents of 40mA and 80mA respectively.
- Operates with a wide input voltage range of 21.6V to 26.4V DC ensuring stable performance.
- Features a through-hole DIP package for easy PCB mounting and integration.
- Offers an isolation voltage of 5.2kV DC for safety in high voltage applications.
- Compact package size with dimensions 19.65mm (L) x 19.5mm (W) x 12.65mm (D) and lightweight at 4.3g.
- Efficient power conversion with 80.5% efficiency rating to reduce energy loss.
- Designed for industrial use with operating temperature range from -40°C to 100°C.
- Meets RoHS compliance ensuring environmentally safe materials and manufacturing.
Product Description
Murata Power Solutions MGJ2D241505SC is a high-performance 2W DC/DC converter from the MGJ2 series, providing dual isolated outputs of 5V at 40mA and 15V at 80mA. It features a wide input voltage range of 21.6V to 26.4V DC and a through-hole DIP package that facilitates easy mounting and integration on printed circuit boards.
This converter is designed to offer an isolation voltage of 5.2kV DC, ensuring safe operation in high-voltage bridge circuits such as those used with IGBTs and MOSFETs. The MGJ2 series products are characterized by high dv/dt immunity, ultra-low coupling capacitance, and excellent partial discharge performance, making them ideal for industrial applications including motor drives and inverter systems.
The unit operates efficiently with an 80.5% rating, minimizing power losses during conversion. Its compact footprint of 1.96 cm² and light weight of 4.3 grams support space-constrained designs. It is RoHS compliant and can reliably operate over a broad temperature range from -40°C to 100°C, suitable for harsh industrial environments.
This DC/DC converter also supports optimized bipolar output voltages for efficient gate drive levels, maximizing system performance and reducing electromagnetic interference. The package type is DIP with 7 pins ensuring a secure connection and robust mechanical stability.
Dual isolated output voltages of +5V/40mA and +15V/80mA. Input voltage range of 21.6V to 26.4V DC. Isolation voltage rating of 5.2kV DC for enhanced safety. Efficient power conversion with 80.5% efficiency. Compact DIP package, 19.65 x 19.5 x 12.65 mm and 4.3 g weight.
Operating temperature from -40°C to 100°C for industrial suitability. RoHS compliant and environmentally safe. Suitable for IGBT and MOSFET gate drive circuits in motor drives and inverters. Characterized for dv/dt immunity and partial discharge performance.
Select Murata Power Solutions MGJ2D241505SC for reliable and efficient isolated DC/DC power conversion in electronics manufacturing, industrial automation, and power management applications. Explore the full range of DC/DC Converters and related products on EnvMart for tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 21.6V to 26.4V DC.
This unit provides dual isolated output voltages of 5V at 40mA and 15V at 80mA.
The isolation voltage rating is 5.2kV DC, ensuring safe operation in high-voltage applications.
It operates with an efficiency rating of 80.5%, minimizing power losses during conversion.
The dimensions are 19.65mm (L) x 19.5mm (W) x 12.65mm (D) and it weighs 4.3g.
This model operates within a temperature range of -40°C to 100°C, suitable for industrial environments.
It features a through-hole DIP package for easy PCB mounting and integration.
This converter has two outputs, providing dual isolated voltages.
It meets RoHS compliance, ensuring environmentally safe materials and manufacturing processes.
The ripple and noise specification is 50mV Pk-Pk.
This model is suitable for applications such as IGBT and MOSFET gate drive circuits in motor drives and inverters.
The package type includes 7 pins, ensuring a secure connection and stability.
