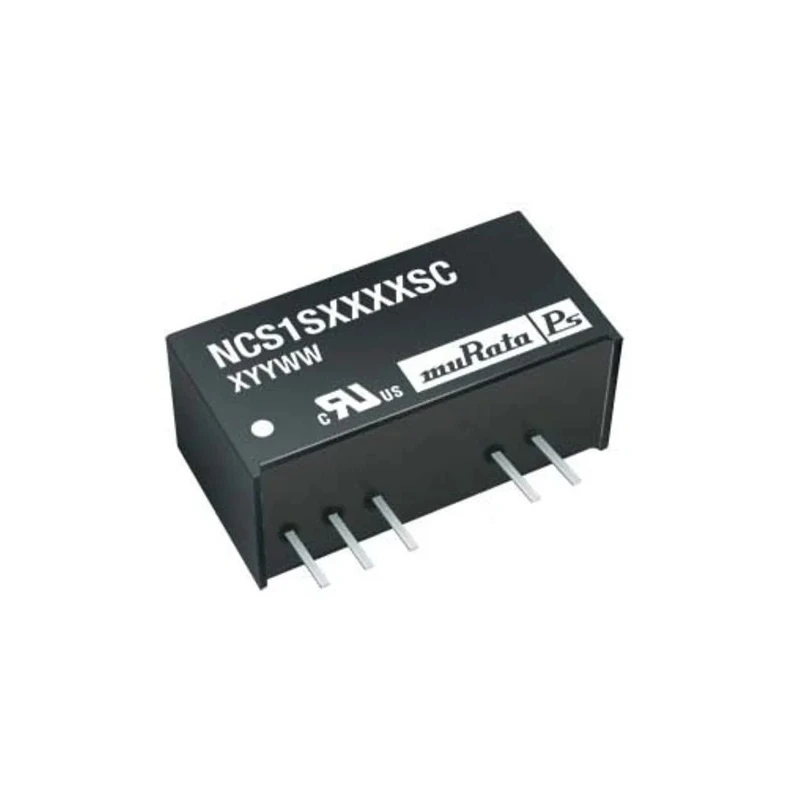

Murata Power Solutions DC/DC Converter Through Hole 1W 3.3V dc Output 300 mA 9V-36V Input NCS1

Murata Power Solutions NCS1S2403SC is a high-quality DC/DC converter designed for industrial and telecommunications applications requiring stable power conversion with isolation. This single output 1 watt converter outputs 3.3V DC voltage at a current rating of 300 mA, suitable for powering low power electronics within hostile electrical environments.

Encapsulated in an industry standard DIP through-hole package, the NCS1S2403SC offers an input voltage range of 9V to 36V DC, supporting a wide range of power supply inputs. The converter features a wide input voltage ratio of 4:1 and efficiency of 76%, reducing heat dissipation and improving energy utilization.

This converter includes continuous short circuit protection safeguarding connected devices against output faults. Its 7-pin package is designed for easy PCB mounting and integration. The converter provides 1kV DC isolation to protect circuits from voltage transients and noise interference, making it ideal for distributed power systems, process control, and battery-powered equipment.

The operational temperature range from -40°C to +105°C allows use in harsh industrial conditions. Compact dimensions (21.87 mm length and width, 11.3 mm depth) and a lightweight 3.3 g mass facilitate dense PCB layouts and minimal weight impact.

The product complies with RoHS standards ensuring environmentally friendly manufacturing processes. With a Mean Time Between Failure (MTBF) of over 1.2 million hours, reliability demands in telecom, industrial, and commercial power applications are met.

Applications for the Murata NCS1S2403SC include telecommunications equipment, battery powered devices, process control, and distributed power systems requiring regulated, isolated DC-DC power conversion with high safety and stability.

Wide 4:1 input voltage ratio allowing 9V to 36V input range. High efficiency typical value of 76% to optimize power consumption. Industry standard DIP package with 7 pins and through-hole mount type. Continuous short circuit protection ensures robustness and durability.

Offers 1kV DC isolation voltage for enhanced safety in electrical systems. Ripple and noise voltage limited to 70mV peak-to-peak to maintain output stability. Compact dimensions with length and width of 21.87mm and depth of 11.3mm.

Wide operating temperature range from -40°C up to +105°C for varied climates. Mean time between failures (MTBF) reported at 1,217,000 hours indicating high reliability.
