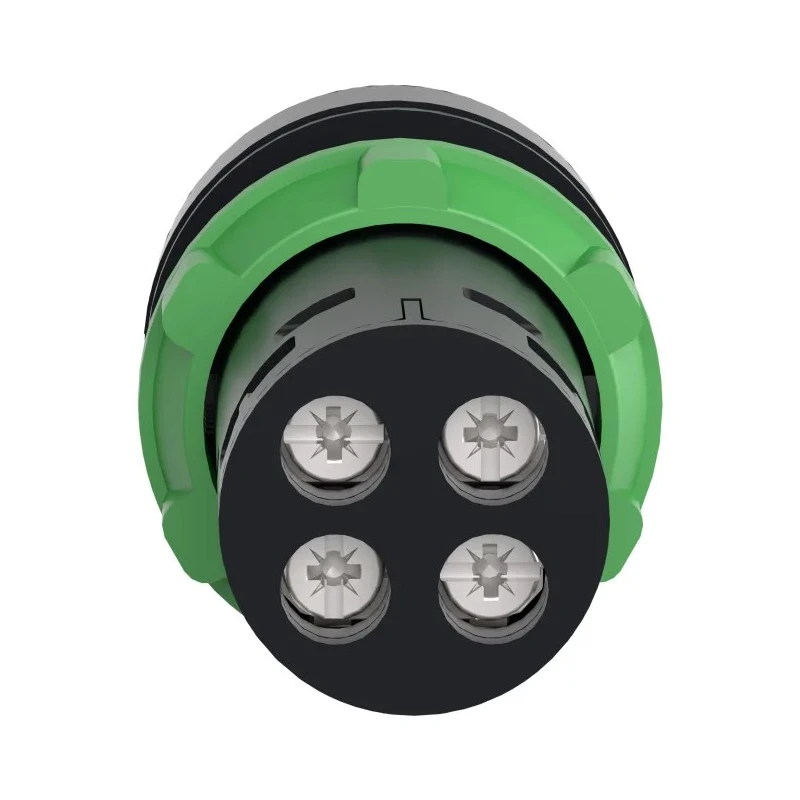

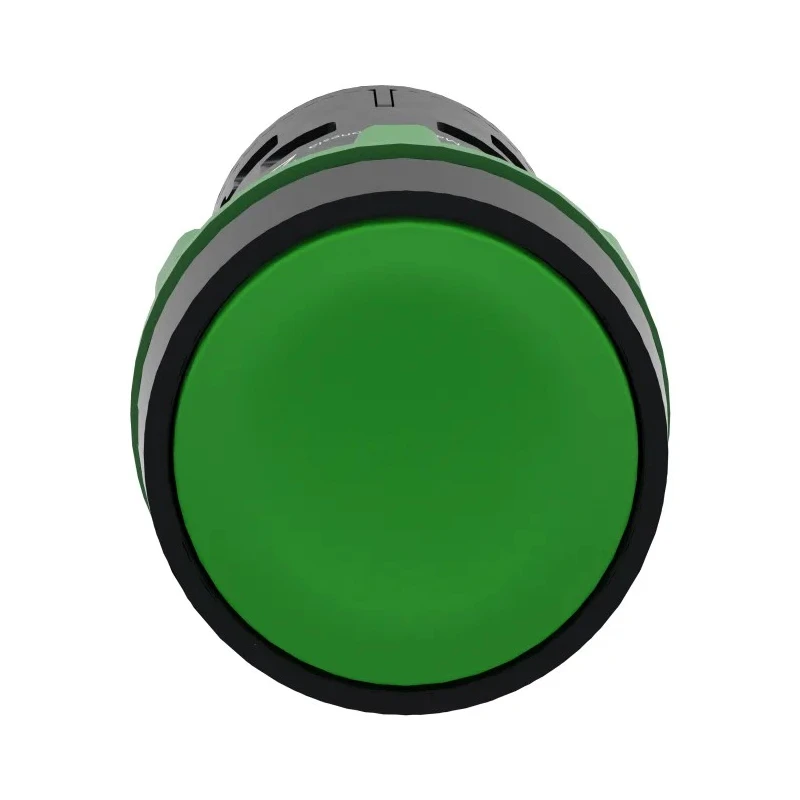

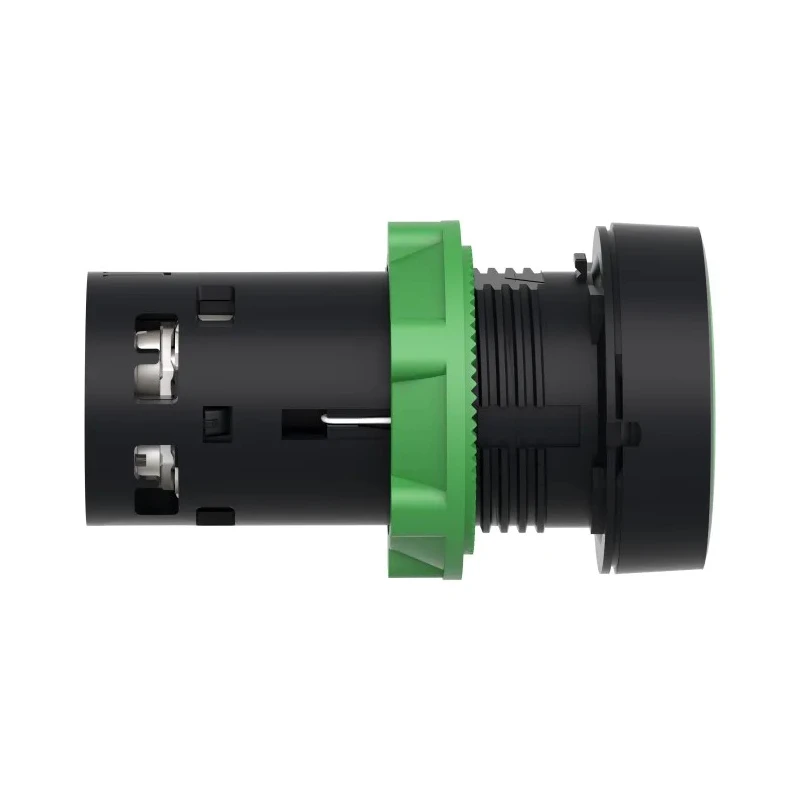

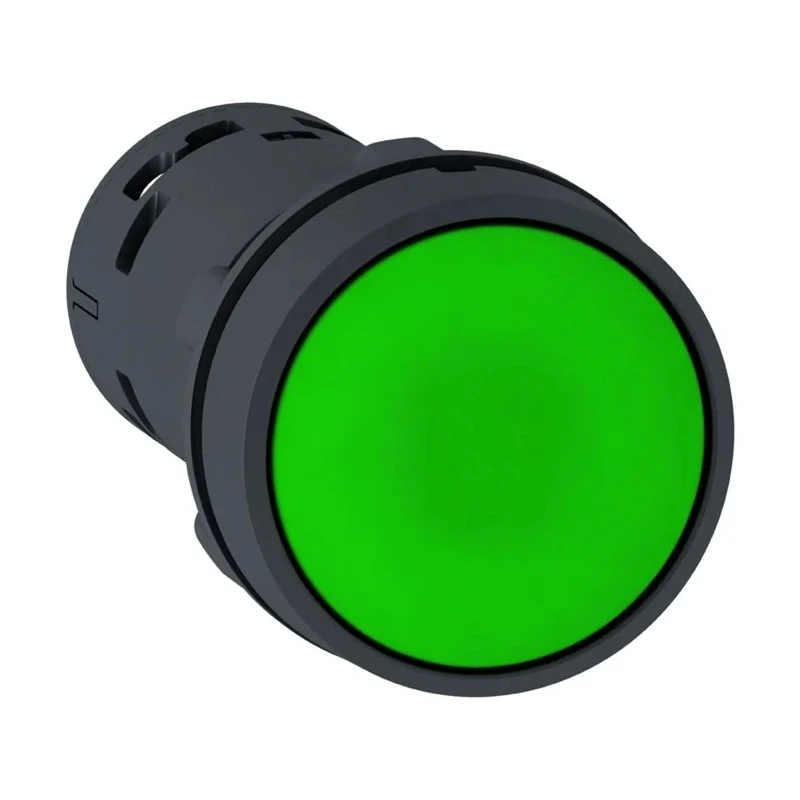

Schneider Electric Harmony XB7 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPDT, Green LED XB7NA35
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 29mm |
| Length | 51.5mm |
| Model | XB7NA35 |
| Width | 29mm |
| Mount Type | Panel Mount |
| Series | Harmony XB7 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Spring Return |
| Actuator Colour | Green |
| Contact DC Voltage | 250V dc |
| Actuator Style | Round |
| Switch Contact Current | 300mA |
| Contact AC Voltage | 240V ac |
| Legend | Blank |
Key Features
- Features a spring return actuator with a round design for quick and reliable operation.
- Suitable for panel mounting with a 22 mm cutout, compatible with standard industry panels.
- Equipped with SPDT contact configuration offering 1 NO and 1 NC contacts for versatile switching.
- Green LED illuminates the button without being illuminated itself.
- Designed for harsh environments with IP65 protection rating.
- Operates within wide temperature ranges from -25°C to 70°C for versatile application.
- Supports contact voltages of 250V DC and 240V AC with a maximum contact current of 300 mA.
- Complies with international standards including EN/IEC 60947 and UL 508 ensuring quality and safety.
Product Description
Schneider Electric XB7NA35 Harmony XB7 Series Push Button Switch is an industrial-grade control switch designed for reliable and efficient operation in demanding environments. This spring return push button features a round actuator designed for ergonomic use and panel mounting with a 22 mm cutout, making installation straightforward and compatible with standard industrial panels.
This switch uses a SPDT (Single Pole Double Throw) contact configuration providing one normally open and one normally closed contact, enabling versatile control configurations in automation and electrical control systems.
The green LED color provides a visual status indication and the button does not have its own illumination. Designed with IP65 rating, it is resistant to dust, water, vibration, and impacts, making it suitable for harsh industrial, manufacturing, and automation environments. Its double insulated plastic bezel enhances safety and durability.
The switch supports a wide operating temperature range from -25°C to 70°C, allowing use in various climatic conditions. It can handle DC voltage up to 250V and AC voltage up to 240V with a contact current rating of 300 mA, making it compatible with numerous control circuits.
The product meets multiple international electrical and safety standards including EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14, UL 508, and JIS standards, ensuring quality performance and regulatory compliance.
Features a spring return mechanism with a round actuator for optimal usability. Panel mount design fits 22 mm cutouts with screw terminal connections. SPDT contact configuration supports flexible control wiring. Green LED color for status indication, non-illuminated push button.
Operates reliably within -25°C to 70°C temperature range. IP65 rated for dust and water resistance in industrial environments. Double insulated bezel enhances electrical safety and durability. Complies with multiple international electrical standards for safety and performance.
Ideal for industrial automation, manufacturing, and control panels. Explore more Schneider Electric products and advanced Push Button Switches at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, providing one normally open (NO) and one normally closed (NC) contact for versatile switching options.
The dimensions of this unit are 29 mm in height, 29 mm in width, and 51.5 mm in length.
It operates reliably within a temperature range of -25°C to 70°C, making it suitable for various climatic conditions.
The maximum contact current rating for this model is 300 mA.
This model is designed for panel mounting and requires a 22 mm cutout for installation.
It has an IP65 rating, indicating it is resistant to dust and water, suitable for harsh industrial environments.
The switch supports contact voltages of 250V DC and 240V AC, making it compatible with various control circuits.
This model features a round actuator with a spring return mechanism, designed for ergonomic use.
It utilizes screw terminals for secure electrical connections.
This switch complies with multiple international standards including EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14, UL 508, and JIS standards, ensuring safety and quality performance.
The LED color is green, providing visual status indication without illuminating the button itself.
It is ideal for use in industrial automation, manufacturing, and control panels, thanks to its robust design and versatile features.
