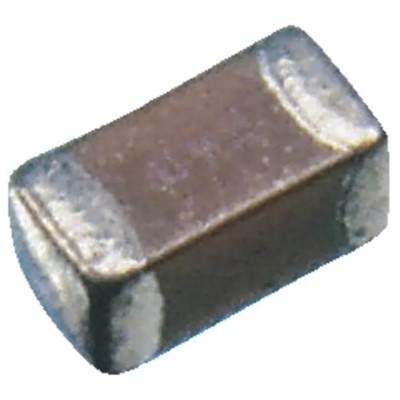

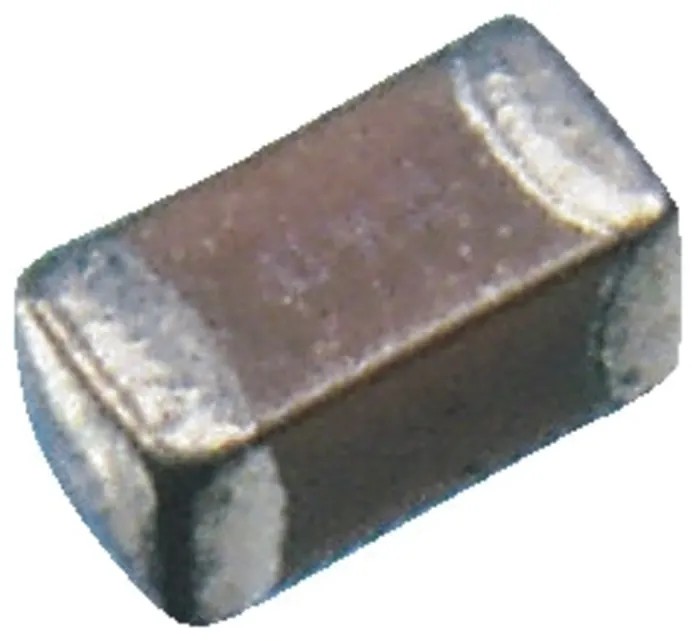

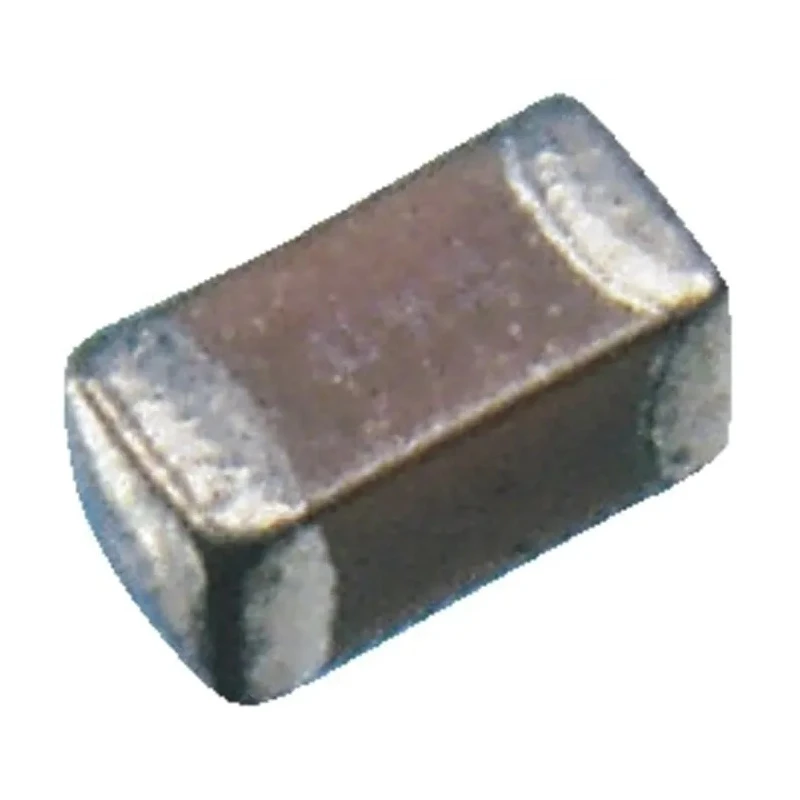

Murata 18 pF Multilayer Ceramic Capacitor 50V DC ±5% Tolerance Surface Mount 0402 GJM1555C1H180JB01D

Murata GJM1555C1H180JB01D is a high-quality multilayer ceramic capacitor (MLCC) designed for advanced electronic component applications requiring stable performance at very high frequencies. Featuring a capacitance of 18 pF, this capacitor operates reliably at a rated voltage of 50 V DC with a tolerance of ±5%, making it ideal for use in precision resonant circuits, tuning modules, and impedance matching networks.

The device utilizes a C0G dielectric material providing excellent temperature stability with minimal capacitance change over its operating temperature range from -55°C up to 125°C. Packaged in a compact 0402 surface mount case type measuring 1 mm in length and 0.5 mm in width and height, it enables efficient use of PCB space especially in high-density applications.

Its stacked construction design enhances the capacitor's high frequency characteristics and reduces equivalent series resistance (ESR), contributing to energy efficiency and reduced power consumption in RF and microwave communication circuits. The surface mount termination type allows for streamlined soldering during automated PCB assembly lines.

Packaging on paper tape supports high-volume manufacturing while complying with RoHS environmental directives ensures its suitability for green manufacturing and commercial deployment worldwide.

Capacitance of 18 pF provides stable frequency compensation. Rated voltage of 50 V DC suitable for moderate voltage electronic circuits. Surface mount 0402 package enables compact PCB layouts. Dielectric type C0G ensures minimal capacitance variation with temperature.

Tolerance of ±5% guarantees precise capacitance values. Operating temperature range from -55°C to 125°C supports harsh environments. Stacked construction enhances high frequency and low ESR performance. Packaging on paper tape supports automated assembly processes.

RoHS compliant for environmentally safe usage.

This capacitor is widely used in industrial electronics, telecommunications, signal processing, and high-frequency laboratory instrumentation where accuracy and stability are critical. Its reliable performance makes it a preferred choice for engineers designing RF circuits, tuning filters, and impedance matching networks.
