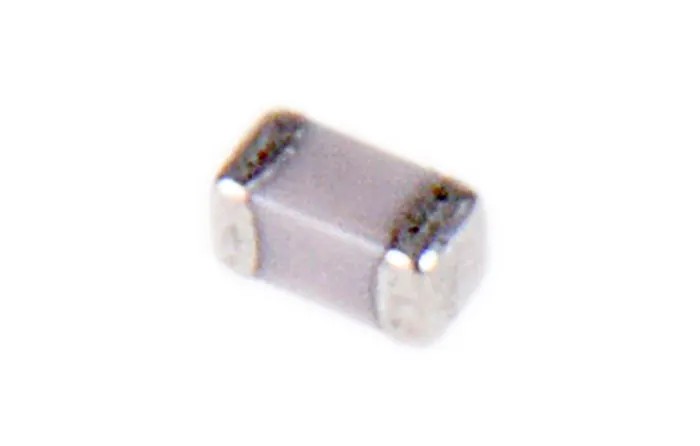

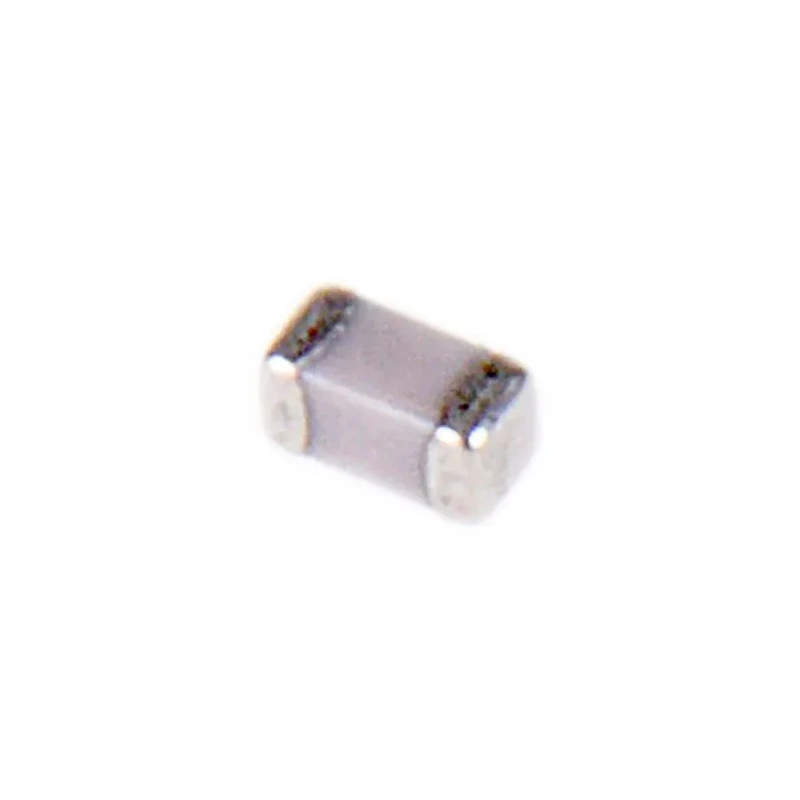

Murata 0.5 pF Multilayer Ceramic Capacitor 50V dc, 0402 Surface Mount GJM1555C1HR50WB01D

Murata GJM1555C1HR50WB01D is a precision Multilayer Ceramic Capacitor with a capacitance of 0.5 pF and rated for 50V DC operation, designed in a compact 0402 surface mount package.

This capacitor features a stacked construction and uses C0G dielectric material, which ensures excellent temperature stability and low dielectric loss, essential for high frequency and microwave applications.

With a tolerance of only 0.05 pF, this component provides high accuracy necessary for sensitive resonant, tuning, and impedance matching circuits in RF and microwave frequency bands.

The component operates reliably over a temperature range from -55°C up to 125°C, making it suitable for demanding industrial and automotive environments where stable performance is critical.

Its small 1mm x 0.5mm x 0.5mm size and surface mount terminations enable automated PCB assembly, supporting efficient manufacturing processes. The product is packaged on paper tape reels optimized for insertion by pick-and-place machines.

Murata's GJM series high Q capacitors contribute to reduced power consumption in high frequency circuits due to their low equivalent series resistance (ESR). Applications include temperature compensation for high frequency circuits such as resonant and tuning circuits where device characteristics depend on capacitance stability.

Capacitance of 0.5 pF with a tolerance of 0.05 pF. Rated voltage of 50V DC. Stacked construction and surface mount package 0402. Dielectric type C0G for temperature stability and low loss. Operating temperature from -55°C to 125°C.

Dimensions: 1 mm length x 0.5 mm width x 0.5 mm height. Surface mount termination type suitable for automated assembly. RoHS compliant ensuring compliance with environmental regulations. Packaged on paper tape reels for production efficiency.

Ideal for high-frequency temperature compensation and impedance matching circuits. Explore more Multilayer Ceramic Capacitors and precision electronic components at EnvMart for your industrial, electronics manufacturing, communication, and laboratory needs.
