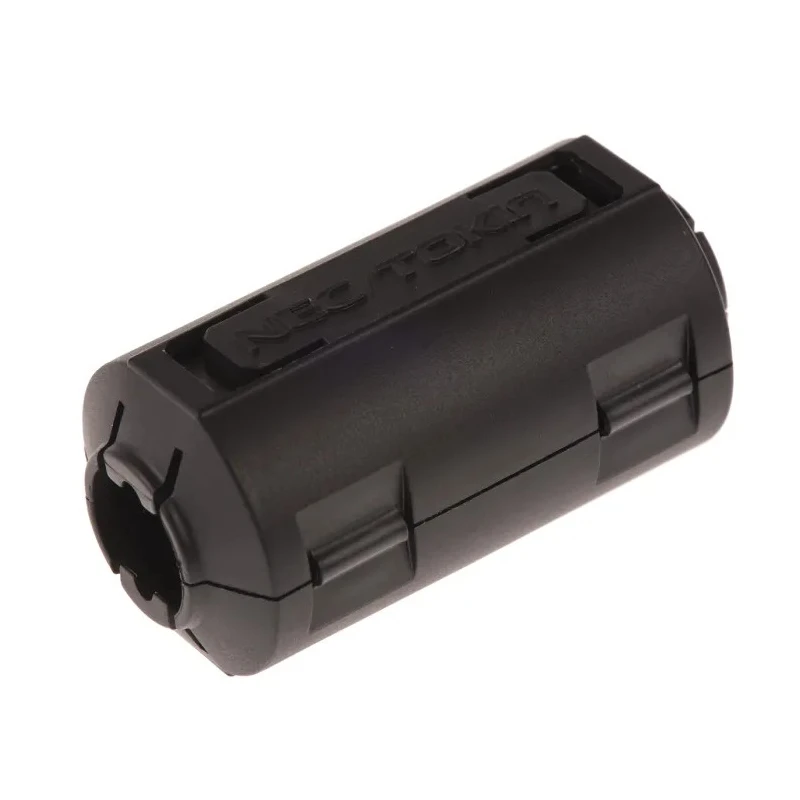

KEMET Snap Ferrite Ring Openable Diameter 9 mm Aperture 39 mm ESD-SR-160
Specifications
| Country of Origin | China |
|---|---|
| Brand | KEMET |
| Material | Ferrite |
| Model | ESD-SR-160 |
| Series | ESD-SR Snap-on Cores |
| Aperture diameter | 9mm |
| Sub Type | Snap Ferrite |
| External Width | 20.2mm |
| External Depth | 39mm |
| External Height | 20mm |
| Standards/Approvals | RoHS |
| Impedance at 100 MHz | 246Ω |
| Impedance at 25 MHz | 145Ω |
| Number of Apertures | 1 |
| Wurth Elektronik Openable, Diameter 7.5 mm Ferrite Clamp, Apertures | 1 24.6 mm 20.1 mm 36.4 mm, For General ApplicationBrand: Wurth Elektronik |
| KEMET Openable, Diameter 9 mm Ferrite Ring, Apertures | 1 38.5 mm 19.5 mm 19.5 mm, For Round CableBrand: KEMET |
| Temperature Index | 65°C |
| Flame Class | UL94V-0 |
| Comparative Tracking Index | Rank 0 |
| RS PRO Openable, Diameter 9 mm Ferrite Clamp, Apertures | 1 35 mm 18 mm 19.5 mm, For Printer, Internal & External PowerRS Stock No.: 123-2490Brand: RS PRO |
Key Features
- Made from high-quality ferrite material suitable for EMI suppression.
- Openable design for easy installation on round cables.
- Impedance of 145Ω at 25 MHz and 246Ω at 100 MHz for effective filtering.
- Compact dimensions with 39 mm external depth and 20 mm external height.
- Complies with RoHS standards and UL94V-0 flame class for safety.
- Designed for consumer electronics applications to reduce electromagnetic interference.
- Operates effectively at temperatures up to 65°C.
- Single aperture diameter measures 9 mm for cable compatibility.
Product Description
KEMET ESD-SR-160 Snap Ferrite Ring is an openable ferrite core designed for use on round cables to suppress electromagnetic interference in consumer electronics.

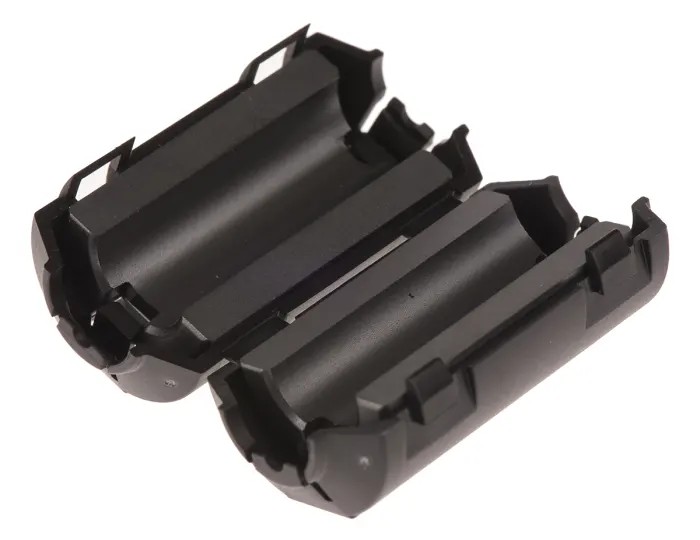

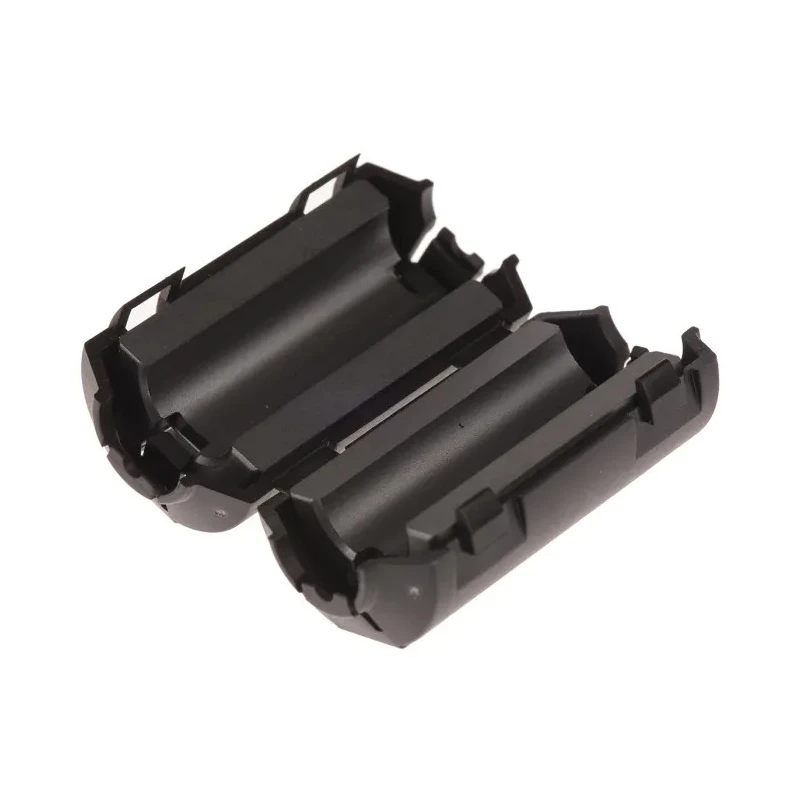

Constructed from high-quality ferrite material, this snap-on core offers convenient installation with its split construction. It features an aperture diameter of 9 mm, suitable for a range of cable sizes, and external dimensions of 39 mm depth, 20 mm height, and 20.2 mm width to fit compact spaces.
The ferrite ring provides impedance values of 145Ω at 25 MHz and 246Ω at 100 MHz, delivering effective EMI filtering. It is RoHS compliant, flame retardant with a UL94V-0 classification, and has a Comparative Tracking Index rating of Rank 0, ensuring electrical safety and durability. The product operates reliably at temperatures up to 65°C.
This component is essential for enhancing electromagnetic compatibility in various consumer electronics equipment, preventing interference and improving device performance.
KEMET's ESD-SR series is well-suited for industrial applications involving EMI filtering in electronics manufacturing, consumer device production, and quality control labs. These snap Ferrite Rings ensure precise suppression of unwanted signals in sensitive electronic assemblies.
Made from high-quality ferrite material suitable for EMI suppression. Openable design for easy installation on round cables. Impedance of 145Ω at 25 MHz and 246Ω at 100 MHz for effective filtering. Compact dimensions with 39 mm external depth and 20 mm external height.
Complies with RoHS standards and UL94V-0 flame class for safety. Designed for consumer electronics applications to reduce electromagnetic interference. Operates effectively at temperatures up to 65°C. Single aperture diameter measures 9 mm for cable compatibility.
Comparative tracking index rank 0 ensures electrical reliability. Manufactured in China with strict quality controls.
Explore more KEMET EMI filter components and ferrite solutions to optimize your electronic design and manufacturing processes with reliability and compliance. Browse our extensive catalog for additional ferrite cores, clamps, and rings suitable for industrial and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance is 145Ω at 25 MHz and 246Ω at 100 MHz, providing effective EMI filtering.
It has external dimensions of 39 mm in depth, 20 mm in height, and 20.2 mm in width.
The KEMET ESD-SR-160 operates effectively at temperatures up to 65°C.
The aperture diameter measures 9 mm, making it suitable for a range of cable sizes.
Yes, it complies with RoHS standards and has a UL94V-0 flame class rating for safety.
It is constructed from high-quality ferrite material, suitable for EMI suppression.
It is designed for consumer electronics applications to reduce electromagnetic interference.
It features an openable design that allows for easy installation on round cables.
The Comparative Tracking Index rating is Rank 0, ensuring electrical reliability.
This model is part of the ESD-SR Snap-on Cores series.
It is manufactured in China with strict quality controls.
This ferrite ring has a single aperture for cable compatibility.
