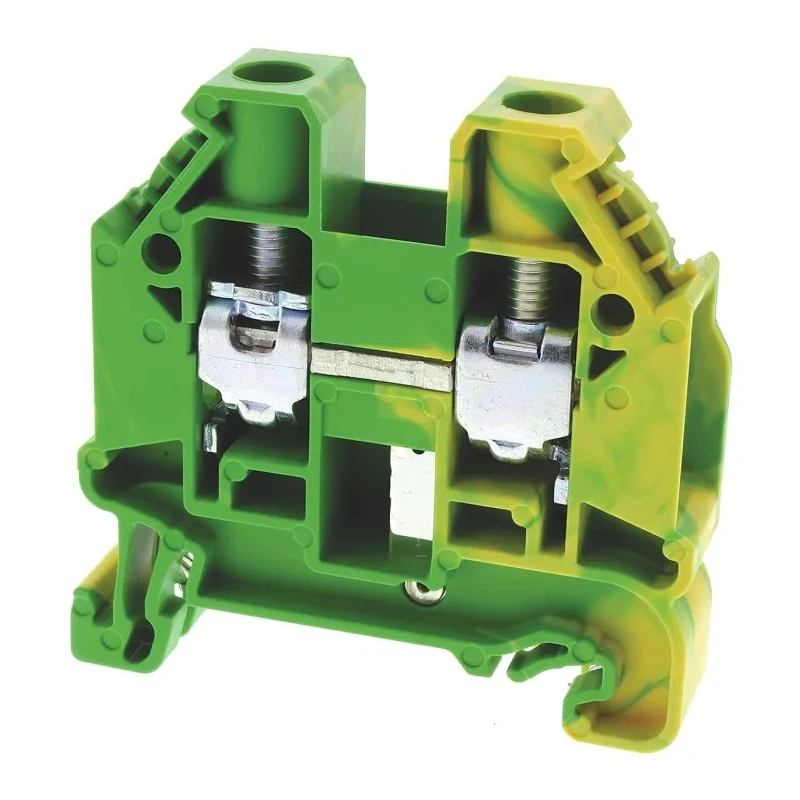

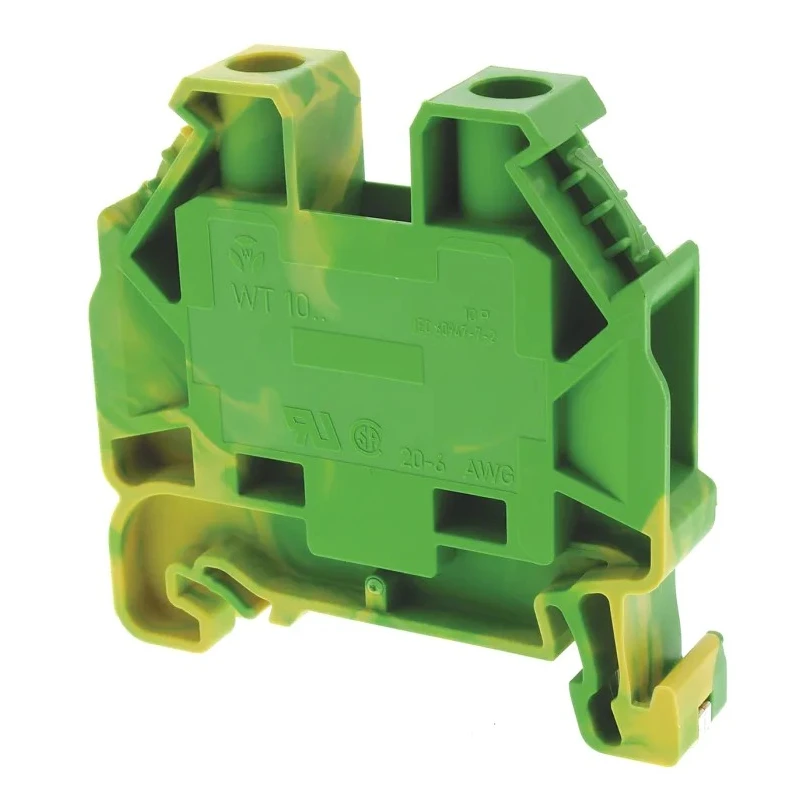

Wieland WT 10 PE Series Earth Terminal Block Yellow Green 20AWG to 6AWG 2-Position 1-Level Screw ATEX 58.510.9055.0

Free Delivery in India | Lowest Global Shipping Charges

Wieland WT 10 PE Series Earth Terminal Block Yellow Green 20AWG to 6AWG 2-Position 1-Level Screw ATEX 58.510.9055.0

Name: Wieland WT 10 PE Series Earth Terminal Block Yellow Green 20AWG to 6AWG 2-Position 1-Level Screw ATEX 58.510.9055.0
Brand: Wieland
SKU: 375368
Price: 20.22 USD
Availability: InStock



Category Earth Terminal Block Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	1kV
Brand	Wieland
Colour	Yellow, Green
Series	WT 10 PE
Termination Type	Screw
Number of Levels	1
Number of Positions	2
Minimum Operating Temperature	120°C
Maximum Current	76A/16 mm²
Pitch	10mm
Nominal Cross Section	10 mm²
Hazardous Area Certification	ATEX
Standards/Approvals	CSA, VDE, GL
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	6AWG
Cable CSA	20, 6AWG
Connection capacity	2 wires, equal size 0.5 - 6 mm²

Key Features

Constructed for 1-level DIN rail mounting with 2 positions.
Compatible with wire sizes from 20 AWG to 6 AWG (0.5 - 6 mm² capacity).
Designed for a nominal cross section of 10 mm² and maximum current 76A at 16 mm² cross section.
Colour coded yellow and green for earth identification.
Supports connection of two equal size wires per position.
Operating temperature range from -120°C to 120°C for demanding environments.
Conforms to CSA, VDE, and GL standards ensuring quality and safety.

Product Description

Wieland 58.510.9055.0 WT 10 PE Series Earth Terminal Block is a precision-engineered electrical connection solution designed for DIN rail mounting in industrial, automation, and electrical installation applications. This earth terminal block supports a wide range of wire sizes from 20 AWG up to 6 AWG (0.5 to 6 mm² wire cross sectional area), allowing versatile connection capacity for grounding circuits. It features a robust screw termination system to ensure a secure and low-resistance earth connection.

The terminal block is designed for one level with two positions, enabling tidy and organized wiring in control panels or distribution boards. Its yellow and green dual-colour coding clearly marks earth terminals to enhance installation safety and compliance. Rated for 1 kV nominal voltage and a high maximum current rating of 76 amps at 16 mm², this block meets demanding electrical performance requirements.

Built to operate reliably within a temperature range from -120°C to 120°C, it suits a variety of industrial environments including harsh and hazardous locations. It holds the ATEX hazardous area certification, making it suitable for use where explosion protection is mandated. This product conforms to established standards including CSA, VDE, and GL to guarantee compliance and durability.

Constructed for 1-level DIN rail mounting with 2 positions. Supports wire sizes from 20 AWG to 6 AWG. Rated voltage up to 1 kV ensuring safe high-voltage operation. Maximum current rating of 76A with a nominal cross section of 10 mm².

Yellow and green colour coding for earth terminal identification. Screw type termination provides reliable electrical connections. Operating temperature range from -120°C to 120°C. Certified for hazardous areas under ATEX regulations.

Compliance with CSA, VDE and GL standards.

This Earth Terminal Block is ideal for electrical panels in industrial automation, manufacturing facilities, power distribution, and control gear systems. Its durable construction combined with certified safety standards make it well suited for professional use across diverse industrial sectors. Browse the full range of DIN rail terminal blocks in the Electronics & Electricals category at EnvMart for comprehensive wiring solutions.
