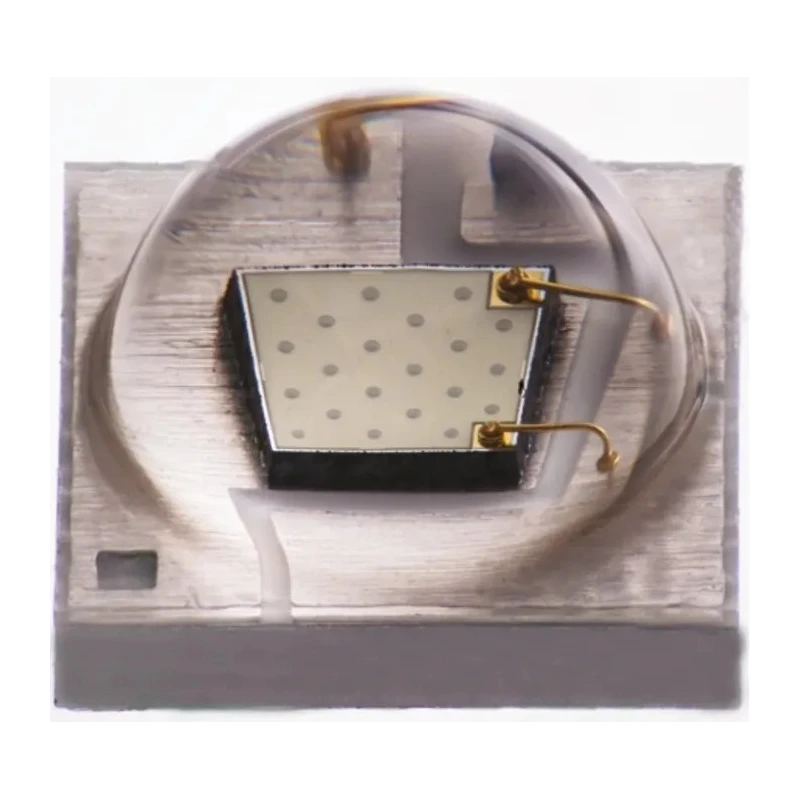

Cree LED 2.6 V Green LED 3535 Surface XLamp XP-E XPEBGR-L1-0000-00E01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | XPEBGR-L1-0000-00E01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | XLamp XP-E |
| Maximum forward current | 1000mA |
| Viewing angle | 130 ° |
| Package Type | 3535 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 535nm |
| Forward Voltage | 2.6V |
| Number of Pins | 2 |
| Lens Dimensions | 3.45 x 3.45 mm |
| Lens Shape | Square |
| LED Luminous Flux | 114 lm |
| Low thermal resistance | 5°C/W |
| Wide viewing angle | 110° to 135° |
| Drive current | 1A (maximum) |
| Cree LED 3.5 V White LED 3535 Surface XLamp XP-C XPCWHT-L1-0000-00C01Brand | Cree LED |
Key Features
- This LED features a 2.6 V forward voltage providing efficient power consumption.
- It emits green light with a luminous flux of 114 lm for bright illumination.
- The 3535 package type with tape and reel packaging supports surface mounting and easy assembly.
- It supports a maximum forward current of 1000 mA ensuring high brightness output.
- The lens is square-shaped with clear finish measuring 3.45 x 3.45 mm for focused light direction.
- The viewing angle of 130° offers wide coverage in lighting applications.
- This RoHS compliant LED has a dominant wavelength of 535 nm ideal for green light emission.
- Low thermal resistance of 5°C/W enhances heat dissipation for reliable performance.
Product Description
The Cree LED model XPEBGR-L1-0000-00E01 is a 2.6 V green LED in a 3535 surface mount package from the XLamp XP-E series, designed for high performance lighting applications in electronics and power connectors.
This LED provides precise optical control through its single die source technology, offering a luminous flux of 114 lumens with efficient energy use. It supports a maximum forward current of 1000 mA and has a forward voltage rating of 2.6 V. The square shaped lens with transparent clear finish measures 3.45 mm by 3.45 mm, delivering a wide viewing angle of approximately 130° suitable for broad illumination coverage.
The device is surface mount compatible and is packaged in tape & reel form factor to facilitate automated assembly processes. The XLamp XP-E series is known for delivering smooth upgrade paths with enhanced lumen output and high efficacy, making this LED ideal for retrofit lamps, architectural lighting, display panels, and automotive lighting applications.
Featuring low thermal resistance of 5°C/W, this LED ensures efficient heat management under high current operation, thereby prolonging product life and stability. It complies with RoHS standards, affirming its environmental compatibility.
This component is produced in China, reflecting adherence to rigorous manufacturing guidelines for electronic parts. The dominant wavelength of 535 nm renders pure green light perfect for specialty lighting requirements.
High luminous efficiency for bright green light emission. Wide viewing angle for diverse lighting needs. Compact 3535 package size for versatile mounting. RoHS compliant to meet environmental safety standards. Efficient thermal management enhancing reliability.
Suitable for architectural, automotive, and display lighting. Tape and reel packaging supports automated installation. Explore more high-quality LED lighting components from Cree LED and other top brands available at EnvMart, your trusted source for electronics and electrical components.
