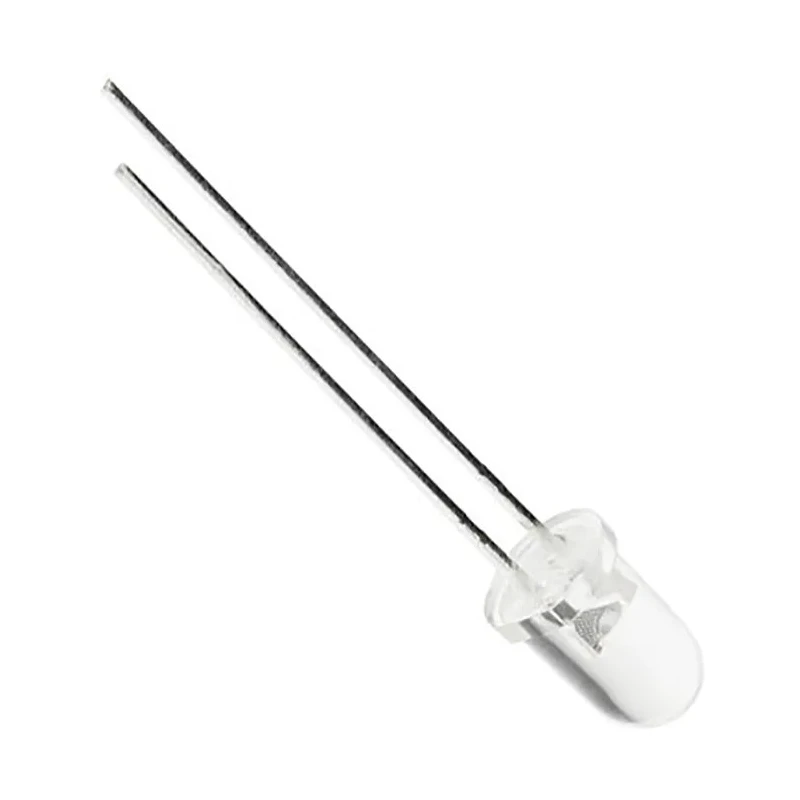

Cree LED 5 mm Through Hole White LED 4 V 120 mW Forward Power Dissipation Round Lens C513A-WSN-CX0Z0231
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | C513A-WSN-CX0Z0231 |
| Packaging | Ammo |
| Mount Type | Through Hole |
| Series | C513A-WSS/WSN |
| Number Of Leds | 1 |
| Maximum forward current | 30mA |
| Viewing angle | 55 ° |
| Package Type | 5 mm |
| Standards/Approvals | RoHS |
| Colour Temperature | 9000k |
| LED Colour | White |
| Forward Voltage | 4V |
| Number of Pins | 2 |
| LED Luminosity | 12 cd |
| Maximum Power Dissipation | 120mW |
| Lens Dimensions | 5 (Dia.) x 7.6 mm |
| Lens Shape | Round |
| Colour Rendering Index CRI | 75% |
| Cree4 V White LED 5mm Through Hole, C513A-WSN-CW0Z0231Brand | Cree |
Key Features
- The LED operates at a forward voltage of 4 V with a maximum forward current of 30 mA.
- It features a round clear lens shape with dimensions of 5 mm diameter and 7.6 mm length.
- Maximum power dissipation is rated at 120 mW, ensuring stable and reliable performance.
- The LED provides a luminous intensity of 12 cd with a viewing angle of 55 degrees.
- The color temperature is 9000 K, producing bright white light with a CRI of 75%.
- This LED is RoHS compliant and is suitable for various electronic component applications.
- It is a single LED device with through hole mounting and two pins for connection.
- Manufactured in China, it offers high temperature and moisture resistance due to its optical grade epoxy resin construction.
Product Description
Cree LED C513A-WSN-CX0Z0231 is a 5 mm through hole white LED designed with a forward voltage of 4 V and maximum power dissipation of 120 mW. The device offers bright white illumination with a color temperature of 9000 K and a color rendering index (CRI) of 75%, making it suitable for applications demanding high visibility and accurate color representation.
The LED features a round clear lens with dimensions of 5 mm diameter by 7.6 mm length, providing a viewing angle of 55 degrees for focused light distribution. With a maximum forward current of 30 mA, it reliably produces a luminous intensity of 12 cd, ensuring strong light output for outdoor and indoor applications.
Constructed using an optical grade epoxy resin, this LED provides excellent moisture and temperature resistance, contributing to long-term durability and stable light output. The through hole mounting with two pins allows easy installation on printed circuit boards and other electronic assemblies.
This LED is RoHS compliant, adhering to environmental standards, and is manufactured in China under strict quality control. Its robust design and reliable performance make it ideal for use in light strips, channel letters, retail display lighting, instrument panels, and other commercial electronic lighting systems.
With its stable light output and high lumen efficiency, the Cree C513A-WSN-CX0Z0231 LED meets the demands of industrial, laboratory, commercial, and manufacturing environments. It is a dependable option for critical lighting applications where consistent illumination is required over extended periods.
The LED has a maximum forward current rating of 30 mA to ensure safe operation. It offers a clear, round lens with high resistance to temperature and moisture. The device outputs bright white light at a wavelength corresponding to 9000 K color temperature.
Its mounting style is through hole with 2 pins for secure and straightforward PCB assembly. The luminous intensity of 12 cd provides excellent visibility even in direct sunlight. Explore more in the Cree LED category at EnvMart for compatible lighting components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Cree C513A-WSN-CX0Z0231 LED is 30 mA.
This LED operates at a forward voltage of 4 V.
The luminous intensity of the Cree C513A-WSN-CX0Z0231 is 12 cd.
The LED has a color temperature of 9000 K, producing bright white light.
It features a viewing angle of 55 degrees.
The lens dimensions are 5 mm in diameter and 7.6 mm in length.
This model uses through hole mounting with two pins for connection.
Yes, the Cree C513A-WSN-CX0Z0231 is RoHS compliant.
The maximum power dissipation for this LED is rated at 120 mW.
The color rendering index (CRI) of this LED is 75%.
This LED is manufactured in China.
The Cree C513A-WSN-CX0Z0231 is suitable for light strips, channel letters, retail display lighting, and instrument panels.
