Honeywell Technologies GLD Series Roller Lever Limit Switch, SPDT, IP66, Fibreglass Reinforced Thermoplastic GLDA01A1A

Free Delivery in India | Lowest Global Shipping Charges

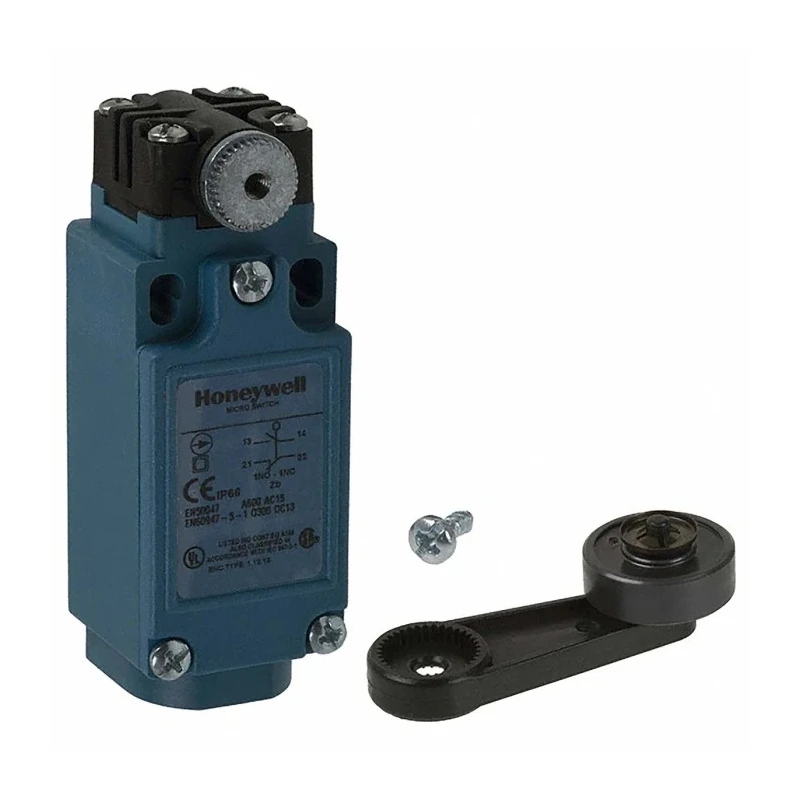

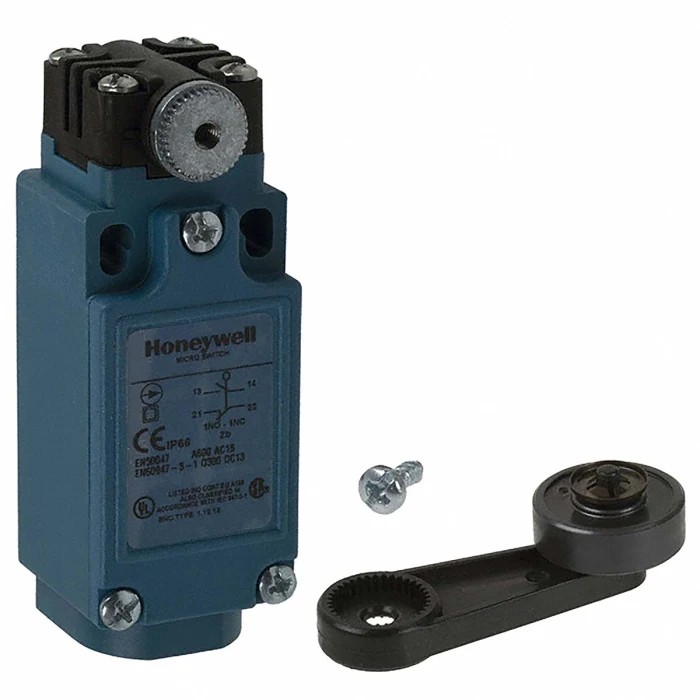

Honeywell Technologies GLD Series Roller Lever Limit Switch, SPDT, IP66, Fibreglass Reinforced Thermoplastic GLDA01A1A

Name: Honeywell Technologies GLD Series Roller Lever Limit Switch, SPDT, IP66, Fibreglass Reinforced Thermoplastic GLDA01A1A
Brand: Honeywell
SKU: 374792
Price: 192.65 USD
Availability: InStock



Category Limit Switch Brand Honeywell Condition New

Specifications

Country of Origin	India
Brand	Honeywell
Length	68.5mm
Model	GLDA01A1A
Depth	26.35mm
IP Rating	IP66
Width	30.5mm
Housing Material	Fibreglass Reinforced Thermoplastic
Series	GLD
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Actuator Type	Roller Lever
Contact Type	Snap Action
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	Screw
Standards/Approvals	RoHS, IEC, EN, CSA, CE, CCC, UL
Operating Force	0.12Nm
Mechanical Life	10000000Cycles
Switching DC Voltage	250V dc
Switching AC Voltage	240V ac
Conduit Entry	1/2 in to 14 NPT

Key Features

Equipped with SPDT snap-action contacts for reliable on/off signaling up to 10A.
Features a roller lever actuator delivering precise mechanical actuation with 0.12Nm operating force.
Fibreglass reinforced thermoplastic enclosure provides chemical and impact resistance.
Wide temperature range operation from -40°C to 85°C for harsh environment suitability.
Designed for high mechanical endurance with 10 million cycles rating.
Compact dimensions of 68.5mm length, 30.5mm width, and 26.35mm depth enable space-constrained installations.
Accepts 1/2 inch to 14 NPT conduit entry for standard industrial wiring integration.
Compliance with international safety and performance standards including IEC, EN, CSA, CE, CCC, and UL.

Product Description

Honeywell Technologies GLDA01A1A Roller Lever Limit Switch is a compact and industrial-grade control device designed for automation and mechanical position sensing applications. The limit switch features SPDT snap-action electrical contacts capable of switching currents up to 10A at AC voltages up to 240V and DC voltages up to 250V. Its fibreglass reinforced thermoplastic housing offers chemical and impact resistance, ideal for demanding industrial environments.

The switch's roller lever actuator ensures precise mechanical engagement with a low operating force of 0.12Nm, supporting reliable and repeatable actuation. The device operates efficiently over a wide temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions encountered in manufacturing, material handling, packaging, and conveyor control systems.

Its compact size, with dimensions of 68.5mm length, 30.5mm width, and 26.35mm depth, allows installation in tight spaces. The IP66 ingress protection rating ensures dust-tight performance and resistance to powerful water jets, suitable for washdown applications.

The GLDA01A1A supports conduit wiring with a 1/2 inch to 14 NPT conduit entry fitting for secure electrical connections consistent with industrial standards. Mechanical life endurance is rated at 10 million cycles, reducing maintenance needs and downtime.

Certified to multiple international standards including RoHS, IEC, EN, CSA, CE, CCC, and UL, this limit switch is dependable for regulated industrial automation environments. Typical applications include end-of-travel sensing on conveyor lines, position feedback on presses and stamping machines, safety interlocks in production cells, and limit detection on packaging and material-handling equipment.

SPDT snap-action contacts switching up to 10A provide clear on/off signalling. Roller lever actuator delivers precise mechanical actuation with 0.12Nm force. Fibreglass reinforced thermoplastic enclosure ensures chemical and impact resistance.

Wide operating temperature range from -40°C to 85°C enables harsh-environment operation. Mechanical endurance rated to 10 million cycles reduces maintenance frequency. IP66 ingress protection allows use in dusty and high-pressure washdown areas.

Compact dimensions enable installation in space-constrained areas. 1/2 inch to 14 NPT conduit entry supports standard industrial wiring. Certified for safety and performance under IEC, EN, CSA, CE, CCC, and UL standards.

Explore the Honeywell GLD Series Limit Switch range at EnvMart for reliable industrial automation components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The limit switch has a maximum switching current of 10A.

This model has an IP66 ingress protection rating, making it dust-tight and resistant to powerful water jets.

It operates efficiently over a wide temperature range from -40°C to 85°C.

It features a roller lever actuator for precise mechanical actuation.

The housing is made of fibreglass reinforced thermoplastic, providing chemical and impact resistance.

The mechanical life of this switch is rated for 10 million cycles, reducing maintenance frequency.

The dimensions are 68.5mm in length, 30.5mm in width, and 26.35mm in depth.

It accepts conduit entry from 1/2 inch to 14 NPT for standard industrial wiring integration.

It complies with multiple international standards including RoHS, IEC, EN, CSA, CE, CCC, and UL.

The operating force required for this switch is 0.12Nm.

The contact configuration is SPDT (Single Pole Double Throw) with snap-action contacts.

It is suitable for applications such as end-of-travel sensing on conveyor lines, position feedback on presses, and safety interlocks in production cells.
