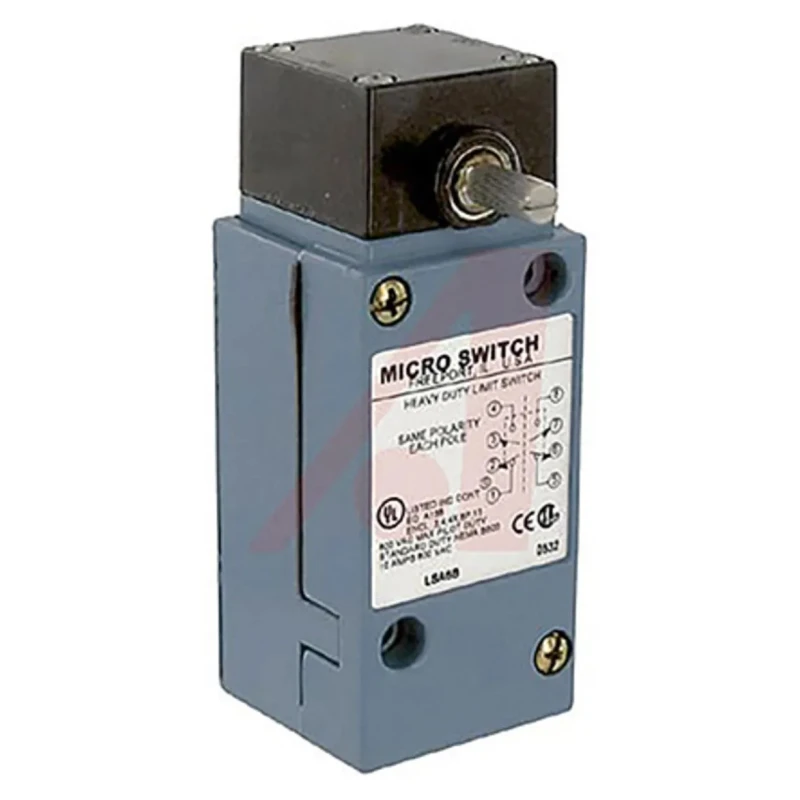

Honeywell Technologies HDLS Series Side Rotary Limit Switch, DPDT, 10A, IP65/IP66/IP67, Die Cast Zinc Epoxy Coated LSA6B

Honeywell Technologies LSA6B is a side rotary limit switch from the HDLS Series designed for industrial automation requiring precise rotary motion detection. It includes double pole double throw (DPDT) snap-action contacts providing reliable switching in electrical circuits with robust current ratings of 10A, able to handle AC voltages up to 600V and DC voltages up to 250V. The device’s housing is die cast zinc with epoxy coating, rated IP65, IP66, and IP67 to protect against dust and water jets or temporary immersion, making it suitable for demanding environments.

This limit switch operates within a broad temperature range from -12°C minimum up to 121°C maximum, suitable for elevated temperature applications. The mechanical life exceeds 50 million cycles, ensuring long-term operational reliability and reduced maintenance. The actuator requires 0.45 Nm of torque for activation, supporting precise response within automated systems.

The switch features a conduit entry of 1/2 inch to 14 NPT, compatible with standard industrial conduit fittings for easy wiring access. Mounting orientation is side-mounted rotary to match installation requirements in various industrial setups.

Applications for the LSA6B switch include precise position detection on conveyor lines, end-of-travel sensing on valve assemblies, motor control panel safety interlocks, packaging machinery feedback loops, and use on heavy-duty industrial machine tools requiring robust rotary sensing.

Honeywell HDLS Series switches comply with multiple standards and approvals such as CCC, CE, CSA, EN, IEC, RoHS, and UL, underlining their suitability and safety for worldwide industrial use. Note, this product does not have a hazardous area certification.

DPDT snap-action contacts provide reliable switching. Die cast zinc epoxy coated housing rated IP65, IP66, IP67 for environmental protection. 10A switching current with AC 600V and DC 250V voltage ratings. Mechanical life rated for 50 million cycles ensures durability.

Operating temperature range from -12°C to 121°C accommodates harsh conditions. Conduit entry supports 1/2 inch to 14 NPT industrial fittings. Operating force of 0.45 Nm supports precise actuation. Explore more Honeywell Limit Switches and other automation components on EnvMart for high reliability, quality, and performance in critical industrial applications.
