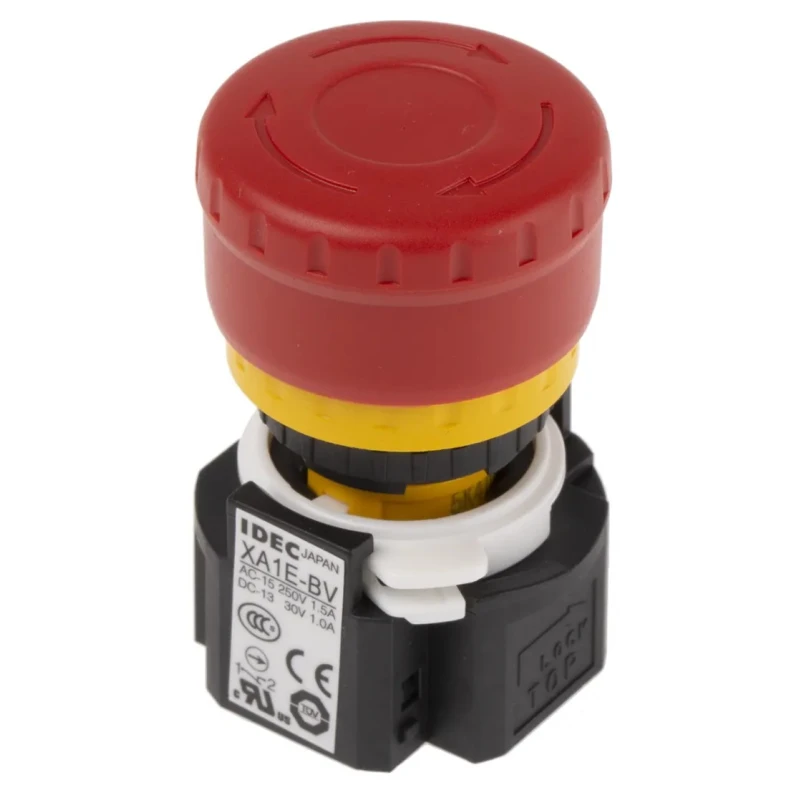

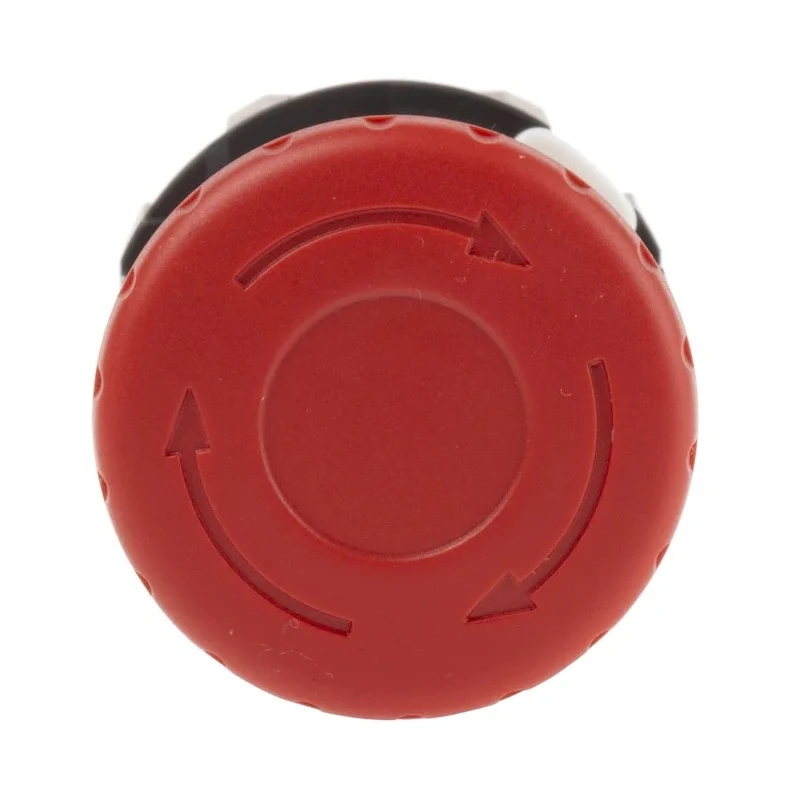

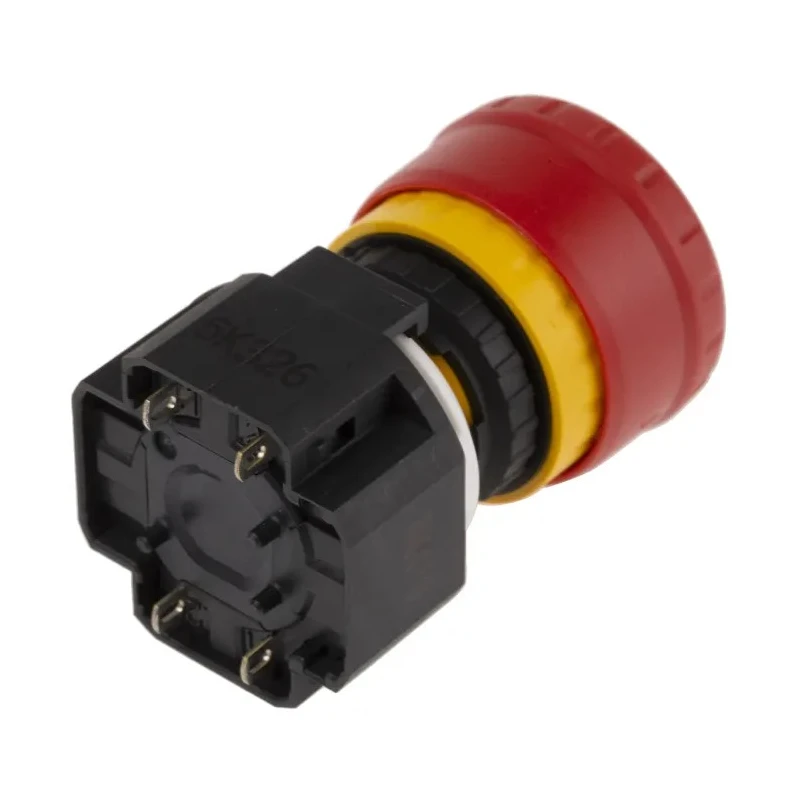

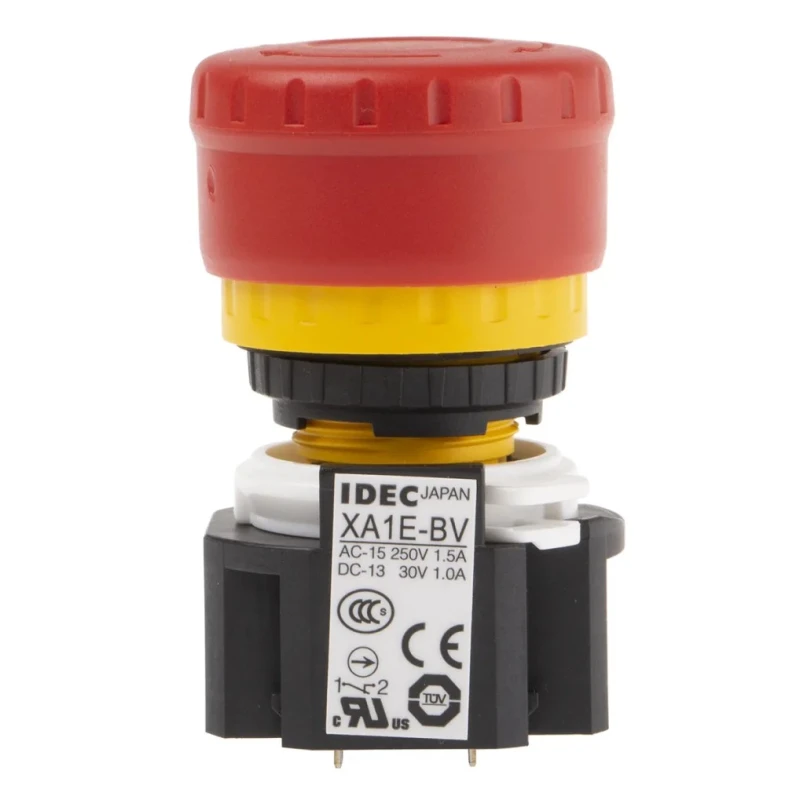

Idec XA Series Emergency Stop Push Button Panel Mount 16 mm Cutout SPDT IP65 XA1E-BV302R
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | XA1E-BV302R |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Series | XA |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Head Style | Mushroom Head |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA |
| Contact DC Voltage | 250V dc |
| Contact AC Voltage | 250V ac |
| Cutout Diameter | 16mm |
| Safety Contacts | 1,2 form B (SPST-NC) |
Key Features
- Panel mount design with 16 mm cutout diameter ensures secure installation.
- SPDT (1,2 form B - SPST-NC) contacts provide safe and reliable switching.
- Mushroom head style allows quick and easy emergency stop activation.
- IP65 rated for dust tight and water resistant operation in industrial environments.
- Terminal type uses solder connections for electrical wiring.
- Rated for 250V AC and DC contact voltage for versatile use.
- On-Off switch configuration with safe break action to open normally closed contacts in emergency.
- Complies with UL and CSA standards for safety and performance.
Product Description
The Idec XA1E-BV302R is a high-quality Emergency Stop Push Button designed for panel mounting with a precise 16 mm cutout. It features a safety-compliant SPDT contact configuration suitable for industrial control applications requiring reliable emergency shutdown functionality.
This switch incorporates IDEC's XA series "Safe break action" technology, ensuring the normally closed contacts open safely if the contact block separates from the operator. The mushroom head design facilitates quick activation, and the button can be simply reset by pulling or twisting the head, enabling fast recovery after emergency events.
Its robust construction supports IP65 ingress protection, making it dust tight and resistant to water jets, suitable for harsh industrial, manufacturing, and automation environments. Rated for 250V AC/DC contact voltage, it accommodates a wide range of control circuits.
The switch uses solder-type terminals for secure electrical connections and meets essential international safety standards such as UL and CSA. Manufactured in Japan, it guarantees consistent quality and durability.
The product is ideal for industrial automation controls, safety interlocking, emergency shutdown systems, and machinery requiring clear and accessible emergency stop solutions. Panel mount push button with 16 mm cutout diameter.
SPDT contact configuration with 1,2 form B (SPST-NC) safety contacts. Mushroom head style for fast push-to-stop operation. IP65 rated enclosure for protection against dust and water. Solder terminal type for wiring. Rated for 250V AC/DC contact voltage.
Complies with UL and CSA safety standards. Safe break action mechanism enhances operator safety. Simple reset by pulling or twisting the button head. Manufactured in Japan for high-quality assurance. Explore more high-performance Emergency Stop Push Buttons and electrical safety components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Idec XA1E-BV302R features a SPDT (Single Pole Double Throw) contact configuration with 1,2 form B (SPST-NC) safety contacts.
This model has an IP65 rating, making it dust tight and resistant to water jets, suitable for industrial environments.
The cutout diameter required for panel mounting the Idec XA1E-BV302R is 16 mm.
The contacts of this unit are rated for 250V AC and 250V DC, allowing for versatile use in various control circuits.
It uses solder-type terminals for secure electrical connections.
The push button features a mushroom head style, which allows for quick and easy activation in emergency situations.
The Idec XA1E-BV302R complies with UL and CSA safety standards, ensuring it meets essential performance and safety requirements.
The safe break action mechanism ensures that the normally closed contacts open safely if the contact block separates from the operator, enhancing operator safety.
Yes, the button can be reset by pulling or twisting the head, allowing for fast recovery after an emergency event.
It is ideal for industrial automation controls, safety interlocking, emergency shutdown systems, and machinery requiring accessible emergency stop solutions.
This product is manufactured in Japan, ensuring consistent quality and performance standards.
The switch configuration of the Idec XA1E-BV302R is On-Off, designed for reliable emergency stop functionality.
