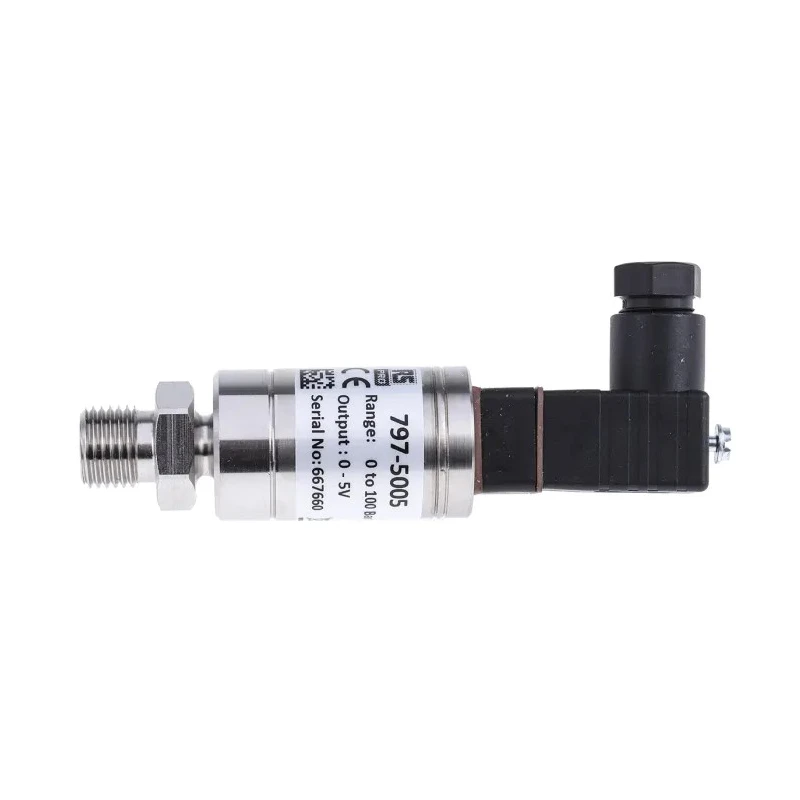

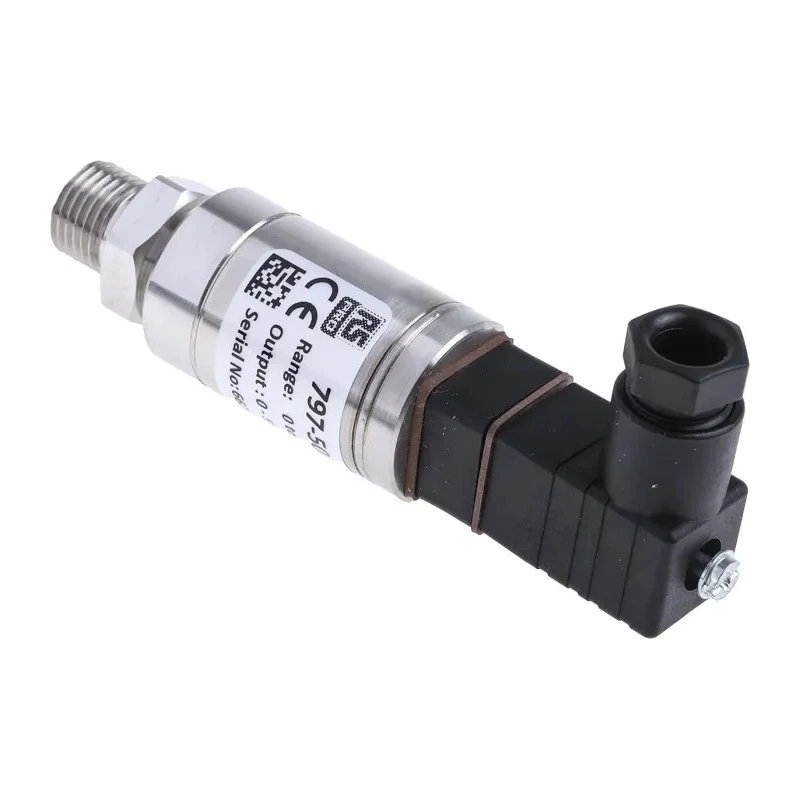

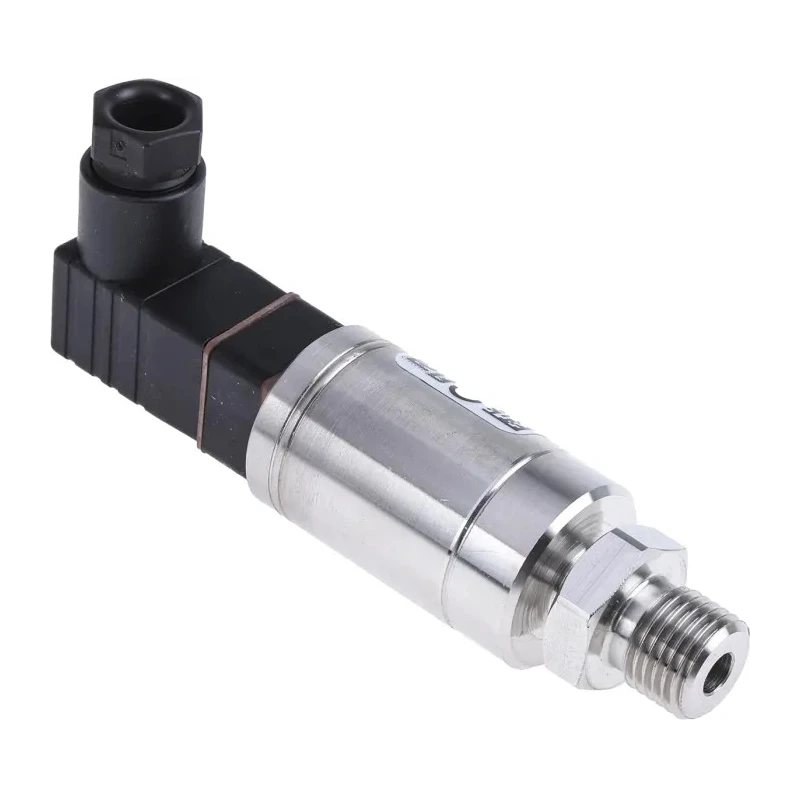

RS PRO Industrial Pressure Sensor Voltage Output 0 to 100 bar Gauge Reading Threaded Mount Stainless Steel Housing 797-5005

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Industrial Pressure Sensor Voltage Output 0 to 100 bar Gauge Reading Threaded Mount Stainless Steel Housing 797-5005

Name: RS PRO Industrial Pressure Sensor Voltage Output 0 to 100 bar Gauge Reading Threaded Mount Stainless Steel Housing 797-5005
Brand: RS PRO
SKU: 372547
Price: 347.01 USD
Availability: InStock



Category Pressure Sensor Brand RS PRO Condition New

Specifications

Country of Origin	Bulgaria
Accuracy	±0.25 %
Brand	RS PRO
Model	797-5005
IP Rating	IP65
Mount Type	Threaded
Housing Material	Stainless Steel
Output type	Voltage
Maximum Operating Temperature	135°C
Minimum Operating Temperature	-20°C
Terminal type	DIN
Standards/Approvals	CE EMC directive EN 61326-1:2013
Maximum Pressure Measurement	100bar
Minimum Pressure Measurement	0bar
Maximum Supply Voltage	32V dc
Minimum Supply Voltage	9V
Pressure Reading Type	Gauge
Media Measured	Air, Gas, Hydraulic Fluid, Liquid, Water
Standards/Approvals CE EMC directive EN 61326-1	2013
RS PRO Pressure Sensor, 0bar Min, 100bar Max, Analogue OutputBrand	RS PRO

Key Features

Features a piezo-resistive thick film ceramic sensor ensuring excellent media compatibility.
Compact, rugged design with stainless steel 316L housing and Viton O ring seals.
Threaded BSP 1/4 Mount with M12 4-pin connector for secure installation.
Operating temperature range from -20°C to 135°C supports diverse industrial environments.
High accuracy of ±0.25% for precise measurement.
IP65 rated for protection against dust and low-pressure water jets.
Suitable for industrial automation, process control, and temperature testing facilities.
Compact weight of approximately 100 grams facilitates flexible installation.

Product Description

RS PRO 797-5005 Pressure Sensor is an advanced industrial gauge pressure sensor delivering voltage output for pressure measurement from 0 to 100 bar. It is designed with a stainless steel 316L housing and utilizes a piezo-resistive thick film ceramic sensor that ensures excellent media compatibility for air, gas, hydraulic fluid, liquid, and water. The threaded BSP 1/4 mount and M12 4-pin connector allow for stable, flexible installation in process control and automation systems.

The sensor operates reliably within a temperature range from -20°C to 135°C and provides a high accuracy of ±0.25%, making it suitable for precise industrial measurements. Its compact and rugged design is IP65 rated, guaranteeing protection against dust ingress and water jets, and it weighs approximately 100 grams, enabling versatile positioning.

Additional features include Viton O ring seals, ceramic Al2O3 diaphragm with 96% purity, and insulation resistance greater than 50M Ohms at 50 Vdc. Tested extensively, the sensor meets CE EMC directive EN 61326-1:2013 compliance, ensuring safe operation in industrial environments.

This sensor excels in applications such as temperature testing facilities, automation controls, and industrial pressure monitoring systems, enhancing control accuracy and operational efficiency.

Piezo-resistive thick film ceramic sensor technology. Compact, rugged stainless steel 316L housing with Viton O ring seals. Voltage output for easy integration with control systems. BSP 1/4 threaded mount with M12 4-pin connector.

Operating temperature range from -20°C to 135°C. High accuracy of ±0.25% for reliable measurements. IP65 rated for dust and water protection. Lightweight design weighing 100 g. CE compliant as per EMC directive EN 61326-1:2013.
