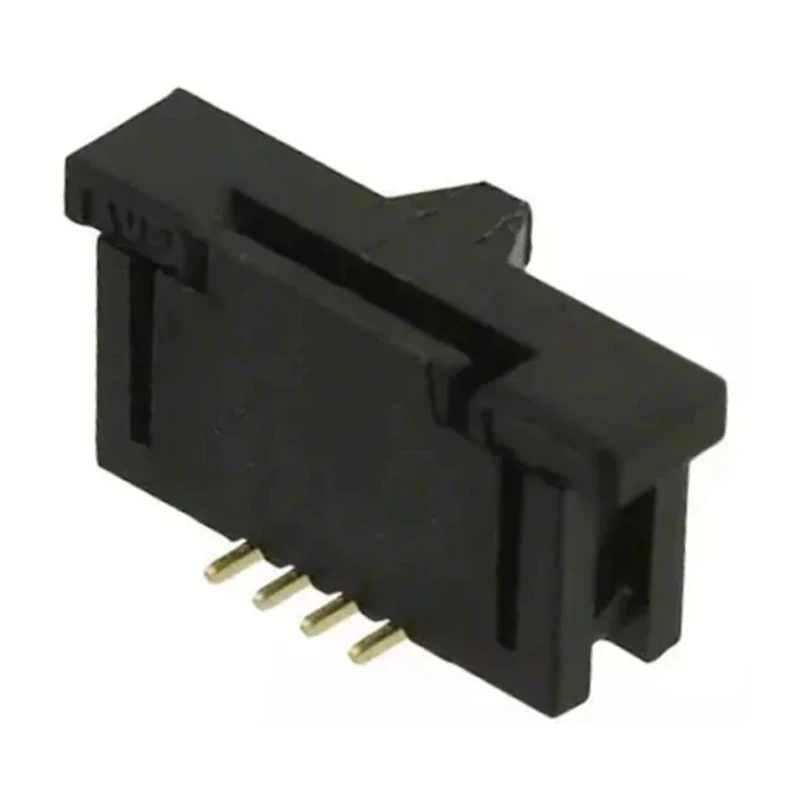

TE Connectivity FPC 1 mm Pitch 4 Way Straight Female FPC Connector, Solder 1734248-4

TE Connectivity 1734248-4 FPC Connector is a high-quality Female FPC Connector featuring a 1 mm pitch and 4 contact positions designed for surface mount soldering applications. This connector offers a compact and reliable solution for routing signals on PCBs where space constraints are critical.

The connector is engineered with phosphor bronze contacts plated with gold, providing excellent electrical performance and durability. It features a Zero Insertion Force (ZIF) slide lock actuator which secures the flexible printed circuit with minimal wear, thereby extending the connector's mating cycle life and improving retention under vibration.

Designed for operation between -20°C and 85°C and capable of carrying 1 Amp current at 125 volts DC, this connector suits a wide range of electronic devices including handheld scanners, set-top boxes, business and industrial equipment, as well as medical devices. The polyamide housing offers mechanical robustness and electrical insulation.

Solder tabs are integrated to enhance connector retention on PCB assemblies, eliminating the need for extra application tooling. The top contact configuration and straight orientation make it suitable for various PCB layouts and assembly processes.

1 mm pitch with 4 contacts for precise connections. Phosphor bronze contacts plated in gold for high conductivity. Zero Insertion Force slide lock actuator for easy and secure cable insertion. Operating temperature range from -20°C to 85°C.

Rated for 1A current, 125V DC voltage. Polyamide housing for durability and insulation. Surface mount termination with solder tabs to increase retention. Top contact position and straight orientation. Suitable for industrial, medical, and consumer electronic applications.

Improved mating cycles and retention in vibration environments.

This connector is part of the FPC series by TE Connectivity, known for high reliability and performance in demanding electronic environments. It is commonly used in applications ranging from consumer electronics to industrial control systems. Browse the category for more connectors and accessories by TE Connectivity on EnvMart.
