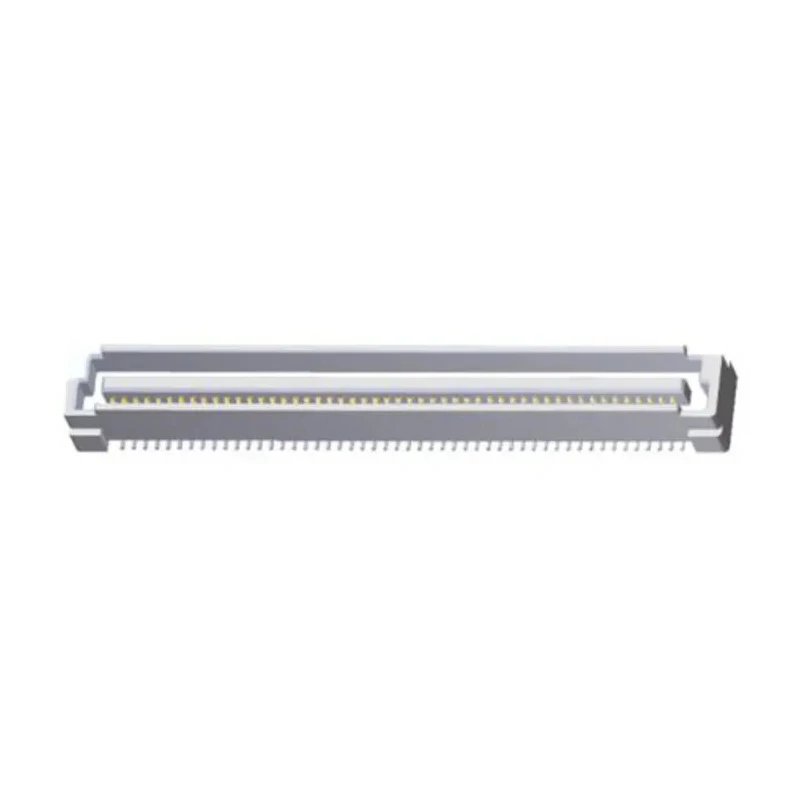

TE Connectivity Free Height Series Straight Surface PCB Header, 100 Contacts, 0.8 mm Pitch, 2 Rows, Shrouded 1-5177986-4
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- This PCB header employs a compact, high-density 0.8 mm pitch design suitable for parallel board stacking applications.
- The connector features a bellows type spring contact for reliable electrical connection and strong signal integrity.
- Polarized housings and locating bosses ensure accurate mating and precise PCB placement.
- Made with copper alloy contacts plated in gold for enhanced durability and conductivity.
- Operates at a voltage rating of 100V and current of 500mA, supporting a temperature range from -65°C to 105°C.
- Shrouded design prevents mis-mating and protects the connector contacts.
- Surface mount termination type enables efficient soldering to PCBs.
- Ideal for high-end computer, telecommunications, industrial, military, and aerospace parallel stacked PCB applications.
Product Description
TE Connectivity 1-5177986-4 Free Height Series Straight Surface PCB Header is a reliable, compact connector designed for parallel stacking of printed circuit boards with 100 contacts arranged in 2 rows at 0.8 mm pitch. Operating at 100V and carrying 500mA, this shrouded male connector features copper alloy gold-plated contacts with a bellows spring design, ensuring strong signal integrity and resistance to contact damage during mating cycles.
The surface mount termination type facilitates soldering onto PCBs, while polarized housings and PCB locating bosses guarantee precise alignment and secure connection. This connector withstands operating temperatures ranging from -65°C to 105°C, suitable for demanding environments.
Applications include high-end computers, telecommunications, industrial equipment, military, and aerospace electronics where space-saving, high-density board-to-board connections are critical. The rugged construction supports reliable and durable connection performance in a variety of electronic systems.
Compact 0.8 mm pitch high-density design saves PCB space. Gold-plated copper alloy contacts for superior conductivity and durability. Bellows spring contact design assures strong signal integrity and resilience to mechanical wear.
Polarized and shrouded housings prevent mis-mating for reliable assembly. Surface mount termination type enables automated soldering processes. Wide operating temperature range from -65°C to 105°C supports harsh environments.
100 contacts arranged in 2 rows for high connection density. Suitable for industrial, military, aerospace, telecommunications, and computing applications.
This product is manufactured in China and conforms to TE Connectivity's high standards for quality and performance. It is packaged for efficient insertion into machinery, enhancing production efficiency in industrial environments. Browse EnvMart’s extensive connector category for compatible components and related products.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 100V and carries a current of 500mA.
The contacts in this connector are arranged at a pitch of 0.8 mm.
It features a total of 100 contacts arranged in 2 rows.
This unit uses a surface mount termination type for efficient soldering to PCBs.
The contacts are made of copper alloy and are plated in gold for enhanced conductivity and durability.
It operates within a temperature range from -65°C to 105°C.
Yes, it has a shrouded design that helps prevent mis-mating and protects the connector contacts.
This model is suitable for high-end computers, telecommunications, industrial equipment, military, and aerospace electronics.
It is classified as a board-to-board connector system.
The connector features a bellows type spring contact design that ensures strong signal integrity and resilience to mechanical wear.
This PCB header is manufactured in China.
The orientation of this model is straight.
