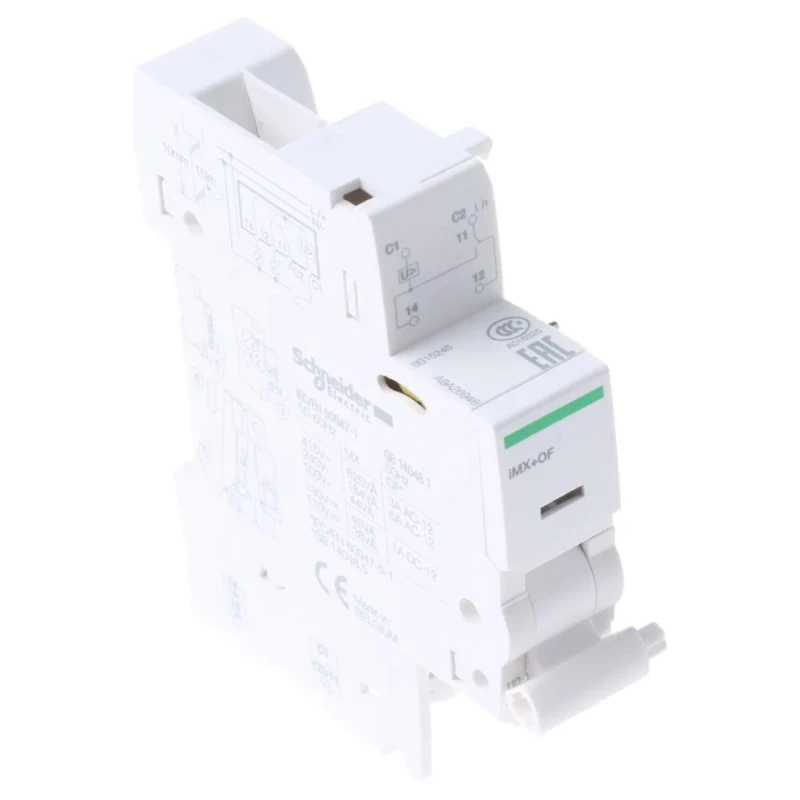

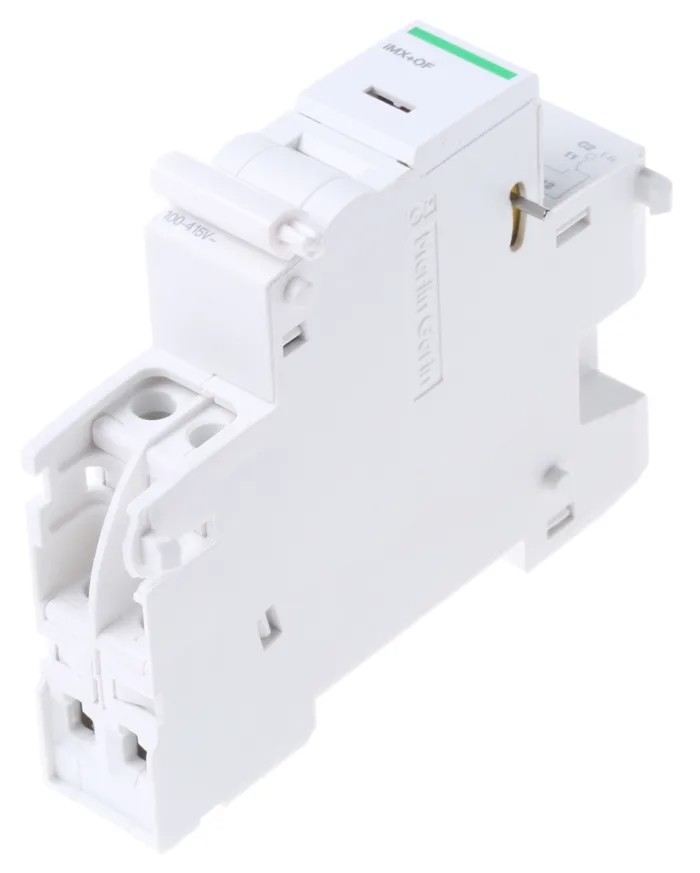

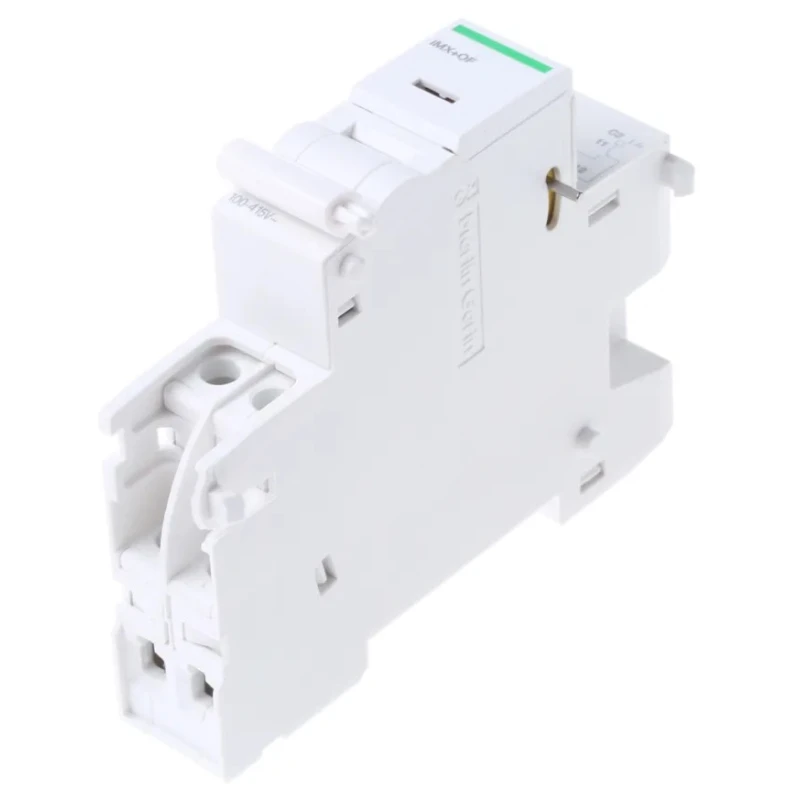

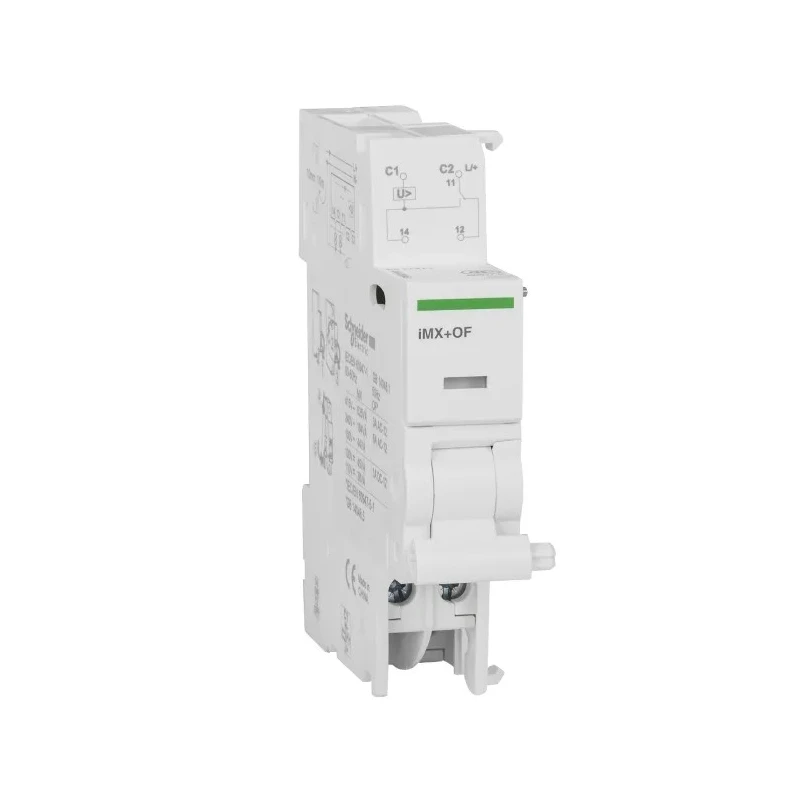

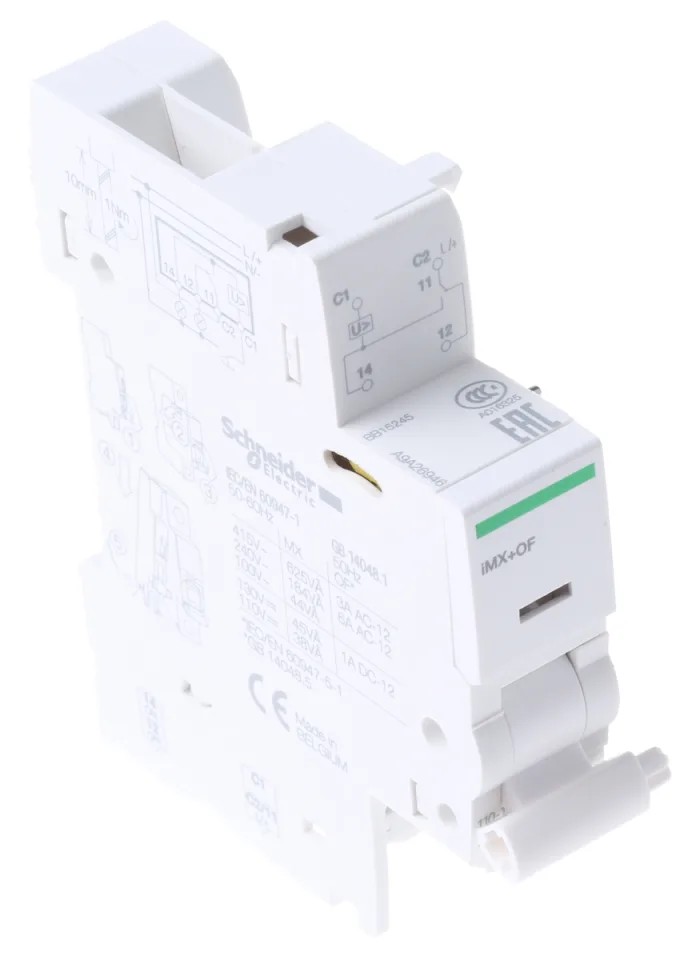

Schneider Electric 415V DIN Rail Circuit Trip for use with Ild Double Terminal, ARA, RCA, ISW-NA, IDPN Vigi, IlD MCB A9A26946
Specifications
| Country of Origin | India |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Model | A9A26946 |
| Mount Type | DIN Rail |
| Series | A9A |
| Terminal type | Clamp |
| For Use With | Ild Double Terminal, ARA, RCA, ISW-NA, IDPN Vigi, IlD MCB, iC60 MCB |
| Standards/Approvals | EN/IEC 60947-5-1 |
| Control Voltage | 415V |
| 220 → 415 V ac Shunt Release Circuit Trip for use with C32H-DC SeriesBrand | Merlin Gerin |
Key Features
- Operates with control voltages from 100 to 415VAC and 110 to 130VDC enabling versatile applications.
- Includes one changeover signal contact for secure status indication.
- Rated AC switching capacities up to 6A compatible with auxiliary loads.
- Compact 18mm width allows dense layout in distribution panels.
- Clamp terminals accept up to 6mm² rigid conductors providing robust connections.
- Suitable for retrofit installations on DIN-rail distribution boards.
- Compatible with Acti9 iC60 and iKQE modular protective units for enhanced system integration.
- Conforms to EN/IEC 60947-5-1 standards ensuring reliability and safety.
Product Description
Schneider Electric A9A26946 DIN Rail Circuit Trip is a shunt trip release device designed to enable remote tripping of breakers within industrial and commercial electrical distribution panels. It supports both AC control voltages (100 to 415VAC) and DC control voltages (110 to 130VDC), making it flexible for various applications.
The module is clip-mounted on standard DIN rails and features clamp terminals suitable for up to 6mm² rigid or 4mm² flexible conductors with a tightening torque of 1N.m, ensuring secure and reliable electrical connections. An auxiliary overcurrent contact and one changeover signal contact provide clear remote status monitoring and local indication via an action indicator.
Its compact 18mm width facilitates dense panel layouts, improving space efficiency when integrating with modular protective devices such as the Acti9 iC60 and iKQE series. This circuit trip is ideal for coordinated surge and fault isolation, suitable for retrofit installations and enhanced safety in control circuits.
The product complies with EN/IEC 60947-5-1 safety and performance standards, reflecting Schneider Electric's commitment to quality and industrial compliance. It is especially applicable in industrial, HVAC, commercial electrical, manufacturing, and water treatment electrical systems where remote breaker tripping is required.
Operates from 100 to 415VAC and 110 to 130VDC control voltages. One changeover contact provides status indication. Rated for up to 6A AC switching capacity. Compact 18mm width for space-efficient distribution panels. Clamp terminals accept conductors up to 6mm².
Clip-on mounting on standard DIN rail supports. Compatible with Acti9 iC60 and iKQE modular protective units. Conforms to EN/IEC 60947-5-1 standards.
Set includes one Schneider Electric A9A26946 DIN Rail Circuit Trip unit. This product is new and manufactured in India. For more high-quality electrical components and Circuit Trips, please explore the Schneider Electric range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This circuit trip operates with control voltages from 100 to 415VAC and 110 to 130VDC, allowing for versatile applications in various electrical systems.
The A9A26946 has a rated AC switching capacity of up to 6A, making it suitable for auxiliary loads in electrical distribution panels.
This circuit trip is compatible with Acti9 iC60 and iKQE modular protective units, enhancing system integration and functionality.
The A9A26946 has a compact width of 18mm, which facilitates dense layouts in distribution panels.
It is designed for clip-mounted installation on standard DIN rails, which is common in electrical distribution systems.
This model features clamp terminals that accept conductors up to 6mm² for rigid conductors and 4mm² for flexible conductors, ensuring secure connections.
This circuit trip conforms to the EN/IEC 60947-5-1 standards, ensuring reliability and safety in its operation.
It is particularly applicable in industrial, HVAC, commercial electrical, manufacturing, and water treatment systems where remote breaker tripping is required.
Yes, it includes one changeover signal contact that provides secure status indication for remote monitoring.
The tightening torque for the terminals is 1N.m, ensuring a reliable and secure connection for the conductors.
This circuit trip is manufactured in India, reflecting local production standards and practices.
The A9A26946 is part of the Acti9 series, which includes various modular devices for electrical distribution.
