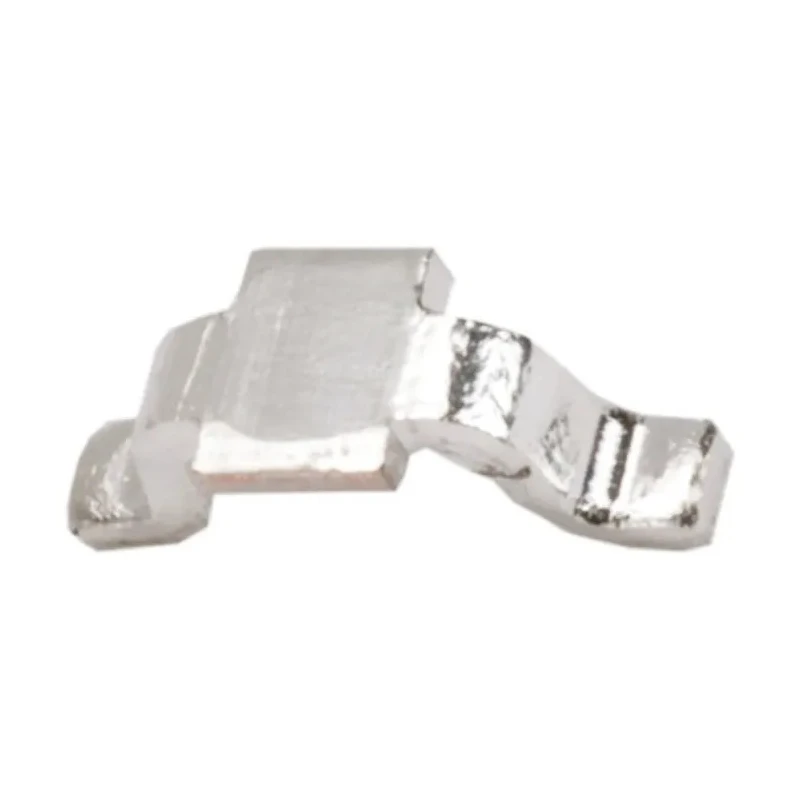

HARWIN Horizontal Non-Insulated 2 Way 1 Row Jumper 10A 6.86mm Length Copper Alloy Contact with Tin Plating S1731-46R
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Orientation | Horizontal |
| Current | 10A |
| Length | 6.86mm |
| Model | S1731-46R |
| Depth | 2.94mm |
| Width | 2.54mm |
| Contact Material | Copper Alloy |
| Series | S1 |
| Sub Type | Non-Insulated |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Maximum Contact Resistance | 20mΩ |
| 788-4818 | 12.3 mm long x 1.8 mm high x 2.3 mm wide |
| 788-4827 | 6.86 mm long x 2.54 mm high x 2.54 mm wide |
| 788-4855 | 6.85 mm long x 0.97 mm high x 2.51 mm wide |
Key Features
- The jumper features 2 copper alloy contacts with tin plating ensuring reliable conductivity.
- It has a compact length of 6.86 mm and a horizontal orientation suitable for space-constrained installations.
- The jumper supports a maximum contact resistance of 20 milliohms for stable electrical connections.
- Single row design with 2 contacts simplifies circuit bridging on PCBs.
- Complies with RoHS standards, confirming environmentally safe materials.
- Its dimensions measure 6.86 mm length, 2.54 mm width, and 2.94 mm depth.
- Manufactured in United Kingdom ensuring high quality and durability.
- Typical use cases include backplane power distribution and PCB connectivity without through holes.
Product Description
The HARWIN S1731-46R Horizontal Non-Insulated 2 Way 1 Row Jumper is an essential component for linking PCB tracks in various industrial and electronic applications, especially where through-hole mounting is to be avoided. This jumper supports a continuous current of up to 10A and offers a reliable, low-resistance electrical connection with maximum contact resistance of 20 milliohms. Crafted with copper alloy contacts plated in tin, the jumper ensures consistent conductivity and corrosion resistance.
Its compact dimensions of 6.86 mm length, 2.54 mm width, and 2.94 mm depth with a horizontal orientation make it suitable for dense circuit board layouts and backplane power applications. Being part of the Harwin EZ Boardware SMT Jumper Links range, it is widely adopted in industrial automation, electronics manufacturing, and power distribution systems.
The jumper is RoHS compliant, reflecting adherence to environmental and safety standards. Manufactured in the United Kingdom, it guarantees factory-quality construction and reliable performance, suitable for laboratory and commercial electronic design integration.
2 copper alloy contacts with tin plating ensure electrical reliability. Horizontal orientation allows compact and efficient PCB design. Compliant with RoHS standards for environmental safety. Single row with 2 contacts for straightforward circuit bridging.
Maximum contact resistance rated at 20 milliohms for quality performance. Compact size at 6.86 mm length facilitates use in tight electrical assemblies.
This jumper is typically supplied on reels, supporting automated assembly processes to improve production efficiency. It is ideal for use in industrial electronics, manufacturing equipment, and advanced power connector systems.
Explore the Electronics & Electricals categories at EnvMart for a broad range of power connectors and jumpers to suit all professional electronic component needs.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This jumper supports a maximum continuous current of up to 10A.
The length of this jumper is 6.86 mm.
The maximum contact resistance is rated at 20 milliohms.
The contacts are made from copper alloy and are plated with tin.
The jumper has dimensions of 6.86 mm length, 2.54 mm width, and 2.94 mm depth.
This model features a horizontal orientation, making it suitable for space-constrained installations.
Yes, the jumper complies with RoHS standards, confirming the use of environmentally safe materials.
This jumper has 2 contacts in a single row design.
It is commonly used for backplane power distribution and PCB connectivity without through holes.
This jumper is manufactured in the United Kingdom.
This model is part of the Harwin S1 series.
The width is 2.54 mm and the depth is 2.94 mm.
