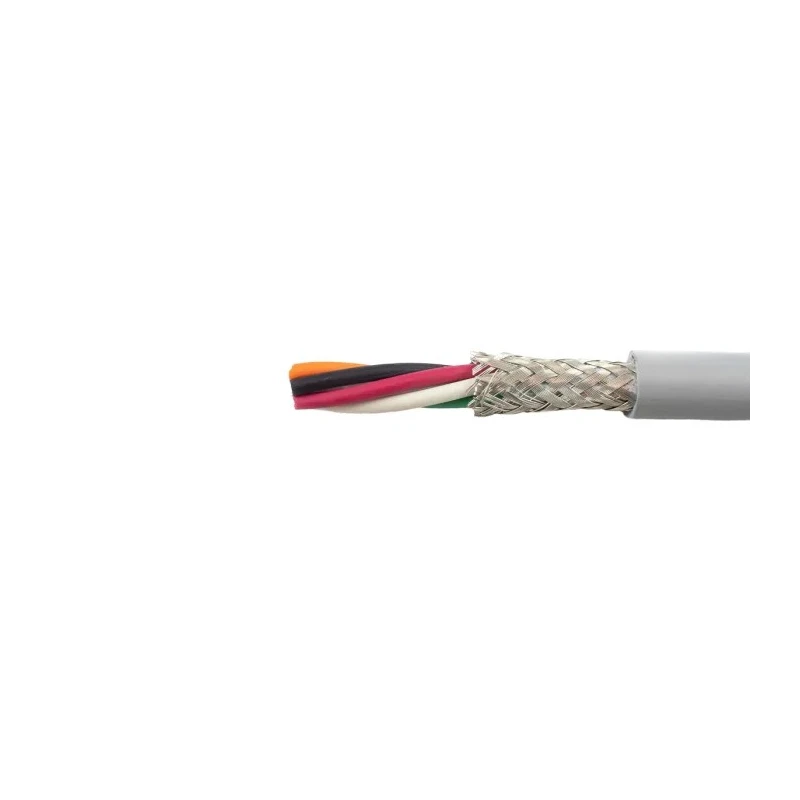

Alpha Wire Ecogen Ecoflex 5 Core 0.56mm² 20 AWG Screened Control Cable 600V 30m 79104 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 79104 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecoflex |
| Outside diameter | 6.35mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 5 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.250 inch (6.35 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 10 |
| Core Strands | 10 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.56mm² |
| Conductors | 5, Black, Red, White, Green, Orange |
| Jacket Thickness | 0.035 inch (0.89 mm) |
| Stranding | 10/30 |
Key Features
- Features a grey modified polyphenylene ether (mPPE) jacket for environmental friendliness and durability.
- Suitable for low smoke zero halogen (LSZH) environments and rated for extreme temperatures from -40°C to 105°C.
- Constructed with finely stranded tinned copper conductors and a tinned copper braid shield offering 70% minimum coverage.
- Designed for high mechanical strength and over 1 million flex life cycles, ideal for electromagnetic applications.
- Multi-conductor design with color-coded cores including black, red, white, green, and orange for easy identification.

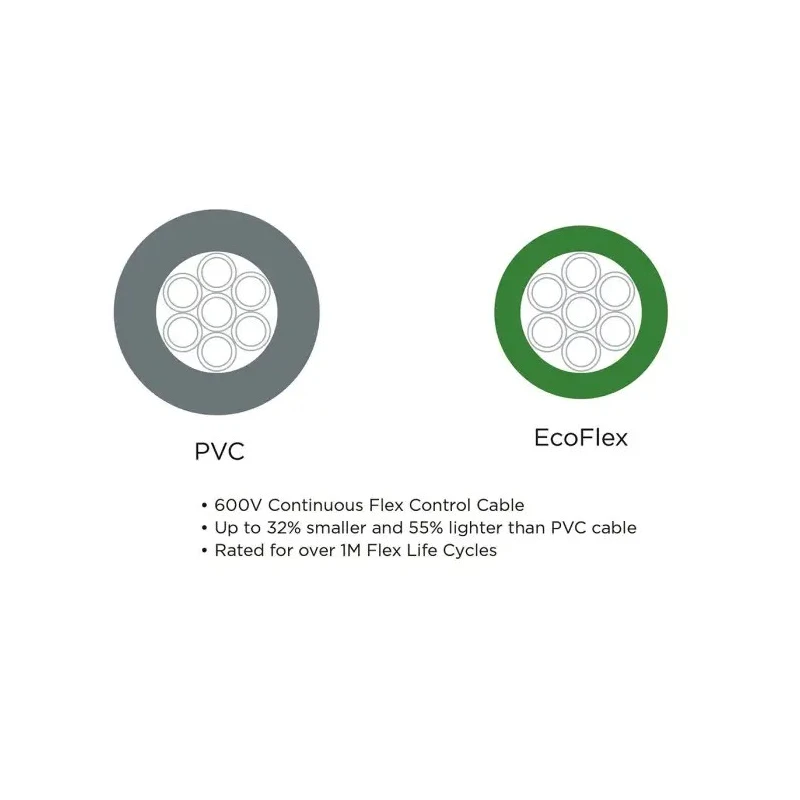

- Compact and lighter than conventional PVC equivalents, reducing installation weight and space requirements.
- Meets UL, CSA, and CE standards, ensuring quality and compliance.
- Nominal diameter of 6.35 mm with a jacket thickness of 0.89 mm and insulation thickness of 0.25 mm.
Product Description
Alpha Wire 79104 SL005 Ecogen Ecoflex control cable is a high-performance screened cable featuring 5 cores with 0.56mm² (20 AWG) conductor size, designed for continuous flex applications at 600 V. The cable length is 30 meters and it is encased in a grey modified polyphenylene ether (mPPE) jacket that offers excellent mechanical strength and environmental benefits due to its low smoke zero halogen (LSZH) properties.
The cable conductor material is finely stranded tinned copper wire, providing excellent conductivity and flexibility. It is shielded with a tinned copper braid that offers 70% minimum coverage, making it suitable for electromagnetic interference reduction in industrial control and automation systems.
This cable is engineered to withstand extreme temperatures, operating reliably from -40°C to +105°C, making it suitable for diverse industrial environments including manufacturing, automation, HVAC, and electrical power distribution. Its halogen-free composition ensures safety during fire events by reducing toxic emissions.
The multi-conductor design includes color-coded cores in black, red, white, green, and orange, which simplifies installation and maintenance. The compact diameter of 6.35 mm and the lightweight mPPE jacket allow for easier handling and installation compared to heavier PVC cables.
This product meets industry standards including UL, CSA, and CE, ensuring compliance with global safety and quality requirements. The Ecogen Ecoflex series from Alpha Wire offers enhanced durability and flexibility with a rated life cycle exceeding 1 million flex cycles, ideal for applications requiring frequent cable movement.
Features a grey mPPE jacket that is both halogen-free and environmentally friendly. Five color-coded cores with 0.56mm² tinned copper conductors for effective signal transmission. Tinned copper braid shield offers excellent electromagnetic interference protection.
Operating temperature range of -40°C to 105°C ensures versatile application suitability. Certified compliant with UL, CSA, and CE standards for industrial control use. Nominal cable diameter of 6.35 mm with low jacket and insulation thickness for compact installations.
Lightweight and recyclable material structure reduces environmental impact and installation costs.
Alpha Wire control cables are widely used in industrial automation, machine tooling, robotics, HVAC systems, manufacturing plants, and other commercial electrical installations. Their mechanical strength, electrical reliability, and environmental safety make them a preferred choice for demanding industrial and electrical power applications.
Explore our range of Alpha Wire Control Cables at EnvMart for superior quality and performance tailored to industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 600V, making it suitable for various industrial applications.
It can operate reliably at temperatures up to 105°C.
This control cable features 5 cores, which include color-coded conductors for easy identification.
The nominal diameter of this cable is 6.35 mm.
It is constructed with finely stranded tinned copper conductors and a grey modified polyphenylene ether (mPPE) jacket.
Yes, this cable is halogen-free, which reduces toxic emissions during fire events.
The insulation thickness is 0.25 mm (0.010 inch), and the jacket thickness is 0.89 mm (0.035 inch).
It meets UL, CSA, and CE standards, ensuring compliance with global safety and quality requirements.
The cable length is 30 meters, providing ample reach for various installations.
It is suitable for industrial automation, machine tooling, robotics, HVAC systems, and electrical power distribution.
This model features a tinned copper braid shield that offers a minimum of 70% coverage for electromagnetic interference protection.
The cable can operate in temperatures as low as -40°C, making it suitable for diverse industrial environments.
