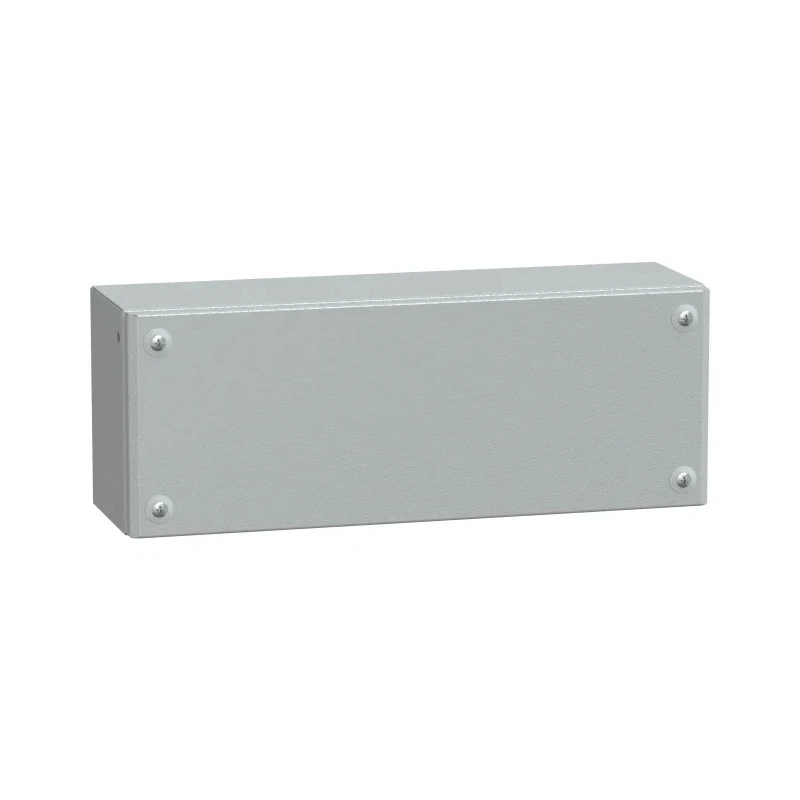

Schneider Electric PanelSeT SBM Series Steel Wall Box Enclosure IP66 150mm x 400mm x 120mm NSYSBM154012
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYSBM154012 |
| IP Rating | IP66 |
| Series | PanelSeT SBM |
| External Width | 400mm |
| External Depth | 120mm |
| External Height | 150mm |
| Standards/Approvals | DNV, UL, BV, RoHS, LR, REACH, IEC 62208 |
| Door Lock Type | Screw |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| Outside sealed area | PZ2 screwdriver captive screw lock |
Key Features
- Constructed from durable steel with a grey polyester powder coating (RAL 7035) for corrosion resistance.
- Provides IP66-rated protection against dust ingress and powerful water jets.
- Equipped with a screw-type door lock and polyurethane sealing gasket for secure closure.
- Complies with multiple international standards including DNV, UL, BV, RoHS, LR, REACH, and IEC 62208.
- Designed with IK10 impact resistance conforming to IEC 62262 for mechanical protection.
- Single piece wall-mounted rectangular body with folded gutters for robust construction.
- Includes 1 enclosure door/cover, 4 cover screws, and 1 enclosure body for installation.
- Suitable for installing mounting plates and DIN rails with drilled profiles and fixing centres of 12.5 mm.
Product Description
Schneider Electric NSYSBM154012 PanelSeT SBM Series Steel Wall Box Enclosure offers robust protection for electrical and industrial applications. This wall-mounted enclosure is constructed from high-quality sheet steel finished in grey polyester powder coating (RAL 7035) to resist corrosion and environmental factors.
It measures 150 mm in height, 400 mm in width, and 120 mm in depth, providing ample space for electrical equipment and panels. The enclosure complies with IP66 rating according to IEC 60529, ensuring complete protection against dust ingress and powerful water jets, making it suitable for harsh industrial environments.
The enclosure door is plain and flat, secured with half-turn metal screw locks operated by PZ2 captive screws. The construction offers IK10 mechanical impact resistance as per IEC 62262, safeguarding against impacts equivalent to a 5 kg object dropped from 40 cm height. The single-piece folded and welded body ensures structural integrity and durability.
This product meets global standards including DNV, UL, BV, RoHS, LR, REACH, and IEC 62208. Designed for disassembly, it supports sustainability initiatives by facilitating easier recycling and maintenance. The cover houses an M6 x 16 earth stud welded inside for equipotential bonding, enhancing safety during operation.
Constructed from robust steel with a polyester powder coated finish for corrosion and wear resistance. IP66 rating ensures protection against dust and strong water jets for indoor and outdoor industrial use. IK10 rating offers high mechanical impact resistance for secure protection of sensitive electronics.
Designed for wall mounting with a single-piece body and folded gutters for strength. Includes enclosure door, cover screws, and body to facilitate quick assembly and installation. Complies with multiple certifications and standards to meet global industrial requirements.
Suitable for use in industrial machinery, building automation, underground parking facilities, road and railway tunnels.
Schneider Electric’s PanelSeT SBM steel enclosures provide an attractive and tough design for protecting sensitive electronic components in demanding industrial environments. They deliver reliable performance and ease of installation, supporting efficient and secure electrical distribution and control systems.
By choosing Schneider Electric PanelSeT SBM enclosures, industries can achieve durable equipment protection while aligning with sustainability principles and international compliance standards. Explore more options within the Electrical Enclosures category on EnvMart to find compatible industrial solutions.
Explore more products in our Wall Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 150 mm in height, 400 mm in width, and 120 mm in depth.
It has an IP66 rating, providing complete protection against dust ingress and powerful water jets.
The enclosure is constructed from steel with a grey polyester powder coating for corrosion resistance.
This enclosure has an IK10 rating, indicating high mechanical impact resistance.
It features a screw-type door lock operated by PZ2 captive screws for secure closure.
It complies with several standards including DNV, UL, BV, RoHS, LR, REACH, and IEC 62208.
It is designed for wall mounting and includes a single-piece body with folded gutters for strength.
It supports panel mounting, making it suitable for installing mounting plates and DIN rails.
The earth stud is welded inside for equipotential bonding, enhancing safety during operation.
It is suitable for use in industrial machinery, building automation, underground parking facilities, and road and railway tunnels.
The product includes one enclosure door/cover, four cover screws, and one enclosure body for installation.
