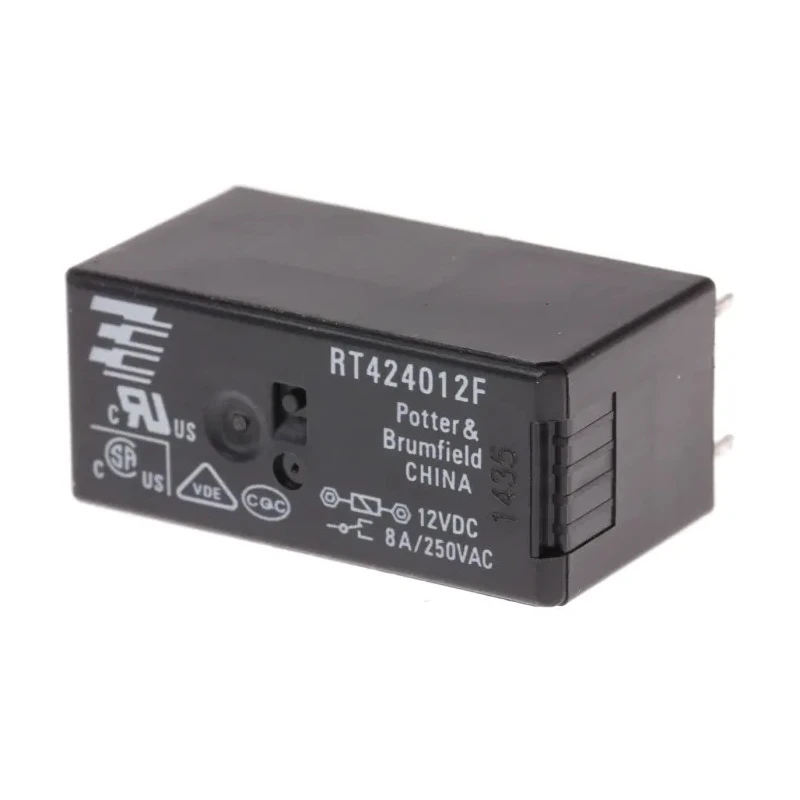

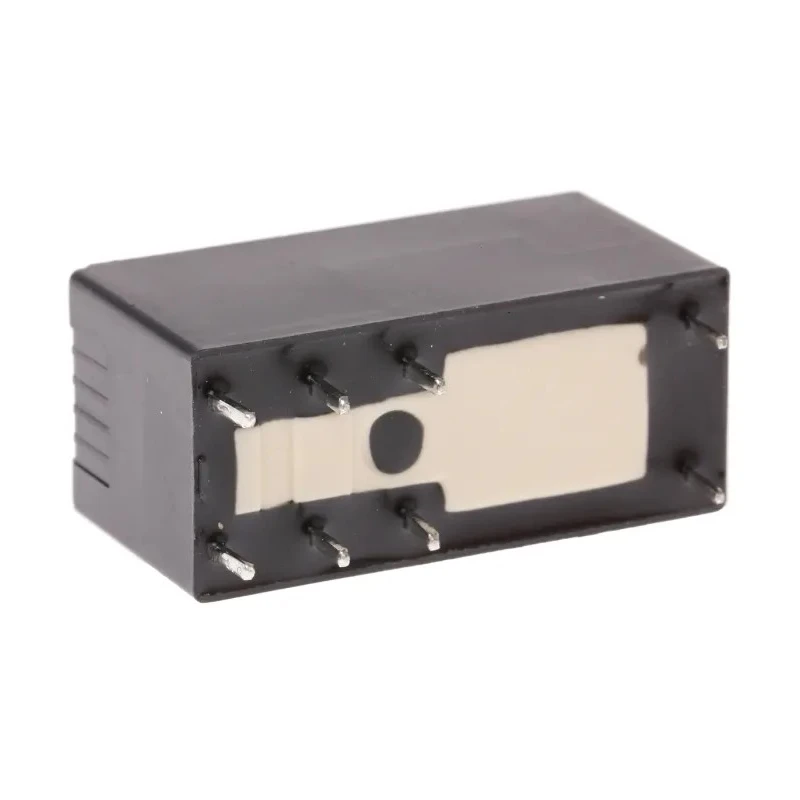

TE Connectivity PCB Power Relay 12V DC Coil, 8A Switching Current, DPDT RT424012F

TE Connectivity RT424012F PCB Power Relay offers reliable electrical switching with a 12V DC coil voltage and an 8A switching current in a DPDT (Double Pole Double Throw) contact configuration. This relay is designed specifically for PCB mounting with solder terminal types, making it suitable for a wide range of industrial and electronic control applications.

It operates efficiently within an ambient temperature range of -45°C to 85°C, making it robust enough for demanding industrial environments. The relay coil power consumption is 400mW with a coil resistance of 360Ω, supporting low power consumption and stable operation.

The contact material is silver nickel alloy, enhancing conductivity and durability to ensure long operational life under frequent switching conditions. The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, which allows flexible integration into compact PCB designs.

TE Connectivity’s RT2 series relays feature UL Class F coil insulation and hold certifications from UR, CSA, and UL for safety and quality assurance. The relay supports switching AC voltages up to 400V and switching powers of 400mW, making it suitable for various power relay applications.

This power relay finds extensive use in industrial automation, electrical control systems, manufacturing equipment, and other commercial electronics requiring precise and durable relay switching solutions. Its professional-grade construction and certifications enable confidence in performance and compliance.

This power relay features a DPDT (Double Pole Double Throw) contact configuration for versatile switching applications. Designed for PCB mounting with solder terminal types ensuring secure connections. Operates within a temperature range of -45°C to 85°C, suitable for industrial environments.

The coil consumes 400mW power and has 360Ω resistance for efficient energy usage. Silver nickel alloy contact material provides high conductivity and durability. Compact dimensions (29mm length, 12.7mm width, 15.7mm height) support space-saving PCB layouts.

UL Class F coil insulation and approvals including UR, CSA, and UL ensure reliability and safety compliance. Rated switching AC voltage up to 400V AC and switching power up to 400mW. The relay series is RT2, known for professional low-profile industrial PCB relays.

Explore more Power Relays and electrical components at EnvMart for dependable industrial and automation applications.
