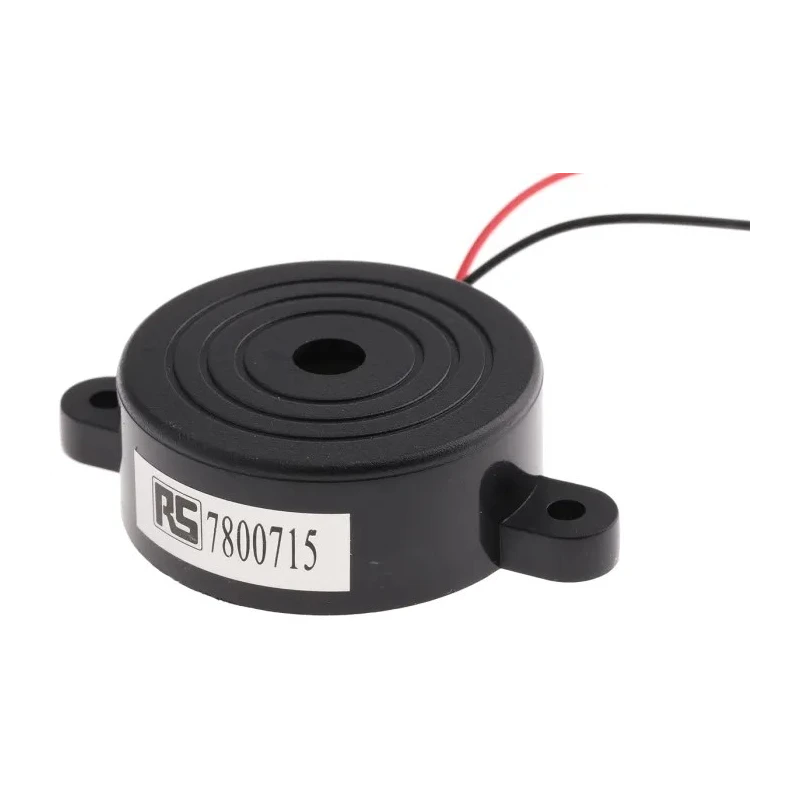

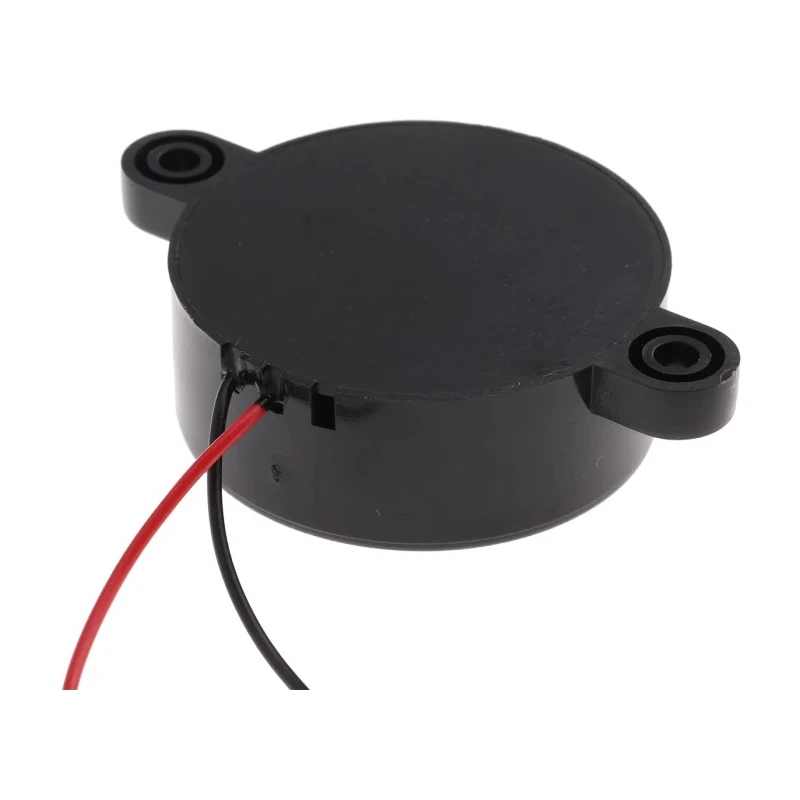

RS PRO 90 dB Through Hole Continuous External 16 mm Piezo Buzzer Component 60 mm 1 V AC Min 30V AC Max 780-0715
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 41.8mm |
| Brand | RS PRO |
| Sound Level | 90dB |
| Height | 16mm |
| Length | 60mm |
| Model | 780-0715 |
| Drive Type | External |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Capacitance | 35nF |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 3.3kHz |
| Maximum Supply Voltage | 30V ac |
| Minimum Supply Voltage | 1V ac |
| Supply Current | 3mA |
| Tone Type | Continuous |
| Minimum Frequency | 2300Hz |
| Murata 75dB Panel Mount External Piezo Buzzer, 61 x 44 x 14mm, 30V ac MaxBrand | Murata |
Key Features
- The buzzer has a diameter of 41.8 mm and height of 16 mm for compact mounting.
- Operating temperature ranges from -20°C up to 60°C ensuring wide environmental tolerance.
- It provides a frequency range between 2300 Hz and 3.3 kHz for versatile audio applications.
- Designed with flanged mounting and flying lead connections for easy installation.
- Suitable for audio sensing and instrumentation applications.
- Includes internal circuitry for DC operation and supports external drive type.
- RoHS compliant ensuring environmental and health safety standards.
- Supplied with ABS housing and 28AWG wire leads for durability and reliability.
Product Description
RS PRO 780-0715 is a high-performance piezo buzzer component designed for electronic applications requiring continuous tone and high sound output. It features a through hole mount with a compact profile having a diameter of 41.8 mm, height of 16 mm, and length of 60 mm.
The buzzer operates within a supply voltage range of 1 V AC minimum to 30 V AC maximum, delivering a loud 90 dB sound level. It generates continuous tones within a frequency range of 2300 Hz to 3.3 kHz, making it suitable for audio sensing, alarms, and instrumentation purposes.
Built with an ABS housing and equipped with flanged mounting and flying lead wire connections, it facilitates easy and secure installation on printed circuit boards or panels. The device has internal circuitry enabling DC operation, with a supply current of 3 mA, enhancing flexibility in various circuit designs.
The operating temperature range from -20°C up to +60°C ensures the buzzer performs reliably under different environmental conditions. The component complies with RoHS standards, meeting modern environmental regulations.
The buzzer is ideal for industrial, electronic manufacturing, automotive, and instrumentation sectors. RS PRO brand assures quality in components designed for durability and performance. Package includes one RS PRO 780-0715 piezo buzzer component ready for integration into electronic assemblies.
Explore more Piezo Buzzer Components and electronic parts within the Electronics & Electricals category at EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a sound level of 90 dB, making it suitable for applications requiring a loud output.
This model generates tones within a frequency range of 2300 Hz to 3.3 kHz.
The buzzer has a diameter of 41.8 mm, a height of 16 mm, and a length of 60 mm.
It operates with a supply voltage ranging from 1 V AC minimum to 30 V AC maximum.
It features a through hole mount, which allows for secure installation on printed circuit boards or panels.
The operating temperature ranges from -20°C to +60°C, ensuring it can function in various environmental conditions.
It supports an external drive type, providing flexibility in circuit designs.
It is constructed with an ABS housing, which contributes to its durability and reliability.
The supply current is 3 mA, which is relevant for power consumption considerations in circuit designs.
Yes, it complies with RoHS standards, ensuring it meets modern environmental regulations.
It is suitable for audio sensing, alarms, and instrumentation purposes in various sectors including industrial and automotive.
