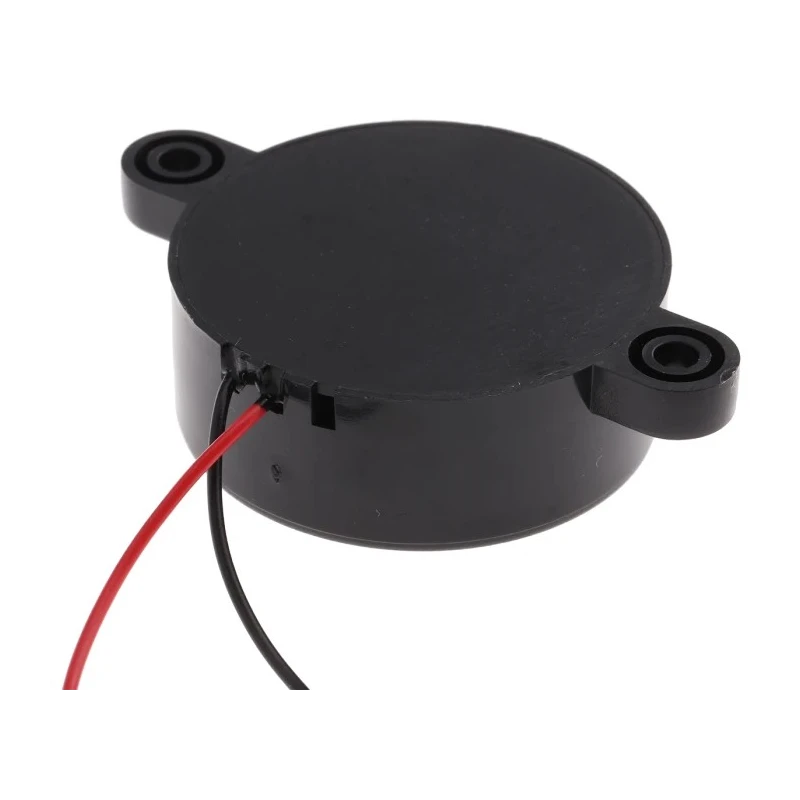

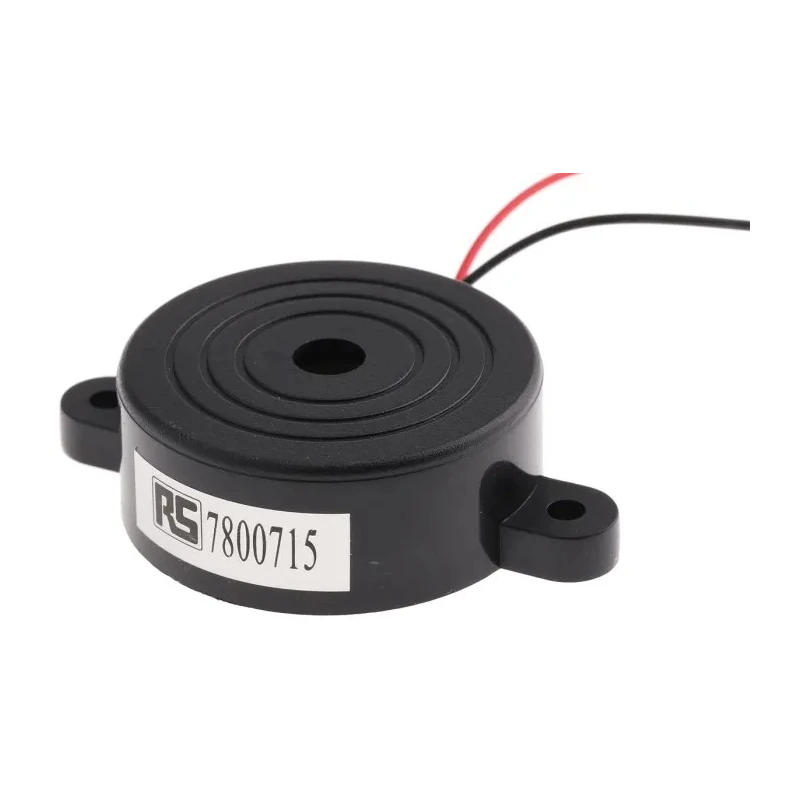

RS PRO 90 dB Through Hole Continuous External 16 mm Piezo Buzzer Component 60 mm 1 V ac Min 30V ac Max 7800715P
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 41.8mm |
| Brand | RS PRO |
| Sound Level | 90dB |
| Height | 16mm |
| Length | 60mm |
| Model | 7800715P |
| Drive Type | External |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Capacitance | 35nF |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 3.3kHz |
| Maximum Supply Voltage | 30V ac |
| Minimum Supply Voltage | 1V ac |
| Supply Current | 3mA |
| Tone Type | Continuous |
| Minimum Frequency | 2300Hz |
Key Features
- Operates between 1 V ac minimum and 30 V ac maximum voltage.
- Produces a continuous tone with frequencies ranging from 2300 Hz to 3.3 kHz.
- Compact dimensions including a 16 mm height and 41.8 mm diameter.
- Features an ABS housing and flanged mounting for easy installation.
- Suitable for audio sensing and instrumentation applications.
- Operating temperature range from -20°C to 60°C ensures environmental adaptability.
- Supply current is 3 mA during operation.
- RoHS compliant, manufactured in China.
Product Description
RS PRO 7800715P Piezo Buzzer Component is a high-performance, through hole mount piezo buzzer designed for continuous external drive applications. This component operates efficiently within a supply voltage range of 1 V ac minimum to 30 V ac maximum and emits a high sound level of 90 dB, making it ideal for industrial and instrumentation audio sensing environments.
The piezo buzzer measures 16 mm in height with a diameter of 41.8 mm and a length of 60 mm, enclosed in a rugged ABS housing that provides durability and reliable performance. Its flanged mounting allows easy installation on printed circuit boards or panels, while its flying lead wire leads ensure straightforward electrical connections.
This component generates a continuous tone between frequencies of 2300 Hz and 3.3 kHz, powered by a supply current of approximately 3 mA. It is designed to withstand operating temperatures ranging from -20°C up to 60°C, ensuring it performs reliably across a variety of environmental conditions.
The RS PRO 7800715P is RoHS certified and manufactured in China, offering compliance with environmental standards. It is particularly suited for use in audio sensing systems, instrumentation, and other electronic applications where a dependable buzzer is required.
Operates within 1 V ac to 30 V ac supply voltage range. Delivers powerful 90 dB sound output with continuous tone. Compact size with 16 mm height and 41.8 mm diameter. ABS housing with flanged mounting ensures durability and ease of installation.
Functions reliably from -20°C to 60°C operating temperature. Low supply current of 3 mA for energy-efficient performance. Conforms to RoHS standards, ensuring environmental safety. Ideal for industrial, laboratory, and instrumentation audio applications.
Explore EnvMart’s comprehensive portfolio of electronic components and piezo buzzer solutions for your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 1 V ac minimum to 30 V ac maximum.
It produces a sound level of 90 dB, making it suitable for various audio applications.
The buzzer emits a continuous tone with frequencies ranging from 2300 Hz to 3.3 kHz.
It has a height of 16 mm, a diameter of 41.8 mm, and a length of 60 mm.
The supply current during operation is approximately 3 mA.
This piezo buzzer features a through hole mounting type, allowing for easy installation.
The buzzer is enclosed in a rugged ABS housing, which provides durability.
It operates reliably within a temperature range of -20°C to 60°C.
Yes, this model is RoHS certified, ensuring compliance with environmental standards.
It is particularly suited for audio sensing systems and instrumentation applications.
This component is designed for external drive applications.
The capacitance of this model is 35 nF.
