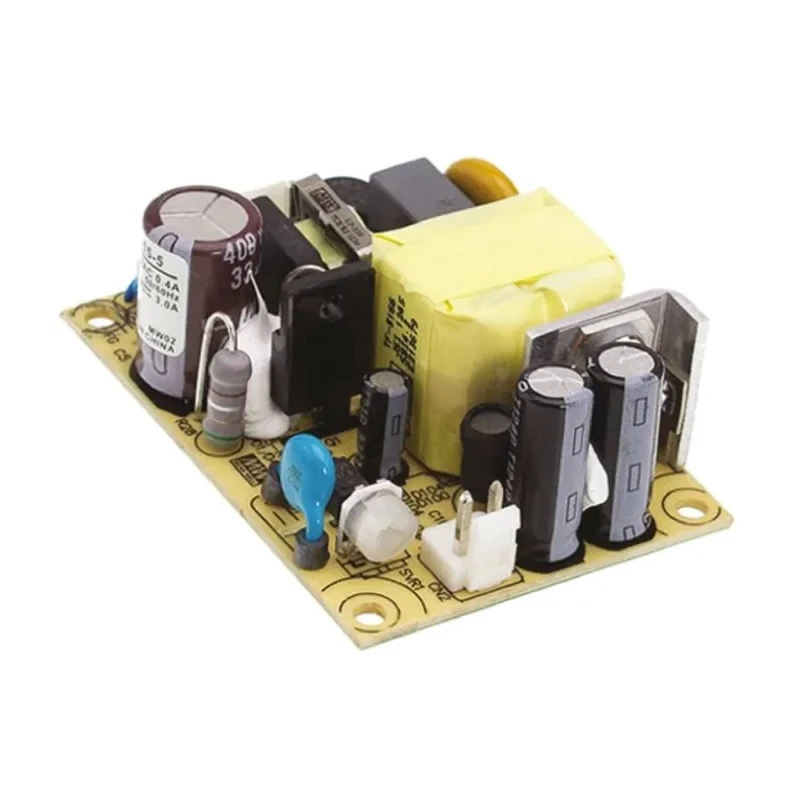

MEAN WELL EPS-15-48 Switching Power Supply 48V DC 15W Universal AC Input Chassis Mount EPS-15-48

MEAN WELL EPS-15-48 is a high-quality switching power supply providing 48V DC output at 15 watts power with chassis mounting type designed for versatility and reliable performance. It operates on universal AC input voltage from 85V AC to 264V AC and can also accept up to 370V DC input. This power supply is ideal for factory automation, electrical, and mechanical equipment applications that require efficient and stable power delivery.

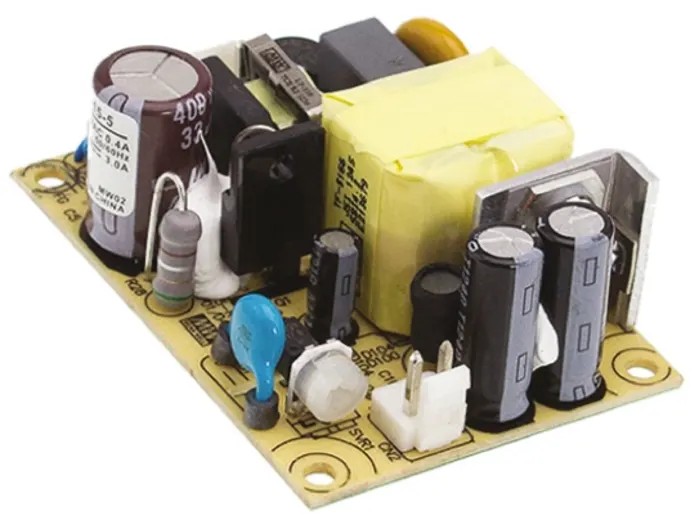

The EPS-15 series features a compact and open frame design, reducing size by approximately 37% compared to previous models while improving working efficiency by 2 to 8 percent. It achieves an efficiency rating of up to 85% and complies with the ErP norm and Energy Star requirements through ultra-low no-load power consumption below 0.3 watts. Cooling is managed by natural convection without the need for fans, promoting silent operation and durability.

Designed for demanding industrial environments, this switching power supply has a wide operating temperature range from -30°C to 70°C and is equipped with multiple protections including short circuit, overload, and over voltage safeguards to ensure safe and reliable operation in critical applications.

Its compact dimensions of 63.5 mm length, 24 mm width, and 24 mm depth, with a lightweight chassis of 57 grams, allow easy integration into various electronic assemblies. The EPS-15-48 meets international standards and certifications such as EAC TP TC 004, IEC 6681, TUV BS ENEN 6681, and UL 6681, validating its quality and safety for industrial use.

Compact chassis mount design suitable for space-constrained applications. Universal AC input 85V AC to 264V AC and 370V DC maximum input voltage. High energy efficiency up to 85%, reducing operating costs. Wide operating temperature from -30°C to 70°C supports harsh environments.

Short circuit, overload, and over voltage protection enhance safety. Low no-load power consumption less than 0.3W complies with energy standards. Cooling by free air convection ensures silent and maintenance-free operation.

Lightweight 57g with small footprint dimensions of 63.5x24x24mm. Ideal for industrial automation, electrical, and mechanical equipment.

MEAN WELL brand Switching Power Supplies are globally recognized for quality and durability. The EPS-15-48 model is a compact, efficient, and reliable solution for industrial power needs. Explore EnvMart’s extensive range of MEAN WELL power supplies for your diverse industrial, laboratory, and commercial requirements.
