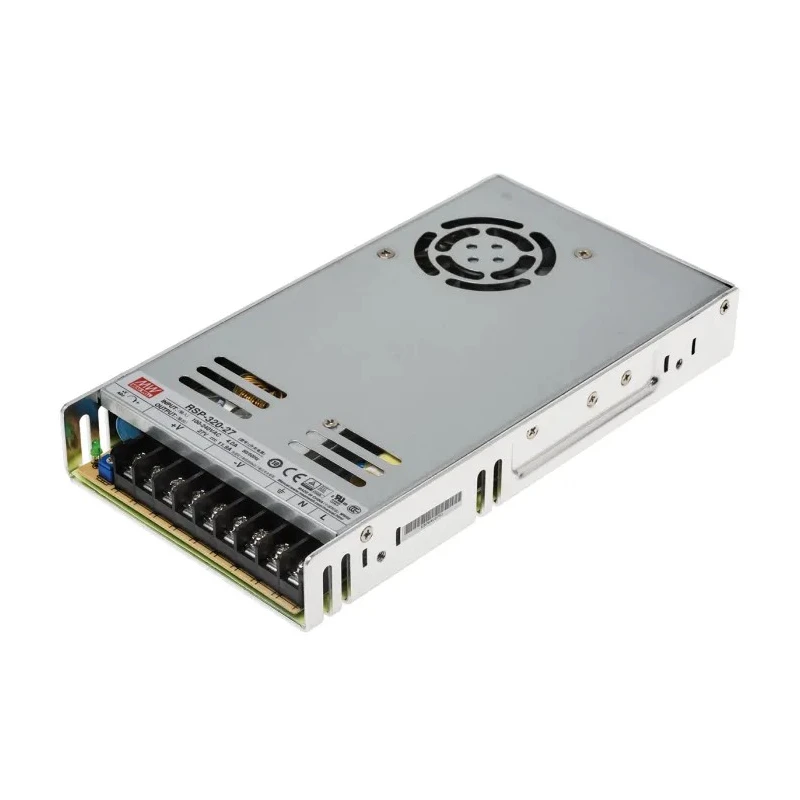

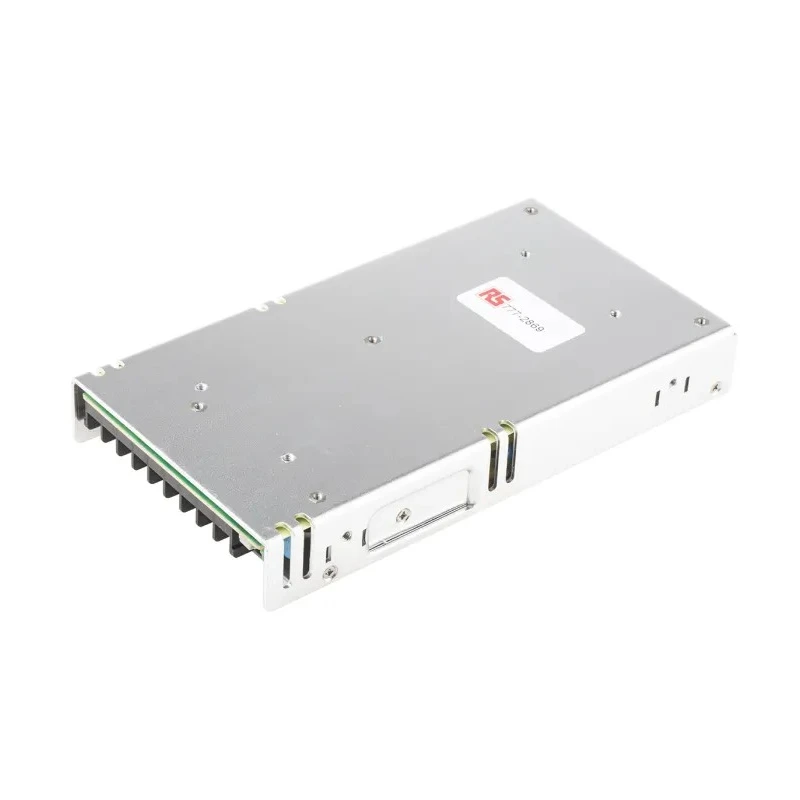

MEAN WELL 321W Switching Power Supply 27V DC, 1 Output, Chassis Mount RSP-320-27

MEAN WELL RSP-320-27 is a high-performance switching power supply designed to provide stable 27V DC output at 321 watts suitable for industrial and commercial electrical applications.

This power supply features a compact chassis mount design measuring 215mm in length and 30mm in both width and depth, allowing for convenient 1U space installation in control cabinets or other constrained environments.

With a universal input voltage range from 88V AC to 264V AC and a maximum input voltage reaching up to 370V DC, the RSP-320-27 supports flexible power sourcing with high reliability.

The device is cooled by a built-in long life DC fan, operating efficiently between -30°C and 70°C under full load conditions, making it suitable for use in diverse industrial environments.

Incorporated protections against short circuit, overload, over voltage, and over temperature ensure operational safety and maximize equipment longevity. The power supply achieves an efficiency rating of 89 percent, reducing energy consumption and heat dissipation which is beneficial for energy-conscious applications.

Standards certifications include CSA C22.2 No. 62368-1, UL 62368-1, CCC GB4943.1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, AS/NZS 62368.1, and BSMI CNS143361, confirming compliance with international safety and performance regulations.

An LED indicator provides clear operating status feedback for easy monitoring and maintenance.

This power supply is widely applicable in industrial control systems, mechanical and electrical equipment, LED display systems, and any system requiring a reliable low profile power supply solution.

Explore other MEAN WELL Switching Power Supplies and power components on EnvMart for your industrial and commercial power needs. Compact design with chassis mount for easy installation. Single output delivering up to 11.9A current.

Wide input voltage range from 88V AC to 264V AC and maximum input voltage up to 370V DC. High efficiency of 89% ensures energy saving and reduced heat generation. Operating temperature range from -30°C to 70°C with built-in DC fan cooling.

Multiple protections provided including short circuit, overload, over voltage, and over temperature. Dimensions of 215mm length, 30mm width, and 30mm depth enable 1U low-profile installation. Complies with various international standards such as UL, CSA, TUV, and CCC.

LED indicator for operational status monitoring. Suitable for industrial control systems, mechanical and electrical industry, LED displays, and other low-profile installation requirements.
