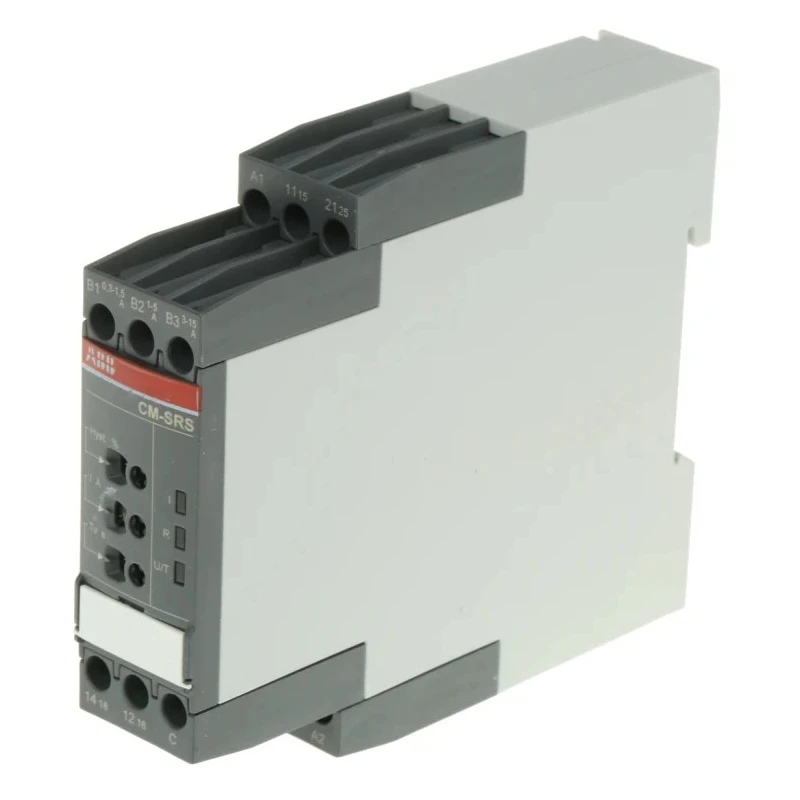

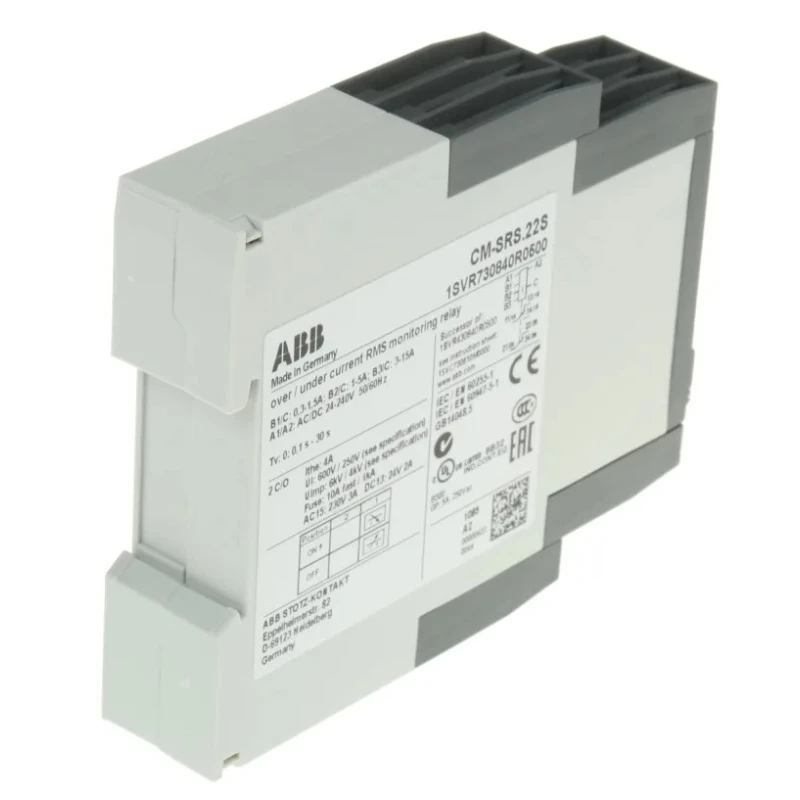

ABB Monitoring Relay, 1 Phase, DPDT Contact Configuration, DIN Rail Mount, 0.3A to 15A Current 1SVR730840R0500 CM-SRS.22S
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 0.75W |
| Brand | ABB |
| Height | 85.6mm |
| Length | 103.7mm |
| Model | 1SVR730840R0500 CM-SRS.22S |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | CM-SRS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | UL |
| Switching Voltage | 240V |
| Supply DC Voltage | 240 V dc |
| Supply AC Voltage | 240V ac |
| Minimum Current Sensed | 0.3A |
| Maximum Current Sensed | 15A |
| Current Sensitivity | Overcurrent, Undercurrent |
| ABB Current Monitoring Relay, DPDTBrand | ABB |
Key Features
- Compact design for DIN rail mounting in control panels.
- Operates with supply voltage ranges from 24 to 240 V AC/DC.
- Adjustable overcurrent and undercurrent sensitivity for diverse applications.
- Robust screw terminals ensure reliable electrical connections.
- Wide operating temperature range from -25 to 60°C supports harsh environments.
- Complies with UL 508 and IEC/EN standards for safety and quality.
- Offers configurable tripping delay from instantaneous up to 30 seconds.
- IP20 rated housing ensures protection against ingress of solid objects.
Product Description
ABB 1SVR730840R0500 CM-SRS.22S Monitoring Relay is engineered for accurate current monitoring in single-phase electrical systems. Featuring a DPDT contact configuration and a wide current sensing range from 0.3A to 15A, this relay is designed for installation on standard DIN rails, with compact dimensions measuring 103.7mm length, 22.5mm width, and 85.6mm height.
It operates efficiently with control supply voltages from 24 up to 240 V AC/DC and consumes minimal power at 0.75W, making it suitable for energy-conscious industrial applications. The device supports both overcurrent and undercurrent sensitivity settings, allowing precise adjustment to match specific system requirements and reduce false triggers.
Designed to meet stringent UL 508 and IEC/EN certifications, the relay is housed in an IP20 rated enclosure and withstands operating temperatures ranging from -25°C to 60°C, allowing reliable performance in varied environmental conditions. Installation is facilitated through robust screw terminal connections, ensuring secure and dependable wiring.
This series provides versatile tripping delay settings from instantaneous to 30 seconds, enabling tailored response times for different monitoring needs. The relay is widely used in industrial automation, electrical phase monitoring, power system safety enforcement, and integration within control panels and electrical cabinets.
Compact DIN rail mount form factor for easy installation. Wide supply voltage AC/DC from 24 to 240 V. Adjustable current sensitivity for overcurrent and undercurrent detection. Configurable tripping delay enhances system protection.
Complies with prominent industrial safety standards such as UL 508. IP20 rated housing protects internal components. Supports wide temperature range for industrial environments. Reliable screw terminal connections ensure robust wiring.
Application in power and automation monitoring systems.
Engineered in Germany, the ABB CM-SRS series Monitoring Relay delivers precision, durability, and compliance required in advanced electrical and industrial automation setups. Explore more options in the Monitoring Relays category at EnvMart to select suitable controls for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current sensing range of this monitoring relay is from 0.3A to 15A.
It operates with control supply voltages ranging from 24 to 240 V AC/DC.
This monitoring relay features a DPDT (Double Pole Double Throw) contact configuration.
The power consumption of this relay is 0.75W.
It can operate within a temperature range of -25°C to 60°C.
This model is designed for DIN rail mounting, making installation straightforward in control panels.
It features robust screw terminals for reliable electrical connections.
It complies with UL 508 and IEC/EN standards for safety and quality.
The housing of this monitoring relay has an IP20 rating, providing protection against ingress of solid objects.
It offers adjustable overcurrent and undercurrent sensitivity settings, along with a configurable tripping delay from instantaneous up to 30 seconds.
The dimensions of this monitoring relay are 103.7mm in length, 22.5mm in width, and 85.6mm in height.
It is widely used in industrial automation, electrical phase monitoring, and power system safety enforcement.
