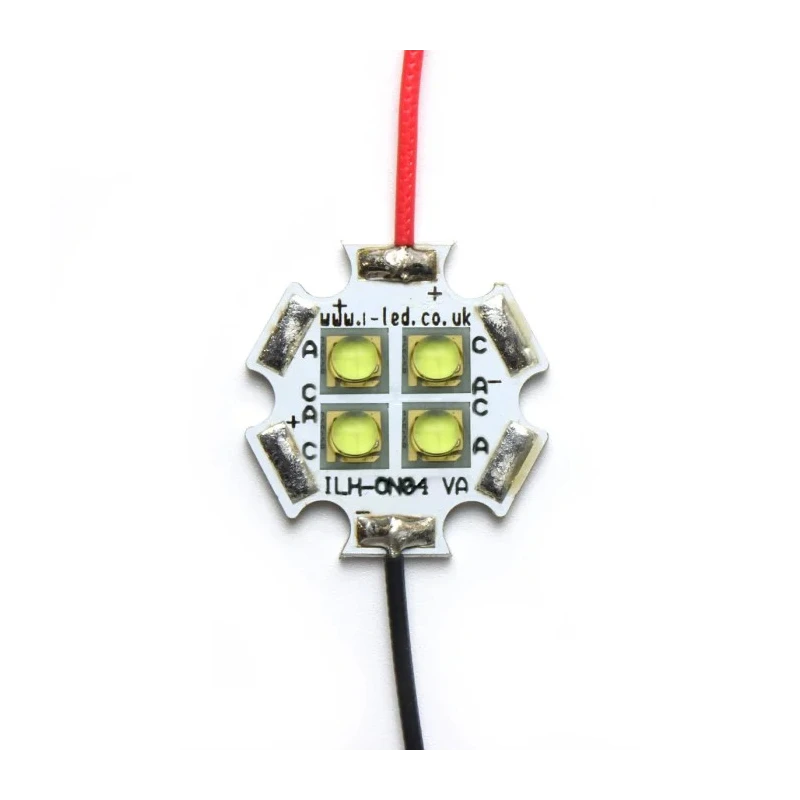

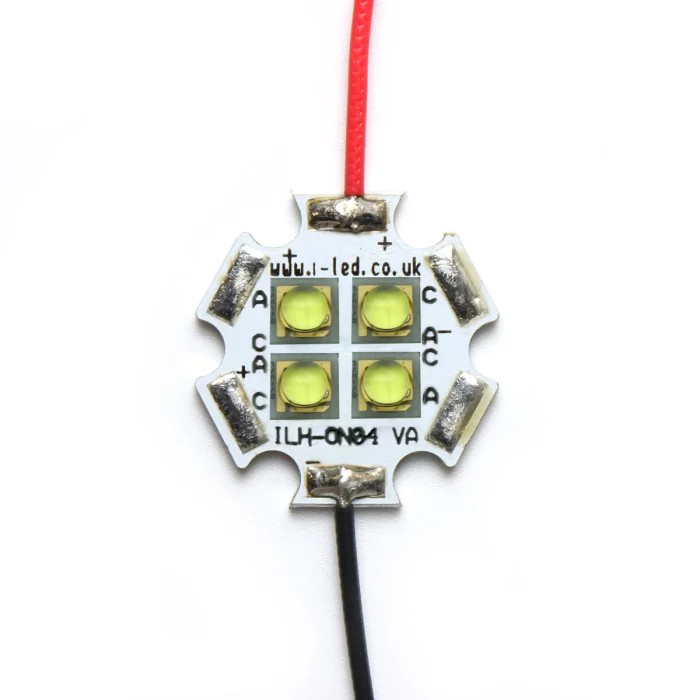

Intelligent LED Solutions OSLON 150 4+ PowerStar LED Array 4-LEDs White LED 5700K ILH-OW04-STWH-SC211-WIR200.

Intelligent LED Solutions ILH-OW04-STWH-SC211-WIR200. OSLON 150 4+ PowerStar LED Array is a high-performance LED array featuring 4 Oslon SSL 150 ThinGan (UX:3) LEDs. This LED array provides high luminous efficiency while maintaining cool operation at drive currents up to 1000mA due to the use of Osram’s latest power chip technology and low thermal resistance of 7 K/W. The LED array is mounted on an aluminum substrate for optimal thermal management and includes a constant current output design with onboard driver and secondary optics.

The compact design measures 20mm x 20mm x 3.85mm and is pre-wired with 200mm connecting wires for ease of use. Fixing holes compatible with M3 screws allow secure installation. With a colour temperature of 5700K and typical luminous flux of 576 lumens, it delivers bright, white LED light suitable for a variety of applications including general, decorative, task, spot, downlighter, retail, and entertainment lighting.

Built to last, this LED array has an expected lifetime of up to 100,000 hours maintaining 70% of original brightness. It is compliant with RoHS standards and carries a UK Energy Efficiency Label D. The OSLON 150 4+ PowerStar series can be linked together to form longer chains if needed for more extensive lighting installations. Proper heat sinking is recommended to prevent overheating and ensure reliable operation.

This product is ideal for industrial, commercial, and architectural lighting designs where efficiency, brightness, and compact form factor are critical. It supports multiple mounting and power supply options for versatile integration into LED lighting systems.

Set contains 1 OSLON 150 4+ PowerStar LED Array with 4 White LEDs at 5700K colour temperature. The product contains 4 Oslon SSL 150 ThinGan LEDs. Operates at a current of 1A with constant current output type. Colour temperature of 5700K delivering 576 lumens luminous flux.

Pre-wired with 200mm wires for quick connection. Compact dimensions of 20mm x 20mm x 3.85mm with fixing holes for M3 screws. LED voltage range from 10.8V to 14V with 8.68W power dissipation. Includes onboard driver and secondary optics for enhanced performance.

Complies with RoHS directive and UK Energy Efficiency Label D. Suitable for diverse applications such as general, decorative, task, spot, retail and entertainment lighting. Discover more Industrial LED solutions and related high-quality LED Arrays at EnvMart, your reliable source for advanced electronic components.
