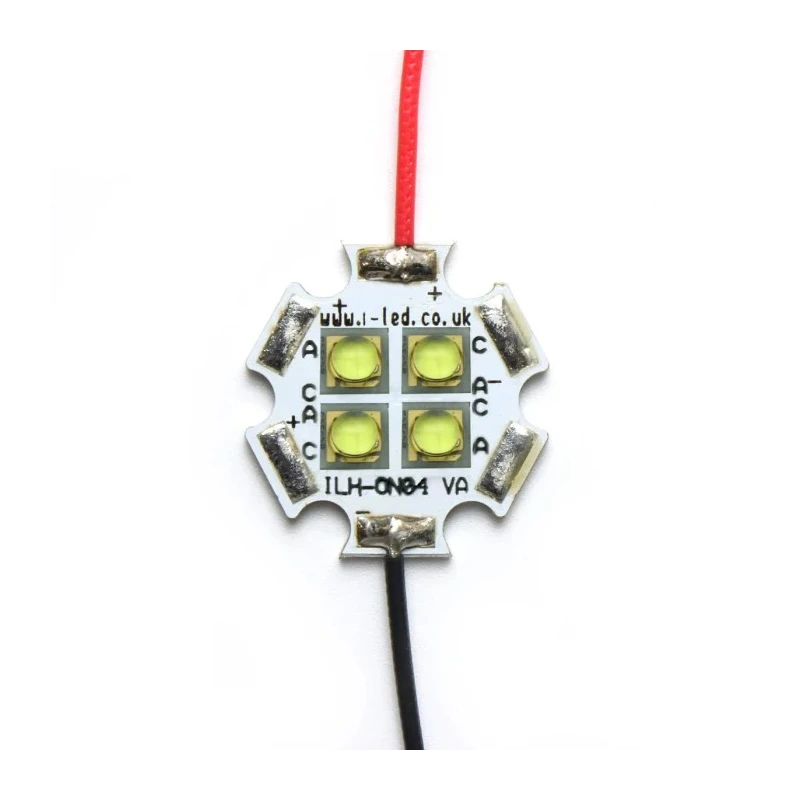

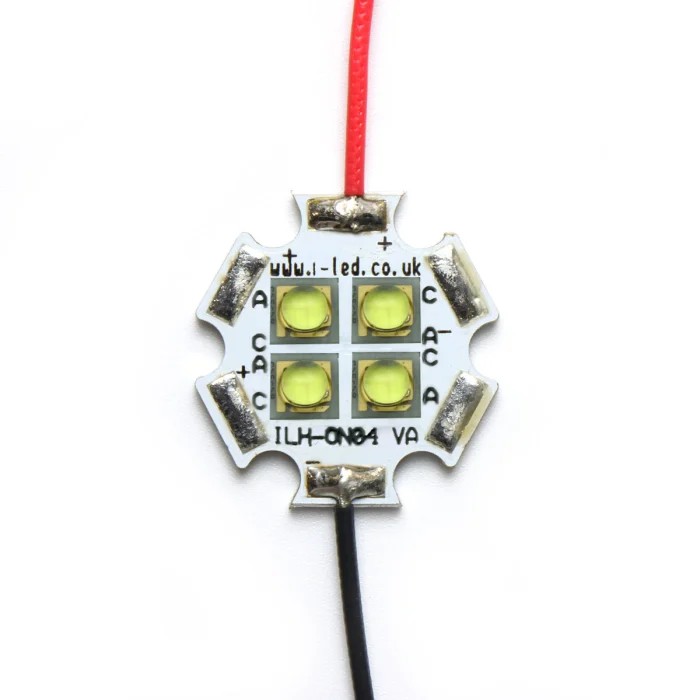

Intelligent LED Solutions OSLON 80 4+ PowerStar LED Array 4-LEDs Red, Constant Current, 1A, 5.88W ILH-ON04-HYRE-SC211-WIR200.

Intelligent LED Solutions ILH-ON04-HYRE-SC211-WIR200. is a high-performance LED array from the OSLON 80 4+ PowerStar series featuring 4 Oslon SSL 80 ThinGan red LEDs. This LED array is designed for efficient thermal management with an aluminium substrate, enabling cool running operation at currents up to 1A.

The product includes integral 80° silicone resin lenses for optimal beam shaping as well as secondary optics. Its compact dimensions of 20mm length, 20mm width, and 3.85mm height provide a versatile solution suitable for a wide range of lighting applications. It comes pre-wired with 200mm connecting wires, facilitating easy integration into lighting systems.

Mounting holes compatible with M3 screws enable straightforward, stable installation. The LED array operates with a constant current output and contains an onboard driver, which enhances reliability and operational safety. The typical luminous flux output is 1420 lumens, with a power dissipation rating of 5.88 watts, making it an efficient light source.

This LED array is RoHS compliant and designed without an automotive standard certification. Its operating LED voltages range from 8V to 10.4V. It is ideal for use in industrial, commercial, retail, decorative, task, spot, downlighting, and entertainment lighting applications, where robust and efficient LED arrays are required.

Warning: The PowerStar LED array must be mounted on suitable heat sinks to prevent overheating and potential damage. Use only with current-limited constant current power supplies to avoid failure.

The array features 4 Oslon SSL 80 ThinGan LEDs with integral 80° silicone resin lenses. Rated at 1A current with power dissipation of 5.88 watts for robust performance. Compact size of 20mm x 20mm x 3.85mm with pre-wired 200mm connecting wires for ease of installation.

Equipped with mounting holes suitable for M3 screws for secure attachment. Offers typical luminous flux of 1420 lumens with LED voltage of 10.4 and 8 volts. Includes onboard driver and secondary optics for enhanced light control.

Built on aluminium substrates to ensure superior thermal management and longevity. Suitable for general, decorative, task, spot, retail, entertainment, and downlighting applications. Compliance with RoHS standards ensures environmental safety.

Designed to operate with a constant current, ensuring reliability and consistent brightness. Explore more Intelligent LED Solutions products in the LED Arrays category on EnvMart.
