Intelligent LED Solutions OSLON Black PowerCluster 850 nm IR Cluster LED Lamp PCB Surface ILR-IO16-85NL-SC201-WIR200.
Specifications
| Country of Origin | India |
|---|---|
| Current Range | 100 to 1,000mA |
| Brand | Intelligent LED Solutions |
| Model | ILR-IO16-85NL-SC201-WIR200. |
| Mount Type | Surface |
| Series | OSLON Black PowerCluster |
| Number Of Leds | 16 |
| Package Type | PCB |
| Lifetime | Up to 100,000 hours to 70% of original brightness |
| Standards/Approvals | CE |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Maximum Supply Voltage | 51.2V |
| Peak Wavelength | 850nm |
| Angle of half intensity | 75° |
| Radiant Intensity | 9600mW |
| PowerCluster size (L x W x H) | 30x30x4mm |
Key Features
- Equipped with 16 Osram IR Oslon Black LEDs for powerful infrared output.
- Peak wavelength of 850 nm ensures optimal IR emission.
- Surface mount type with PCB package for easy integration.
- Radiant intensity rated at 9600 mW, suitable for demanding applications.
- Pre-wired with 200 mm wires for convenient installation.
- Compact cluster size measuring 30x30x4 mm with dome-shaped lenses.
- Operating current range from 100 to 1000 mA provides flexibility with drivers.
- Lifetime up to 100,000 hours maintaining 70% original brightness.
Product Description

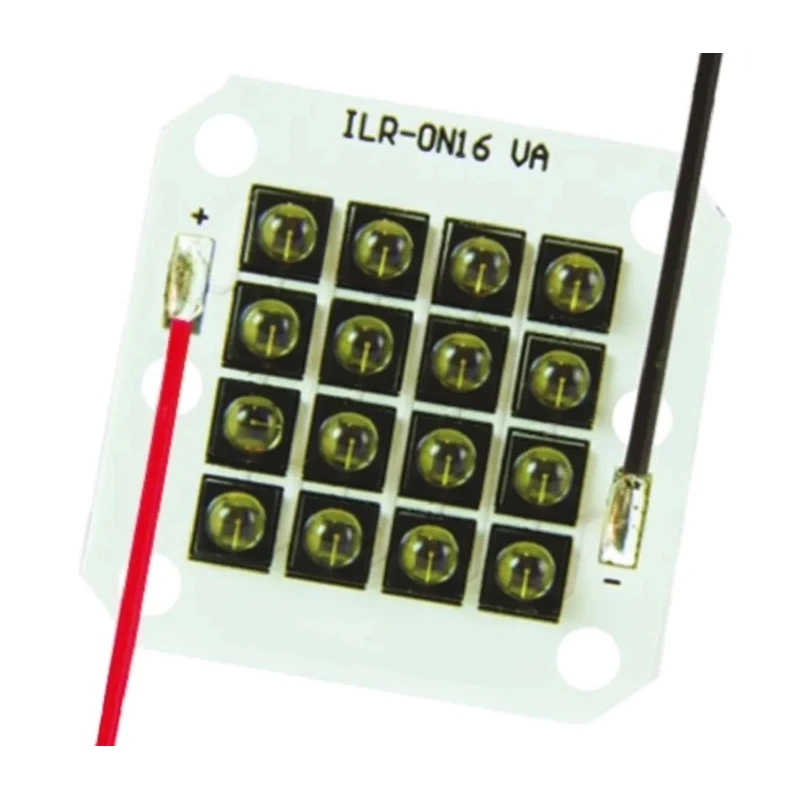

Intelligent LED Solutions ILR-IO16-85NL-SC201-WIR200. OSLON Black PowerCluster 850 nm IR Cluster LED Lamp PCB Surface is a high-power infrared LED array featuring 16 Osram IR Oslon Black LEDs. This cluster is designed to deliver intense infrared light output at a peak wavelength of 850 nm, optimized for surveillance, night vision, machine vision, and driver assistance systems.
The PowerCluster is built on an aluminium substrate to ensure excellent thermal management, crucial for maintaining longevity and performance during operation. Pre-wired with 200 mm connecting wires and supplied with mounting holes for M3 screws, it enables straightforward installation and integration on custom PCBs.
The compact 30x30x4 mm form factor with dome-shaped lenses provides a focused beam with a half-intensity angle of 75 degrees. The radiant intensity of 9600 mW combined with an adjustable operating current between 100 mA and 1000 mA allows for tailored illumination power, suitable for various industrial, commercial, and security applications.
This IR Cluster LED Lamp is RoHS compliant and CE approved, emphasizing safety and quality standards. It offers a lifetime of up to 100,000 hours to 70% of original brightness, ensuring reliable and long-term operation. Users should note the importance of attaching the cluster to an appropriate heat sink to avoid overheating and potential damage.
Equipped with 16 IR Oslon Black LEDs for enhanced IR illumination. Compact aluminium substrate for superior thermal control. Pre-wired 200 mm leads for ease of wiring. Mounting holes for secure PCB installation. Suitable for surveillance and machine vision applications.
CE marked and RoHS compliant for industrial use. Peak wavelength 850 nm with radiant intensity of 9600 mW. PowerCluster size 30x30x4 mm with dome-shaped lenses. Current range from 100 to 1000 mA for versatility. Explore further in the IR LEDs category at EnvMart for advanced LED solutions designed for electronics, lighting, and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED cluster is 850 nm, optimized for effective infrared emission.
The radiant intensity of the OSLON Black PowerCluster is rated at 9600 mW, making it suitable for demanding applications.
This model supports an operating current range from 100 mA to 1000 mA, providing flexibility for various applications.
The PowerCluster measures 30 mm x 30 mm x 4 mm, making it compact and easy to integrate into various setups.
This LED cluster uses a surface mount type with a PCB package, allowing for straightforward installation.
The expected lifetime of this infrared LED is up to 100,000 hours, maintaining 70% of its original brightness.
The angle of half intensity for the emitted light from this model is 75 degrees, providing a focused beam.
Yes, this product is CE approved and RoHS compliant, ensuring it meets safety and quality standards for industrial use.
The maximum supply voltage for this LED cluster is 51.2V, which should be adhered to for safe operation.
This infrared LED uses dome-shaped lenses, which help focus the emitted light effectively.
The model comes pre-wired with 200 mm leads and includes mounting holes for M3 screws, facilitating easy installation.
This cluster includes 16 Osram IR Oslon Black LEDs, designed for enhanced infrared illumination.
