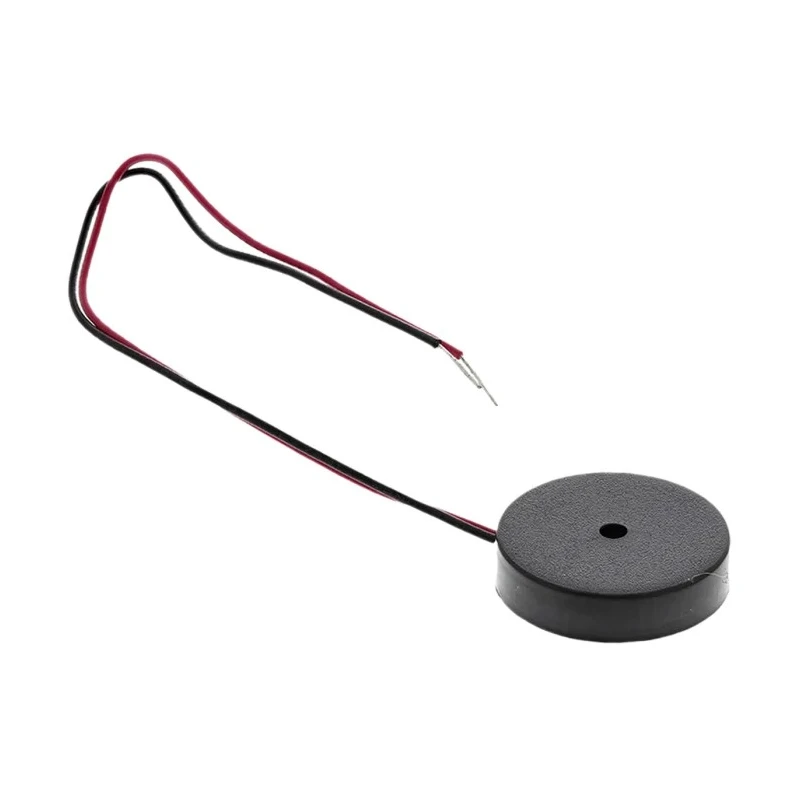

RS PRO 80 dB Panel Mount Square Wave External 4 mm Piezo Buzzer Component 30V Max 771-6913

RS PRO 771-6913 is a panel mount Piezo Buzzer Component designed for producing high sound output. It operates at a maximum supply voltage of 30V and outputs sound at 80 dB, which is ideal for alert and signaling applications in industrial, automation, and control systems.

This circular shaped buzzer has an external drive type that uses square wave tones delivering reliable performance in a compact size of 16.5 mm diameter and only 4 mm in height, making it easy to mount on panels.

The buzzer features wire terminal connections for straightforward installation, while it withstands operating temperature ranges from -30°C to 85°C, supporting robust usage even in harsher environments.

Rated at a capacitance of 11 nF and supply current of 9 mA, this component functions efficiently with external circuitry required for activation. Compliant with RoHS standards, the RS PRO 771-6913 piezo buzzer suits applications in electronics, HVAC, manufacturing systems, alarms, and general industrial signaling.

This buzzer component operates using an external drive and produces a square wave tone. The device has a diameter of 16.5 mm, making it compact for panel mount installations. It features wire terminal termination style for easy electrical connectivity.

The buzzer operates reliably between -30°C and 85°C operating temperatures. The supply current consumption is low at 9 mA, ensuring energy efficiency. Capacitance is rated at 11 nF, suitable for consistent operation at 5 kHz frequency.

This RoHS-compliant circular transducer is designed for high sound output applications. The product requires external circuitry for operation and is suitable for varied industrial uses. Explore the range of RS PRO components on EnvMart to find other high-quality electronics and passive components for your industrial and electronic assembly requirements.
