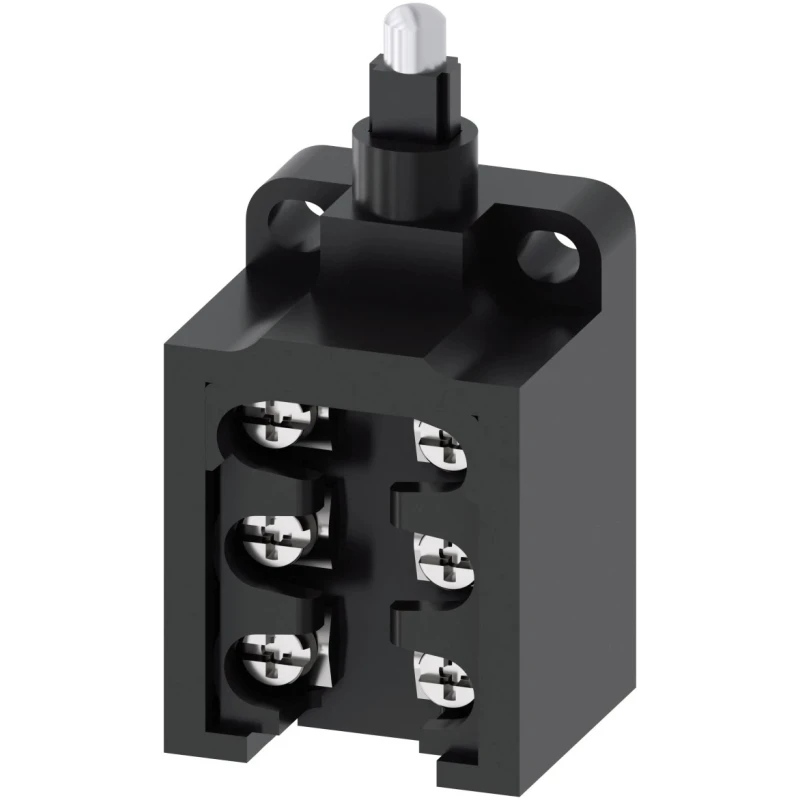

Siemens 3SE5 Series Plunger Limit Switch, 1 NO/2 NC Contact Configuration, IP20/IP10, Plastic Housing, 400V 3SE5250-0MC05
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Length | 30mm |
| Model | 3SE5250-0MC05 |
| Depth | 48.5mm |
| IP Rating | IP20, IP10 |
| Width | 20mm |
| Housing Material | Plastic |
| Series | 3SE5 |
| Maximum Operating Temperature | 85°C |
| Mounting Orientation | Universal |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Plunger |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | CE, CSA, EAC, EN, IEC, RoHS, UL, CCC |
| Mechanical Life | 15000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Conduit Entry | M20 x 1.5 |
Key Features
- Plunger actuator type ensures precise switching action.
- Rated for 400V AC and 10A switching current for heavy-duty use.
- Plastic housing with IP20 and IP10 protection ratings for safe operation.
- Slow action contact type provides controlled switching to prevent contact chatter.
- Screw terminal connections enable secure wiring.
- Compact dimensions with 30mm length, 20mm width, and 48.5mm depth.
- Wide operating temperature range from -25°C to 85°C ensures versatility in various environments.
- Designed for up to 15 million mechanical life cycles assuring durability.
Product Description
Siemens 3SE5250-0MC05 is a plunger type limit switch designed for industrial automation and electrical control systems. It features a plastic housing that provides IP20 and IP10 ingress protection, making it suitable for use in moderately protected environments. The switch supports a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts with slow action contact type to ensure reliable switching in critical applications.
Operating at up to 400V AC and rated for 10A switching current, this limit switch is capable of handling significant electrical loads. Its compact size with dimensions 30mm length, 20mm width, and 48.5mm depth allows installation in tight spaces. The device operates reliably within a temperature range of -25°C to 85°C, suitable for diverse environments.
Designed for high durability, the Siemens 3SE5 series limit switches can endure up to 15 million mechanical life cycles. The universal mounting capability provides flexible installation options, reducing setup time and cost. The screw terminal connection type ensures secure and easy wiring. This model incorporates a chlorinated rubber diaphragm improving performance in cold or aggressive environments.
The 3SE5 series is compliant with multiple international standards including CE, CSA, EAC, EN, IEC, RoHS, UL, and CCC, assuring safety and regulatory compliance for electrical and automation equipment manufacturers.
Plunger actuator type for precise mechanical actuation. Rated switching current of 10A and voltage up to 400V AC. Plastic enclosure rated IP20 and IP10 protection. Slow action contacts with 1 NO and 2 NC configuration. Compact size ideal for space-constrained applications.
Wide temperature tolerance from -25°C to 85°C. High mechanical life of 15 million cycles for longevity. Universal mounting orientation enhances flexibility. Secure screw terminal wiring connections. Conforms to global safety and quality standards.
Commonly used in industrial, manufacturing, machinery control, and automation systems, this limit switch provides dependable position detection and circuit control. It is ideal for applications requiring reliable actuation feedback and mechanical robustness. Choose Siemens 3SE5250-0MC05 for quality and performance in electrical switching solutions. Browse more Siemens Limit Switches and related control devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts.
The dimensions of this unit are 30mm in length, 20mm in width, and 48.5mm in depth.
It is rated for a maximum switching voltage of 400V AC.
The Siemens 3SE5250-0MC05 has a rated switching current of 10A.
This model uses a plunger actuator type for precise mechanical actuation.
The operating temperature range for this unit is from -25°C to 85°C.
It features a plastic housing with IP20 and IP10 ingress protection ratings.
This limit switch is designed for up to 15 million mechanical life cycles.
It uses screw terminal connections for secure wiring.
This model complies with multiple international standards including CE, CSA, EAC, EN, IEC, RoHS, UL, and CCC.
The 3SE5250-0MC05 has a universal mounting orientation, providing flexibility in installation.
This model features slow action contacts to ensure reliable switching.
