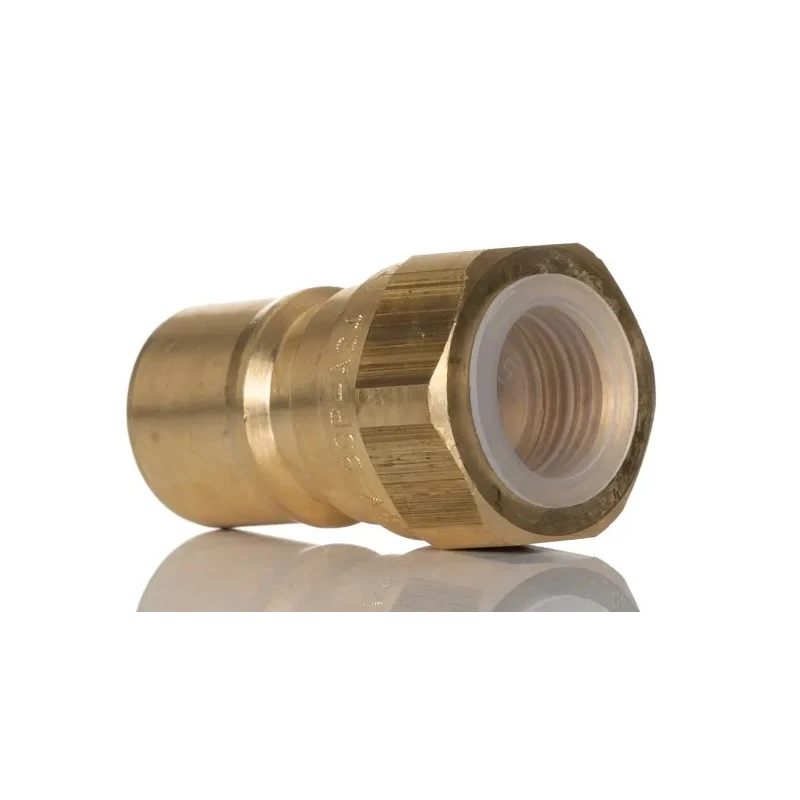

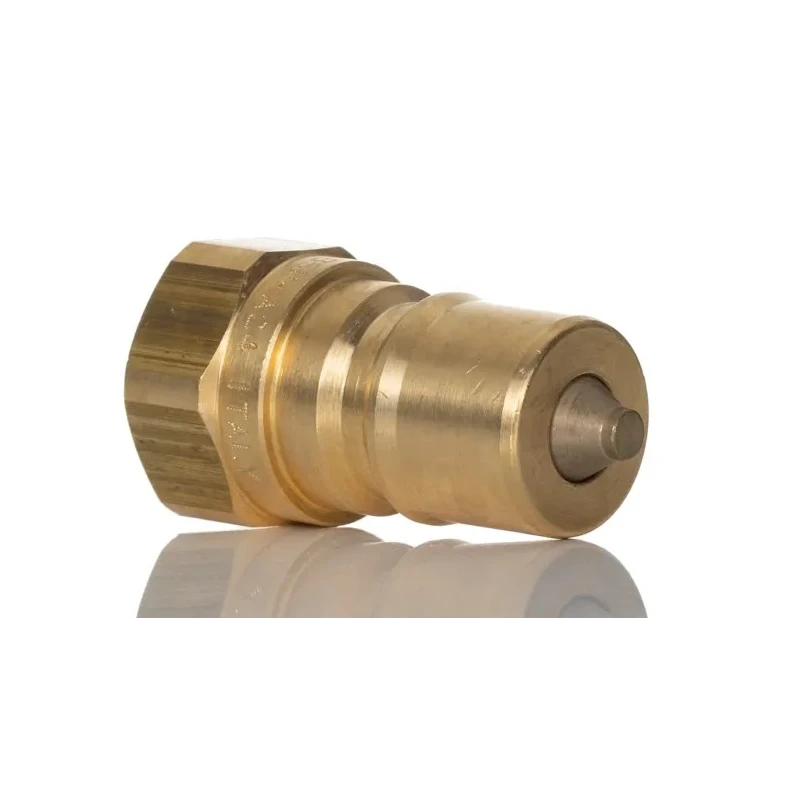

RS PRO Brass Hydraulic Quick Connect Coupling Male BSP 3/8 in 160 bar 768-5822
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Material | Brass |
| Maximum Operating Pressure | 160 bar |
| Model | 768-5822 |
| Series | RS PRO |
| Maximum Operating Temperature | 180°C |
| Thread Size | 3/8 in |
| Sub Type | Union |
| Minimum Operating Temperature | -15°C |
| Lock Type | Ball Lock |
| Thread Standard | BSP |
| Thread Gender | Male |
| Standards and Approvals | ISO 7241-A |
| Faster Brass Male Hydraulic Quick Connect Coupling, G 3/8 MaleBrand | Faster |
Key Features
- Constructed from strong brass material for excellent durability.
- Operates at a maximum pressure of 160 bar for high-pressure hydraulic systems.
- Features a male BSP thread size of 3/8 inch for compatibility.
- Designed with steel locking balls and FKM seals for secure, leak-free connections.
- Suitable for operating temperatures ranging from -15°C to 180°C.
- Manufactured according to ISO 7241-A standards for quality assurance.
- Provides easy connection and disconnection with ball lock type safety.
- Ideal for use in hydraulic systems, fluid transfer, HVAC, agricultural, and industrial machinery.
Product Description
RS PRO 768-5822 Brass Hydraulic Quick Connect Coupling Male BSP 3/8 in 160 bar is a professional-grade hydraulic fitting designed to provide reliable and secure connection and disconnection in high-pressure hydraulic systems.
This coupling is constructed from robust brass material combined with steel locking balls, an FKM fluoroelastomer seal, and PTFE anti-extrusion rings ensuring durability, chemical resistance, and excellent sealing capabilities. The ball lock design prevents accidental disconnections even in the presence of residual pressure, ensuring operator safety during use.
The coupling supports a maximum operating pressure of 160 bar and is rated for temperature extremes from -15°C to 180°C, making it suitable for a wide range of industrial, agricultural, HVAC, and fluid power applications. It features a male BSP thread size of 3/8 inch and conforms to ISO 7241-A standards, guaranteeing interchangeability and compliance with international quality norms.
With its construction from high-quality materials and thoughtful design, this coupling provides a secure, leak-free solution for hydraulic quick connections. It is easy to connect and disconnect, suitable for use in demanding environments requiring fast maintenance and minimal downtime.
Constructed from brass with steel locking balls for strength and durability. FKM fluoroelastomer seal and PTFE rings provide excellent sealing and extrusion resistance. Rated for 160 bar maximum operating pressure and temperatures from -15 to 180°C.
Male BSP 3/8 inch thread size compatible with standard hydraulic fittings. Designed to prevent connection under residual pressure for safe operation. Fully conforms to ISO 7241-A standards for compatibility and interchangeability.
Ideal for hydraulic systems, fluid transfer, HVAC, agricultural machinery, and industrial applications. Available as part of EnvMart’s extensive range of precision hydraulic components designed to meet professional industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic coupling is 160 bar.
This model features a male BSP thread size of 3/8 inch.
It is constructed from brass, with steel locking balls and FKM seals for secure connections.
The coupling is rated for operating temperatures ranging from -15°C to 180°C.
It conforms to ISO 7241-A standards, ensuring compatibility and interchangeability.
The ball lock design prevents accidental disconnections even under residual pressure, enhancing operator safety during use.
It is ideal for use in hydraulic systems, fluid transfer, HVAC, agricultural machinery, and industrial applications.
It includes FKM fluoroelastomer seals and PTFE anti-extrusion rings, providing excellent sealing capabilities.
The country of origin for this coupling is Italy.
This model uses a ball lock type for secure connections.
The model number of this hydraulic coupling is 768-5822.
Yes, it is designed for easy connection and disconnection, suitable for demanding environments requiring fast maintenance.
