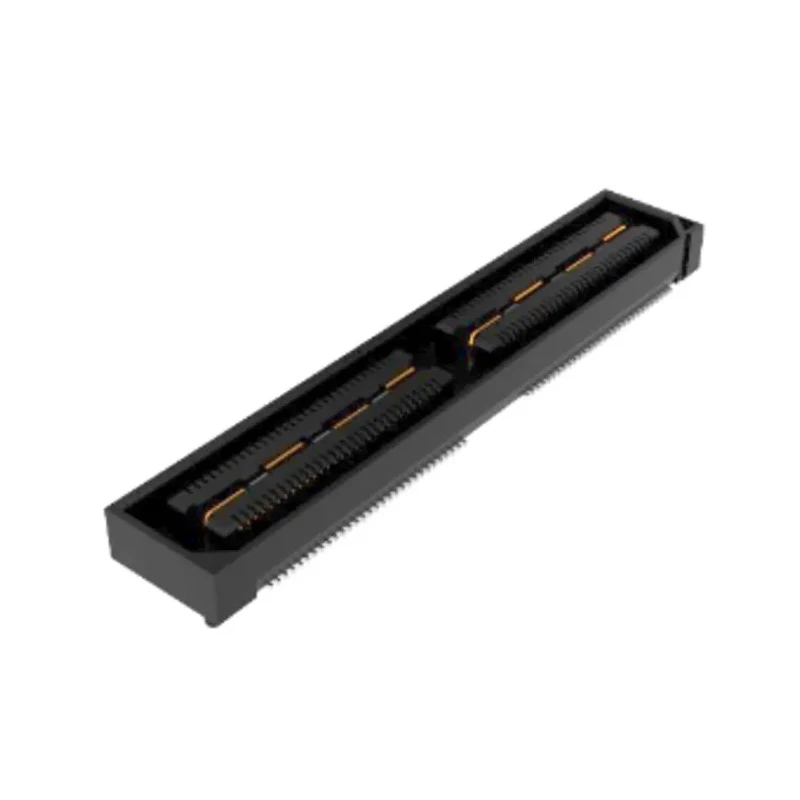

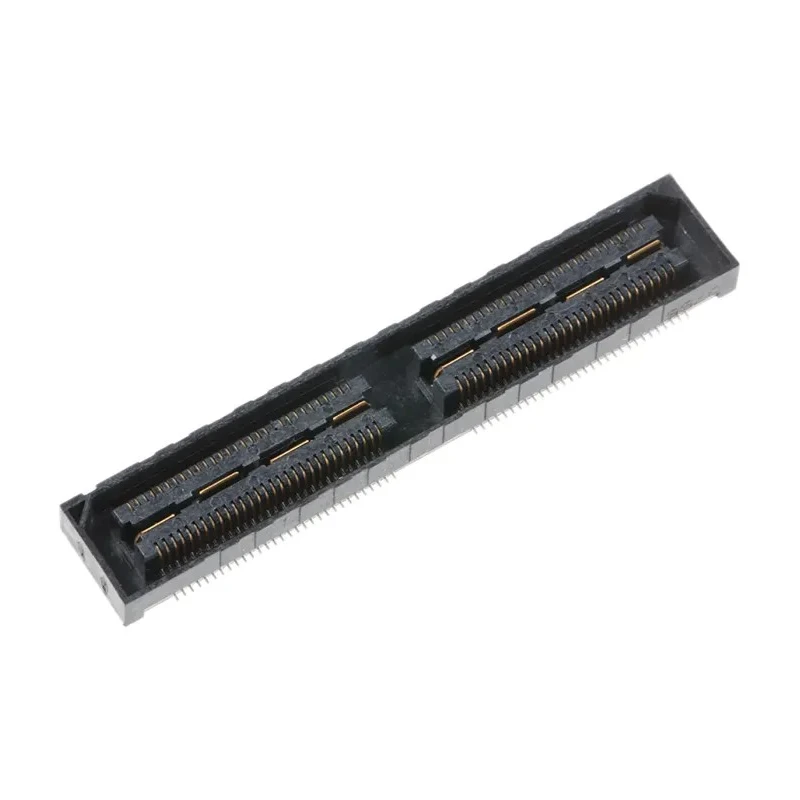

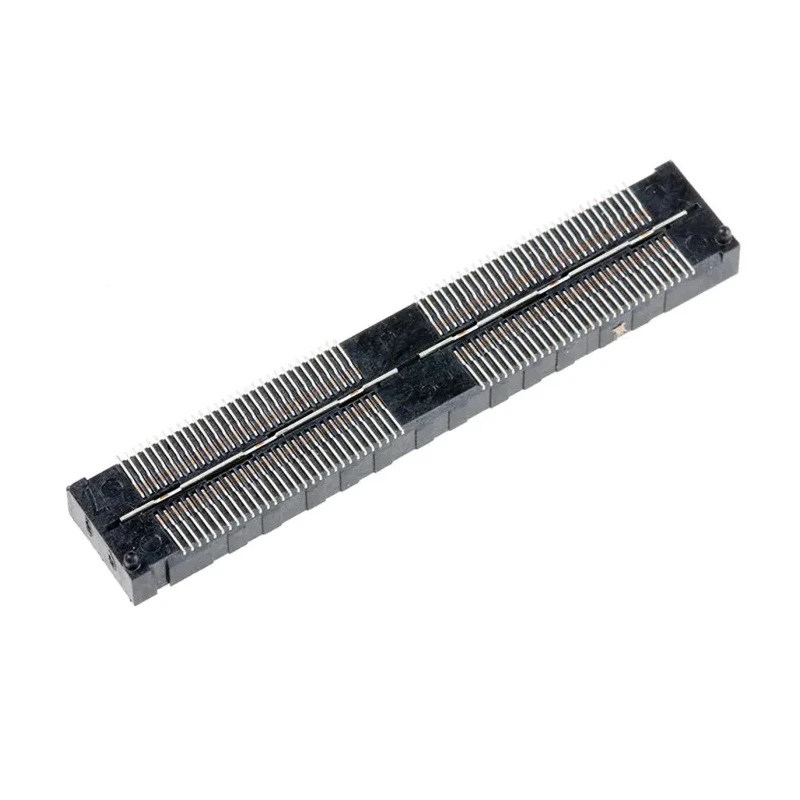

Samtec Straight Surface PCB Socket 120-Contact 2 Row 0.5 mm Pitch Solder Termination QSH-060-01-L-D-A

Samtec QSH-060-01-L-D-A is a high-performance straight surface PCB socket designed for advanced electronic interconnection needs. It features 120 contacts arranged in 2 rows with a precise 0.5 mm pitch that supports solder termination methods, allowing for strong and reliable surface mounting to printed circuit boards. The robust liquid crystal polymer housing ensures excellent mechanical strength and dimensional stability even under harsh industrial environments.

The gold-over-tin plated bronze contact pins provide outstanding conductivity and resistance to corrosion, enabling efficient signal transmission with minimal loss. This socket is part of the QSH series and supports a current carrying capacity of 12A and a voltage rating of 125V AC, making it suitable for low-voltage board-to-board electronic connections. It operates reliably in extreme temperature ranges from -55°C to 125°C, which expands its usability in demanding applications.

The blade-and-beam design ensures precise coupling with matching PCB headers, enabling a secure electrical connection with signal integrity at speeds up to 18Gbps. The socket’s integrated metal plate adds support for power or ground plane connections, improving overall electrical performance. Its compact stack height of 5 mm when mated maximizes the available PCB space, critical for modern electronic device design.

Common applications include military communication systems, aerospace instruments, consumer electronics, and medical devices where reliable, high-speed PCB connections are essential. The component complies with RoHS standards, supporting environmentally friendly production requirements.

Supports 12A current carrying capacity with 125V AC voltage rating. Constructed with liquid crystal polymer housing for durability and stability. Gold over tin plated bronze contacts ensure excellent conductivity and corrosion resistance.

Suitable for board-to-board connector systems with straight orientation. Operates reliably within a temperature range of -55°C to 125°C. Uses blade-and-beam design for precise coupling and signal integrity. RoHS compliant, ensuring environmental and safety standards.

Ideal for military, aerospace, consumer electronics, and medical device applications. 125V rating makes it suitable for low-voltage electronics circuits. Explore our extensive selection of PCB Sockets and connectors on EnvMart for high-quality electronic components that meet industrial and commercial standards.
