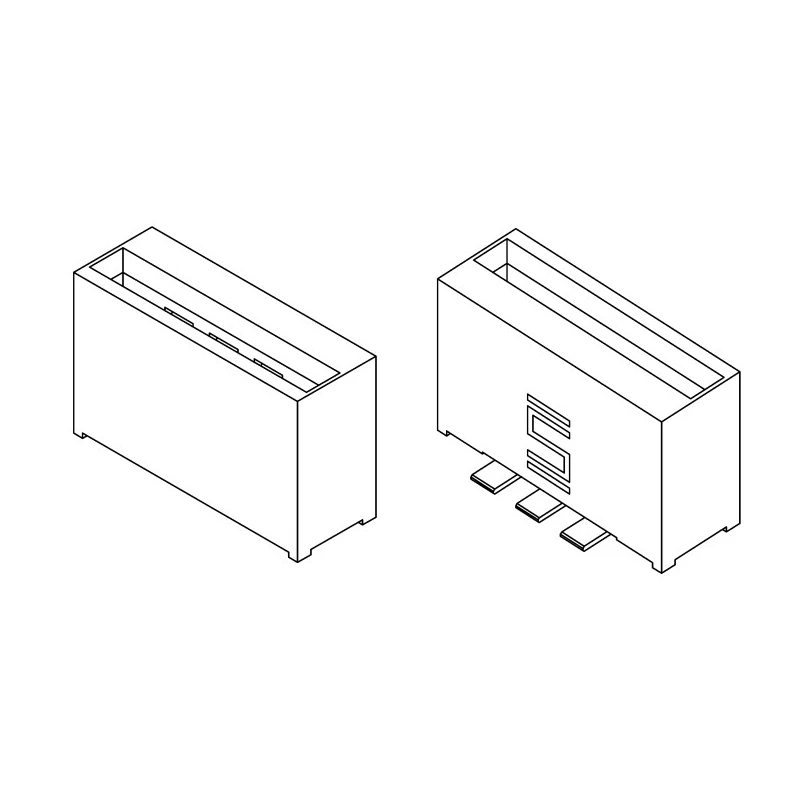

Samtec PEC Series Straight Edge Connector Female, Surface Mount, 3-Contacts, 2.54 mm Pitch, 1 Row, Solder PEC-03-02-T-S-LC

Samtec PEC-03-02-T-S-LC is a high-quality edge connector from the PEC series, designed for reliable and compact surface mounting on printed circuit boards. Featuring a female connector gender with 3 contacts in a single row, it provides a 2.54 mm pitch to accommodate standard edge cards of 0.8 mm thickness. The connector is engineered for use in electronic components requiring efficient power and signal interconnections with a current capacity of 9.8A and voltage rating of 250V AC.

Constructed using beryllium copper alloy contacts plated with tin over nickel, this connector ensures excellent electrical connectivity and corrosion resistance. The housing is crafted from liquid crystal polymer, providing high mechanical strength and temperature resistance, capable of tolerating -55°C up to a maximum of 105°C operating conditions.

The solder termination type facilitates secure attachment to printed circuit boards, making it well-suited for surface mount technology applications. Additionally, the SMT version of the PEC series includes locking clips to enhance retention stability during assembly and operation.

Dimensionally, the connector features a board height of 7.9 mm and a compact body width of 4.45 mm, with a post length of 1.86 mm for through-hole mounting versions. The PEC Series is known for robustness, making it suitable for industrial, manufacturing, and electronic assembly applications where reliable edge card interfaces are necessary.

Supports 9.8A current carrying capacity per contact. Beryllium copper alloy contacts ensure durability and conductivity. Tin over nickel plating provides corrosion protection. Stable operation in temperature range of -55°C to 105°C.

Liquid crystal polymer housing offers mechanical and thermal resilience. Solder termination allows secure PCB mounting. Compatible with 0.8 mm thick edge cards. Locking clips on SMT versions improve retention. Compact size with 2.54 mm pitch for space-efficient layouts.

This connector is ideal for electronic component manufacturing, power supply connections, and other applications requiring robust edge card connectors. Explore the full range of Samtec PEC series Edge Connectors and electronic components on EnvMart for various industrial and commercial assembly needs.
