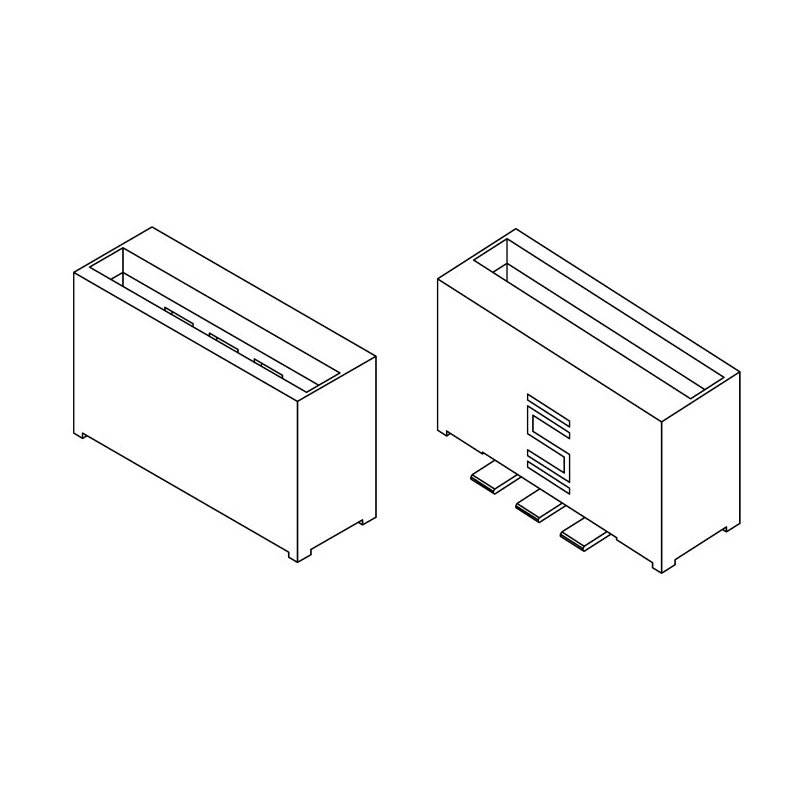

Samtec PEC Series Straight Edge Connector Female, Surface Mount, 3 Contacts, 2.54 mm Pitch, 1 Row, Solder PEC-03-02-T-S-LC

Samtec PEC-03-02-T-S-LC is a high-quality edge connector designed for industrial and electronic applications requiring reliable female connections on surface mount PCBs. This straight orientation connector features 3 contacts arranged in a single row with a 2.54 mm pitch ensuring compatibility with standard PCB layouts.

Manufactured using beryllium copper alloy contacts plated with tin over nickel, this connector offers excellent electrical performance and resistance to corrosion. Its liquid crystal polymer housing provides mechanical strength and thermal stability, supporting an operating temperature range from -55°C to 105°C. It is rated for currents up to 9.8A and voltage up to 250V AC, making it suitable for power and signal transmission in diverse industrial environments.

The termination type is solder, facilitating secure mounting on PCBs, and it is tailored to accommodate 0.8 mm thick cards with locking clip designs for enhanced connection integrity. The PEC series connectors include polarization ribs to prevent incorrect mating and support various configurations.

Applications include industrial electronics, control gear, instrumentation, automation systems, and power electronics. Its robust design supports long-term reliability under thermal and mechanical stresses in demanding conditions.

Straight orientation with 3 female contacts and 1 row. Beryllium copper alloy contacts plated with tin over nickel. Surface mount type with solder termination. Operating temperature range -55°C to 105°C. Rated for 9.8A current and 250V AC voltage.

Housing made of liquid crystal polymer. Standard 2.54 mm pitch between contacts. PEC series interface designed for power edge card applications. Explore the full range of Samtec Edge Connectors at EnvMart for reliable, high-performance connectivity solutions.
