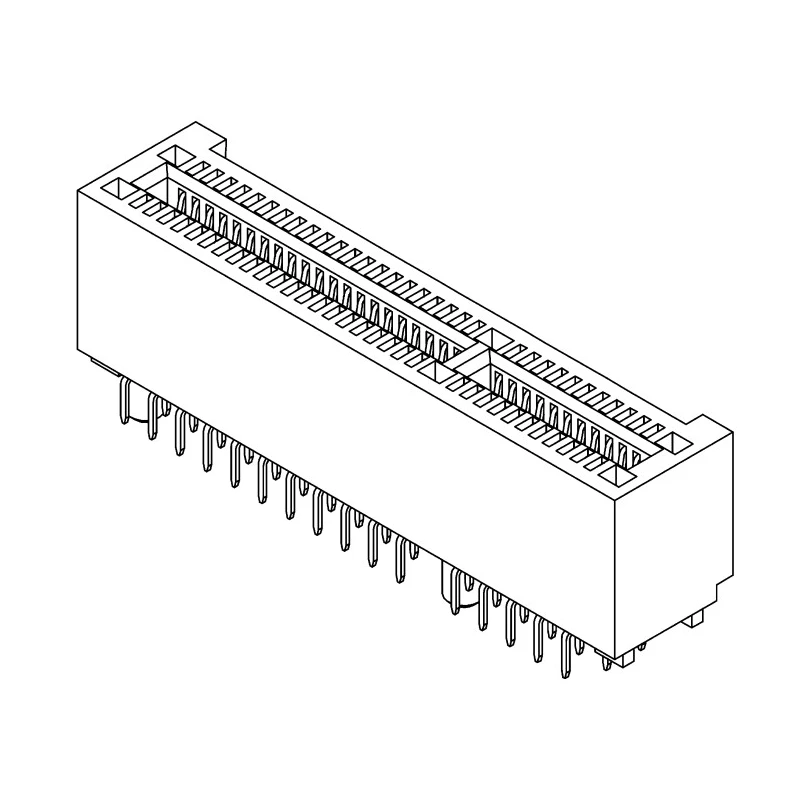

Samtec PCIe Series Straight Edge Connector Female Through Hole 164-Contacts 1 mm Pitch 2 Row Solder PCIE-164-02-F-D-TH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 215V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.5A |
| Model | PCIE-164-02-F-D-TH |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 164 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCI EXPRESS CARD |
| Card Thickness | 1.6mm |
Key Features
- This edge connector is designed for PCI Express card sockets.
- It features a straight orientation and through-hole mount type.
- Conductive contacts are phosphor bronze plated in gold over nickel for reliable connectivity.
- Supports a nominal operating voltage of 215V and current rating of 2.5A.
- The connector is suitable for cards with 1.6 mm thickness.
- Housing is made of durable nylon material ensuring mechanical stability.
- Operating temperature ranges from -55°C to 125°C, suitable for diverse environments.
- Termination is solder type enabling a secure PCB connection.
Product Description
Samtec PCIE-164-02-F-D-TH is a PCIe Series Straight Edge Connector Female with through-hole mounting. It supports 164 contacts arranged in 2 rows with a 1 mm pitch, delivering a precise and robust connection for PCI Express card sockets. The connector is engineered to meet demanding electrical and mechanical requirements, offering a nominal card thickness of 1.6 mm and insertion depth of 8.0 mm.
The contacts are made of phosphor bronze and plated with gold over nickel, ensuring excellent conductivity and corrosion resistance. The housing material is nylon, providing durability and heat resistance suitable for industrial and electronic assembly environments.
Operating temperature ranges from -55°C minimum to 125°C maximum, making the connector apt for use within a broad spectrum of industrial and commercial electronics. Its electrical rating includes a voltage of 215 V and a current capacity of 2.5 A. The termination type is solder, compatible with standard PCB manufacturing processes.
This PCI EXPRESS CARD connector from Samtec complies with technical standards to support reliable PCI Express functionality. The straight orientation and through-hole mounting type facilitate easy integration in electronic assemblies.
This edge connector suits industrial, electronic, and communication industry applications. It enables secure data and power transmission in PCIe card assemblies. Gold plating enhances signal integrity and prevents oxidation.
Robust nylon housing ensures mechanical protection against wear and tear. Operating temperature range supports usage in harsh thermal conditions. Through-hole mount allows soldered PCB integration for stable electrical connections.
Ideal for manufacturing, testing, and repair of PCIe systems.
For users seeking high-quality, certified-Edge Connectors for PCI Express applications, the Samtec PCIE-164-02-F-D-TH offers industry-grade reliability and performance. Browse more electronic connectors and components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a nominal operating voltage of 215V.
It has a current rating of 2.5A.
This model features a 1 mm pitch and has 164 contacts arranged in 2 rows.
The contacts are made of phosphor bronze plated with gold over nickel, while the housing is constructed from nylon.
It operates within a temperature range of -55°C to 125°C.
The termination type is solder, allowing for secure PCB connections.
It is suitable for cards with a thickness of 1.6 mm.
Yes, it features a through-hole mount type for easy integration into PCBs.
The connector has a straight orientation.
The country of origin for this connector is India.
It is suitable for industrial, electronic, and communication industry applications, particularly in PCIe card assemblies.
Gold plating enhances signal integrity and prevents oxidation, ensuring reliable connectivity.
