Samtec MEC1 Series Straight Edge Connector Female Surface Mount 60-Contacts 1 mm Pitch 2 Row Solder

Free Delivery in India | Lowest Global Shipping Charges

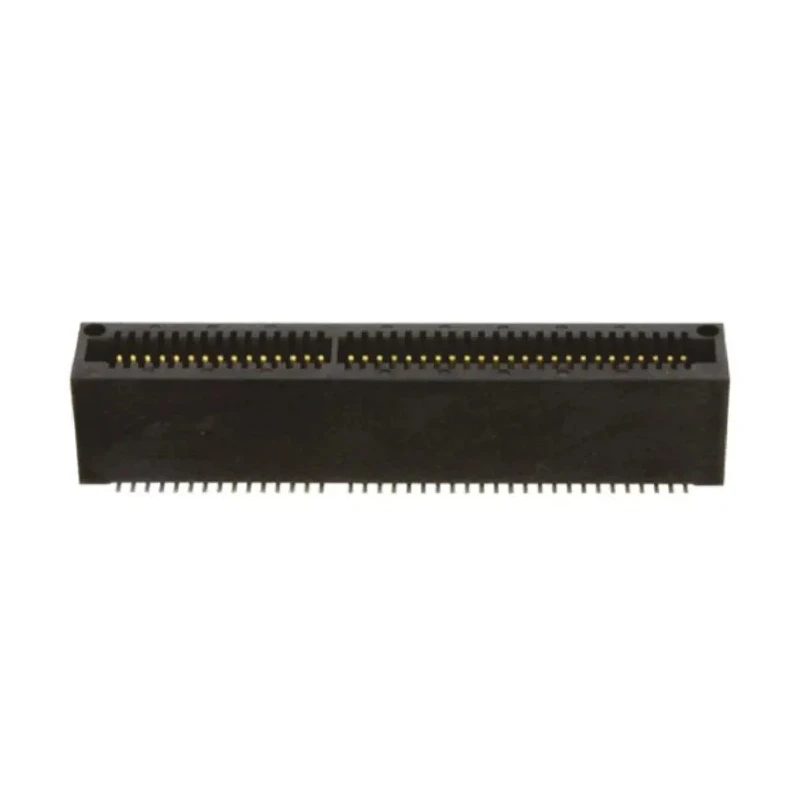

Samtec MEC1 Series Straight Edge Connector Female Surface Mount 60-Contacts 1 mm Pitch 2 Row Solder

Name: Samtec MEC1 Series Straight Edge Connector Female Surface Mount 60-Contacts 1 mm Pitch 2 Row Solder
Brand: Samtec
SKU: 366725
Price: 8.14 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	Samtec
Orientation	Straight
Current	2A
Model	MEC1
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	MEC1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold over Nickel
Number of Contacts	60
Contact Gender	Female
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

Designed for surface mounting on PCBs.
Features 60 contacts with 1 mm pitch spacing.
Double row female connector ensuring robust electrical connections.
Contact plating consists of gold over nickel for corrosion resistance.
Contact material made from beryllium copper alloy for conductivity.
Supports a current rating of 2A and voltage rating of 300V AC.
Operates in temperatures ranging from -55°C to 125°C effectively.
Housing made from liquid crystal polymer ensuring durability and insulation.

Product Description

Samtec MEC1-130-02-L-D-A is a Straight Edge Connector Female designed with surface mounting configuration. This edge connector features 60 gold-over-nickel plated contacts arranged in two rows with a precise 1 mm pitch, ideal for high-density PCB applications. The contact materials are made from beryllium copper alloy, providing excellent electrical conductivity and mechanical resilience.

The connector supports a current carrying capacity of 2A and can reliably operate up to 300V AC, making it suitable for various industrial, electronic, and manufacturing applications. Its operating temperature range from -55°C to 125°C ensures performance stability under demanding environmental conditions.

The housing is crafted from liquid crystal polymer, granting enhanced mechanical strength and insulation properties. The connector is specifically designed for edge cards with 1.6 mm thickness, widely used in computer and communication equipment.

The termination type is solder, making it compatible with standard wave or hand soldering processes. The product complies with no specific standards or approvals but meets industry expectations for quality and reliability.

Designed for surface mounting on PCBs. Features 60 contacts with 1 mm pitch spacing. Double row female connector ensuring robust electrical connections. Contact plating consists of gold over nickel for corrosion resistance.

Contact material made from beryllium copper alloy for conductivity. Supports a current rating of 2A and voltage rating of 300V AC. Operates in temperatures ranging from -55°C to 125°C effectively. Housing made from liquid crystal polymer ensuring durability and insulation.

Compatible with edge cards of 1.6 mm thickness.

This Samtec MEC1 Series Edge Connector is widely used in electronics manufacturing, telecommunications equipment assembly, computing devices, and other industrial electronic applications where reliable edge card connection is critical. Its robust electrical and mechanical characteristics make it suitable for demanding laboratory, commercial, and industrial environments.

Explore the full range of Samtec connectors and electronic components at EnvMart for professional-grade quality and reliability.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a current rating of 2A, making it suitable for various electronic applications.

The connector has a voltage rating of 300V AC, allowing it to be used in applications that require this level of voltage.

The contacts are arranged with a pitch spacing of 1 mm, which is ideal for high-density PCB applications.

The contact material is made from beryllium copper alloy, and the housing is crafted from liquid crystal polymer, providing insulation and mechanical strength.

It operates effectively in temperatures ranging from -55°C to 125°C, ensuring performance stability under various environmental conditions.

This connector features 60 contacts, arranged in two rows, allowing for robust electrical connections.

The termination type is solder, making it compatible with standard wave or hand soldering processes.

It is designed to be compatible with edge cards that have a thickness of 1.6 mm.

The orientation of this connector is straight, suitable for direct mounting on PCBs.

The contact plating consists of gold over nickel, which provides corrosion resistance and enhances conductivity.

The connector is manufactured in India, ensuring compliance with local production standards.

This connector is widely used in electronics manufacturing, telecommunications equipment assembly, and computing devices where reliable edge card connections are critical.
