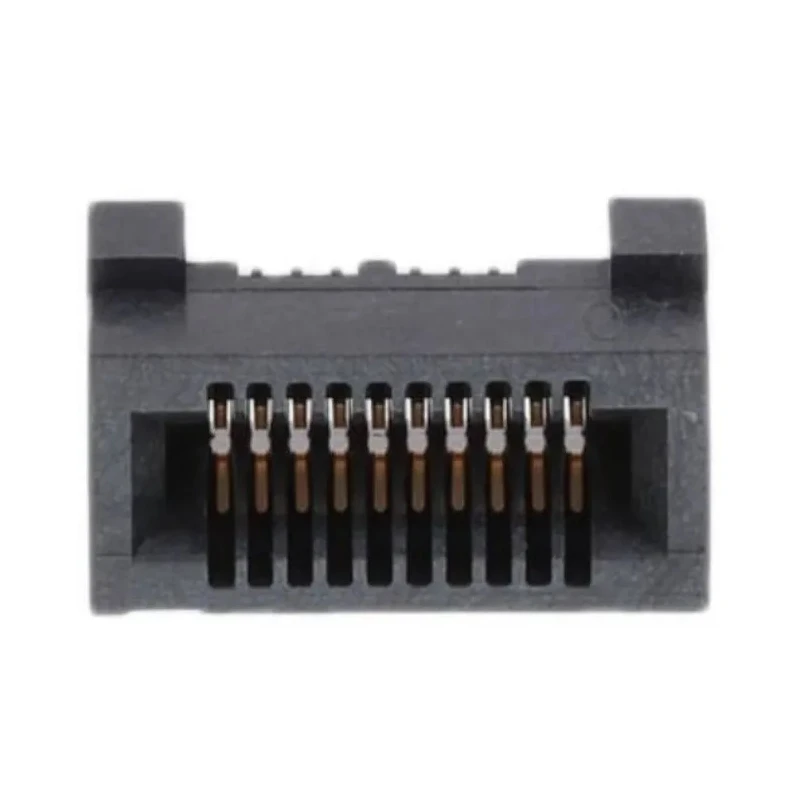

Samtec Series Straight Edge Connector Female, Surface Mount, 20 Contacts, 0.8 mm Pitch, 2 Row, Gold over Nickel HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.1A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCI, PCIe |
| Card Thickness | 1.6mm |
Key Features
- Features a straight orientation with 2 rows of contacts.
- Contacts are made from beryllium copper alloy with gold over nickel plating for optimal conductivity.
- Supports a maximum current rating of 3.1 A and voltage rating of 240 V AC.
- Designed with a low profile and terminated by surface mount technology for easy PCB installation.
- Suitable for high-temperature environments up to 125°C.
- Housing constructed from liquid crystal polymer for durability.
- Card thickness compatible with 1.6 mm PCBs.
- Includes keying feature for proper mating and connection assurance.
Product Description
Samtec HSEC8-DV Series Straight Edge Connector HSEC8-DV is a female edge connector with 20 contacts arranged in 2 rows and a 0.8 mm pitch, designed for surface mount applications. It operates at 240 V AC and supports a current rating of 3.1 A, making it suitable for demanding electronic and industrial use cases.
The connector features beryllium copper alloy contacts with a high-quality gold over nickel plating, ensuring excellent electrical conductivity and corrosion resistance. The termination type is surface mount, which provides ease of assembly and stable connections on printed circuit boards.
Built with a housing made of liquid crystal polymer, this connector offers strength and high-temperature resistance with an operating temperature range from -55°C to +125°C. The connector's low-profile design and keying mechanism prevent mismating and enhance reliability.
This series is ideal for applications in automation, electronics manufacturing, and industrial machinery requiring compact, reliable connections with excellent electrical performance. It supports PCI and PCIe card types, enhancing compatibility in computing devices.
Straight orientation with 20 contacts in 2 rows. Beryllium copper alloy contacts plated with gold over nickel. Supports 3.1 A current and 240 V AC voltage ratings. Surface mount termination for efficient PCB integration.
Operating temperature range from -55°C to 125°C. Liquid crystal polymer housing for strength and heat resistance. Keying way feature for secure mating. Compatible with PCI and PCIe card types.
This Samtec HSEC8-DV Series connector is recommended for industrial automation, electronic device manufacturing, HVAC, and other electrical engineering applications requiring reliable surface mount edge connectors. Browse more Edge Connectors and related Samtec products at EnvMart for your precise connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current rating of 3.1 A and a voltage rating of 240 V AC.
It features a pitch of 0.8 mm and has 20 contacts arranged in 2 rows.
The contacts are made from beryllium copper alloy with gold over nickel plating, while the housing is constructed from liquid crystal polymer.
It operates within a temperature range from -55°C to +125°C.
This model features a surface mount termination type, allowing for efficient integration on printed circuit boards.
It is compatible with PCI and PCIe card types, enhancing its versatility in various applications.
The connector includes a keying feature that ensures proper mating and connection assurance, preventing mismating.
It is designed to be compatible with 1.6 mm thick PCBs.
The connector has a straight orientation and features 20 contacts in 2 rows, but specific dimensions are not provided.
The connector is manufactured in India.
It is suitable for applications in industrial automation, electronic device manufacturing, and HVAC systems.
The gold over nickel plating on the contacts ensures optimal conductivity and corrosion resistance, enhancing electrical performance.
