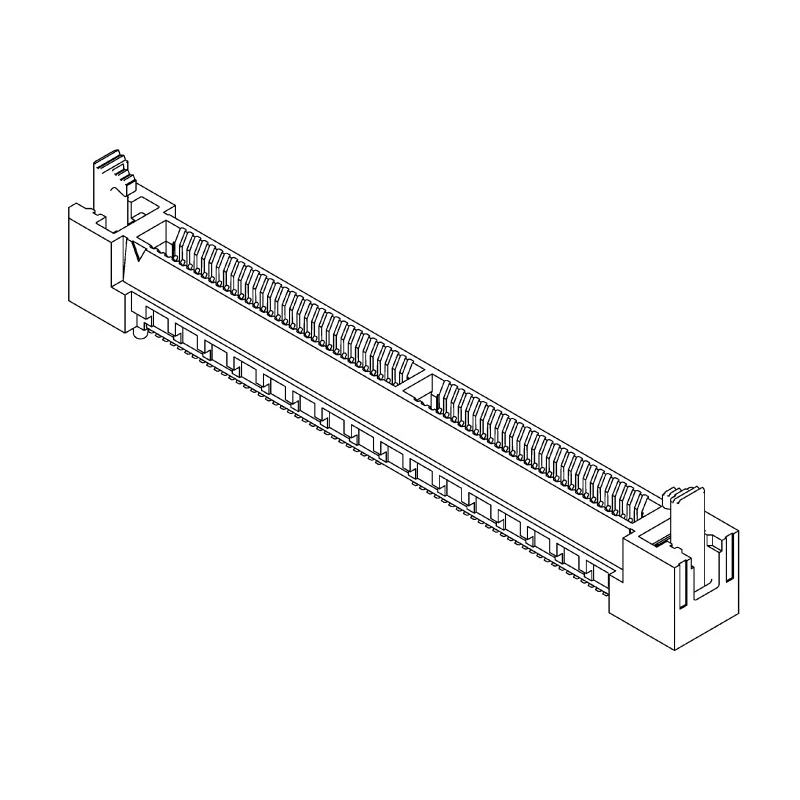

Samtec HSEC8-DV Series Straight Edge Connector Female Surface Mount 80-Contacts 0.8 mm Pitch 2 Row HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.1A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- This edge connector is female with a straight orientation and surface mounting type.
- It supports a current rating of 3.1A and voltage rating up to 240V.
- Constructed with beryllium copper alloy contact material and plated with gold over nickel for enhanced conductivity and durability.
- Operating temperature range from -55°C to 125°C ensures performance in extreme environments.
- The housing is made from liquid crystal polymer, offering mechanical stability and durability.
- Designed for PCIe card types with a card thickness of 1.6mm and an insertion depth nominal of 3.15mm.
- The 0.8 mm pitch and two-row setup optimize connection density.
- Suitable for industrial, electronic manufacturing, and laboratory applications.
Product Description
Samtec HSEC8-DV Series Straight Edge Connector Female, model HSEC8-DV, offers 80 contacts in a dual row configuration with a precise 0.8 mm pitch. This surface mount connector is engineered for high precision and reliable electrical connections in demanding environments.
The connector features a female straight orientation with beryllium copper alloy contacts plated with 0.25 μm gold over nickel, enhancing signal integrity and corrosion resistance. The housing material is a robust liquid crystal polymer, ensuring durability and mechanical stability.
Rated to carry currents up to 3.1A and support voltages up to 240V, it operates effectively within a temperature range from -55°C to 125°C. The connector is compatible with PCIe cards of 1.6 mm thickness and provides a nominal insertion depth of 3.15 mm. It includes an alignment pin for proper mating and ensures secure, efficient installation.
Ideal for applications in electronics manufacturing, industrial automation, computing hardware, and laboratory instruments requiring high-density edge connections. This edge connector is female with a straight orientation and surface mounting type.
Supports up to 3.1A current and 240V voltage ratings. Contacts made of beryllium copper alloy plated with gold over nickel. Operates reliably between -55°C and 125°C. Housing constructed of liquid crystal polymer for durability.
Compatible with PCIe card type with 1.6 mm thickness. 0.8 mm contact pitch and 2-row contact configuration. Includes alignment pin for easy and precise mating.
This connector is a key component in electronics, industrial, and laboratory equipment. Explore more in the Electronics Components > Edge Connector category on EnvMart for additional high-quality connectors suitable for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.1A.
It has a voltage rating of up to 240V.
The contacts are made from beryllium copper alloy and are plated with gold over nickel, while the housing is constructed from liquid crystal polymer.
It operates effectively within a temperature range from -55°C to 125°C.
The connector features a total of 80 contacts arranged in a dual row configuration.
The contact pitch is 0.8 mm.
Yes, it is designed for PCIe card types with a card thickness of 1.6 mm.
This model utilizes a surface mount termination type.
Yes, it includes an alignment pin to ensure proper mating during installation.
The connector has a straight orientation.
The country of origin for this connector is India.
It is ideal for applications in electronics manufacturing, industrial automation, computing hardware, and laboratory instruments.
