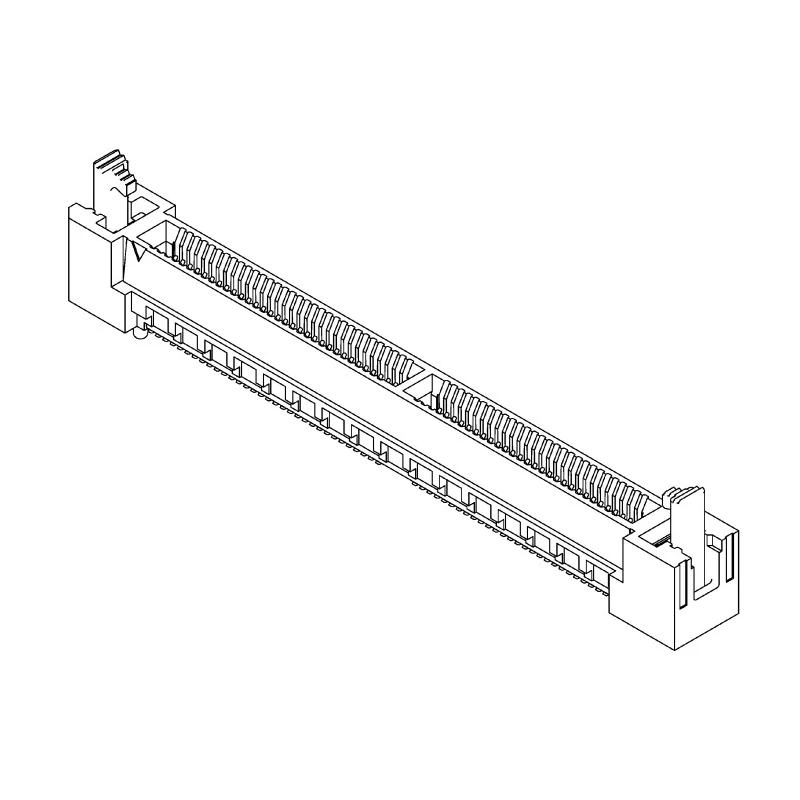

Samtec HSEC8-DV Series Straight Edge Connector Female, Surface Mount, 80 Contacts, 0.8 mm Pitch, 2 Row HSEC8-DV

Samtec HSEC8-DV Series Straight Edge Connector Female, model HSEC8-DV, is engineered for robust PCIe edge card connection applications requiring 80 contacts arranged in two rows with a 0.8 mm pitch. It is a surface-mounted connector that supports 1.6 mm thick cards and provides reliable electrical performance with a maximum operating current of 3.1A and voltage up to 240V.

The connector contacts are crafted from beryllium copper alloy and plated with 0.25 μm gold over nickel to ensure excellent conductivity and corrosion resistance, complemented by matte tin plated tails to optimize solderability. The housing is made of high-quality liquid crystal polymer, imparting mechanical strength and thermal stability within the operating temperature range of -55°C to 125°C.

A unique design feature includes an alignment pin to facilitate precise connector alignment and insertion, delivering consistent mating quality. This connector is ideal for industrial electronics assembly, laboratory instrumentation, manufacturing environments, and other applications requiring stable and high-density edge connections.

The surface mount termination style allows for efficient automated PCB assembly, reducing production time and increasing manufacturing yield. It accommodates nominal card insertion depth of 3.15 mm, providing a secure hold during operation.

Designed for PCIe cards with 1.6 mm thickness. Gold over nickel plating on contacts for durability. Supports temperatures from -55°C to 125°C ensuring wide usability. Includes alignment pin for accurate connectivity. Surface mount type for ease of PCB integration.

Housing material provides durability and heat resistance. Current rating up to 3.1A, voltage rating 240V. Reliable mating with 80 contacts across 2 rows at 0.8 mm pitch.

This Samtec HSEC8-DV connector suits electronic equipment manufacturing, industrial automation, telecommunications, and other demanding electronic applications. Exploring EnvMart’s catalog will provide more specialized connectors and related electronic components to complement this product.
