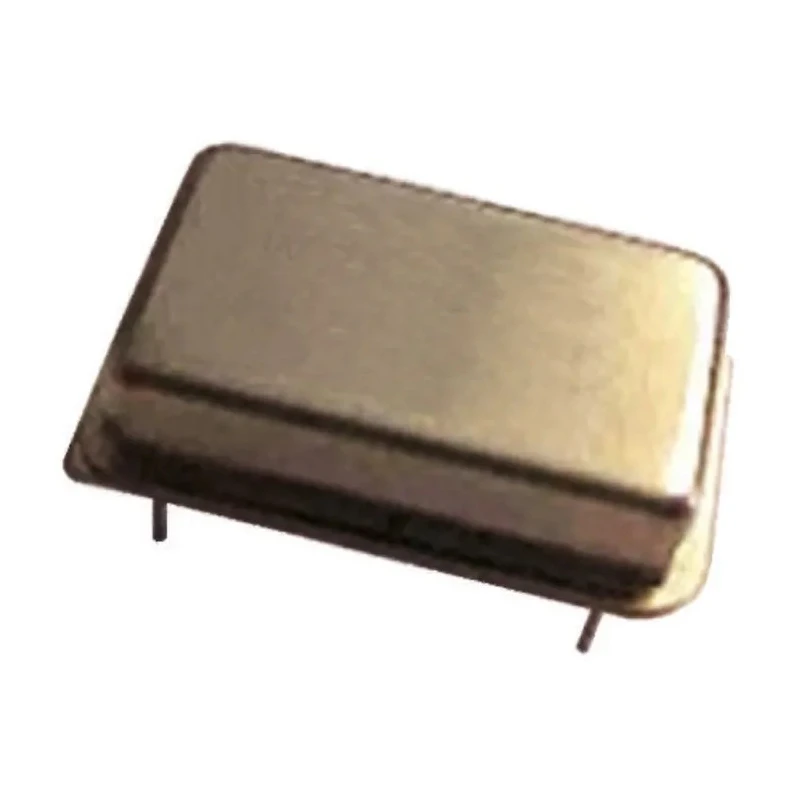

MERCURY 8MHz Clock Oscillator ±50 ppm HCMOS TTL 14-Pin PDIP 5H14ET-8.000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 20.2mm |
| Model | 5H14ET-8.000 |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | H14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 8MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | HCMOS, TTL |
Key Features
- Operates at a frequency of 8MHz with ±50 ppm stability ensuring precise timing.
- Dual output levels including HCMOS and TTL suitable for various digital circuits.
- Industry-standard 14-pin Dual-in-Line Package with through-hole mounting for PCB integration.
- Operates reliably within temperature ranges from -40°C to 85°C for industrial environments.
- Maximum supply voltage is 5V compatible with common logic circuits.
- Compliance with RoHS standards ensuring environmentally friendly manufacturing.
- Manufactured in Taiwan, Province Of China, assuring quality and traceability.
Product Description
MERCURY 5H14ET-8.000 is a high-precision 8MHz clock oscillator designed for use in electronic, industrial, and embedded systems requiring stable timing signals. Featuring a ±50 ppm frequency stability, this crystal oscillator delivers reliable clock outputs essential for microcontroller timing, communication protocols, and system synchronization.
Equipped with HCMOS and TTL output levels, the device supports integration into a wide array of digital logic circuits. Its industry-standard 14-pin PDIP metal through-hole package (20.2mm x 10.7mm x 5.08mm) ensures easy installation on printed circuit boards and robust electrical connections. The oscillator operates over a broad temperature range of -40°C to 85°C, making it suitable for demanding environmental conditions in industrial, commercial, and laboratory applications.
The oscillator uses a maximum supply voltage of 5V, aligning with typical system power rails, and complies with RoHS directives, highlighting Mercury’s commitment to sustainable electronics components.
This product is commonly employed in applications including embedded systems timing, communication equipment, industrial automation, instrumentation, and consumer electronics requiring precise clock generation.
Operates at 8MHz frequency with ±50 ppm accuracy. HCMOS and TTL compatible output levels. Industry-standard 14-pin PDIP through-hole packaging. Operating temperature from -40°C to 85°C. Maximum supply voltage: 5V. RoHS compliant for environmental safety.
Compact dimensions ensure space-efficient board layout. Manufactured in Taiwan, Province Of China. Explore more electronic components and precision Oscillators in the Electronics Components category at EnvMart for industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is 8MHz.
It supports HCMOS and TTL output levels, making it suitable for various digital circuits.
This oscillator operates reliably within a temperature range of -40°C to 85°C.
The maximum supply voltage for this model is 5V, compatible with common logic circuits.
It comes in an industry-standard 14-pin PDIP package and features through-hole mounting for PCB integration.
The dimensions of this model are 20.2mm in length, 10.7mm in width, and 5.08mm in height.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
This oscillator is commonly employed in embedded systems timing, communication equipment, industrial automation, and instrumentation.
The frequency stability of this model is ±50 ppm, ensuring precise timing.
This clock oscillator is manufactured in Taiwan, Province Of China, ensuring quality and traceability.
This model features a total of 14 pins.
The 5H14ET-8.000 is a clock oscillator designed for generating stable timing signals in electronic applications.
