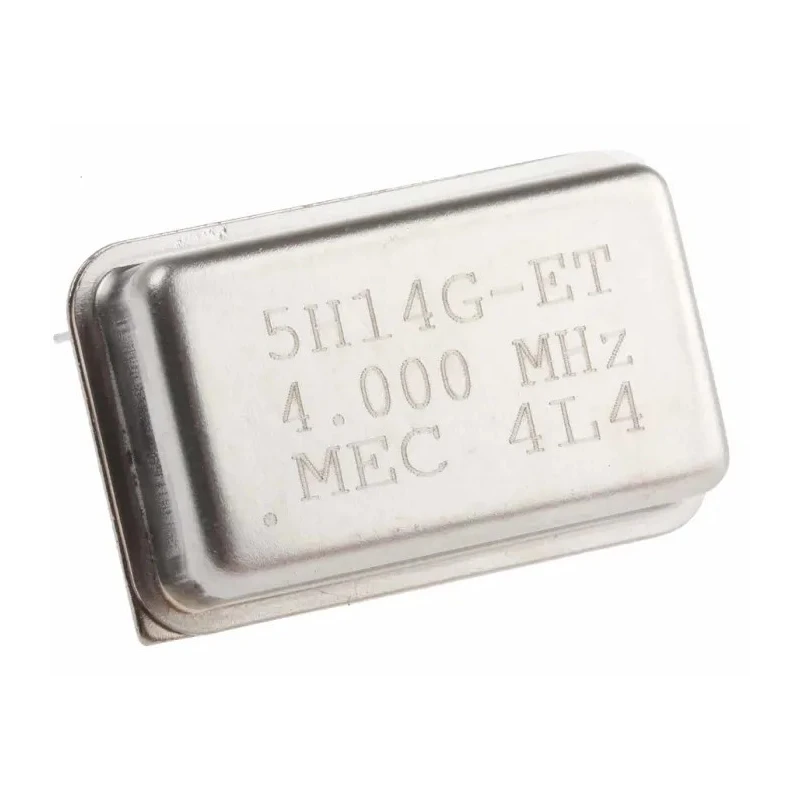

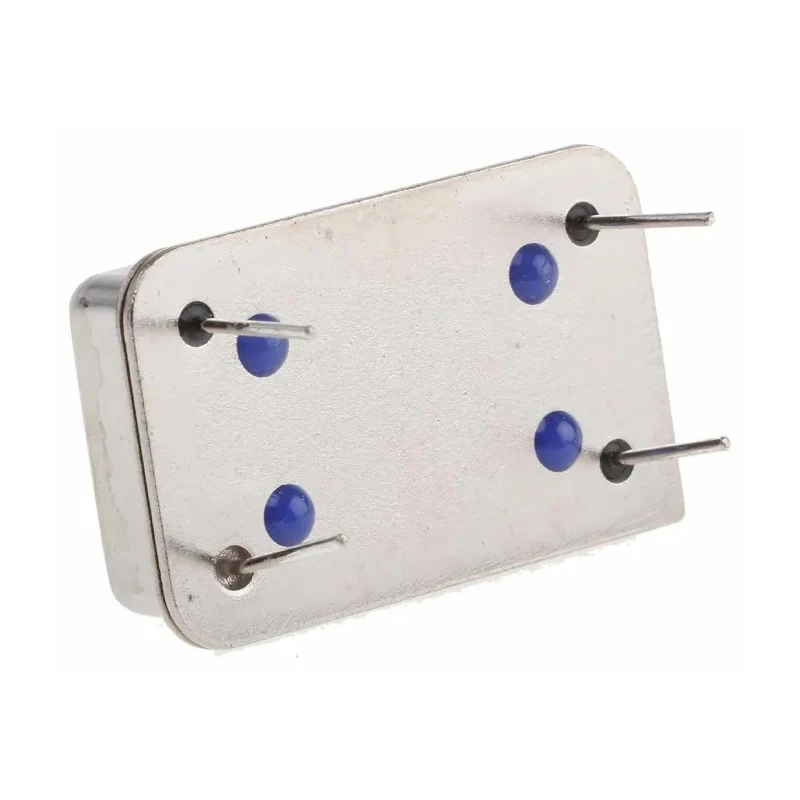

MERCURY 4MHz Clock Oscillator, ±50 ppm Frequency Stability, TTL and HCMOS Output, 14-Pin PDIP Package 5H14ET-4.000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 20.2mm |
| Model | 5H14ET-4.000 |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | H14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 4MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | TTL, HCMOS |
| MERCURY, 4MHz Clock Oscillator, ±50 ppm HCMOS, TTL, 8-Pin PDIP 5H8ET-4.000Brand | MERCURY |
Key Features
- Operates at 4MHz output frequency with ±50 ppm stability.
- Industry-standard 14-pin PDIP through-hole package for easy PCB mounting.
- Supports TTL and HCMOS output levels suitable for digital circuits.
- Wide operating temperature range from -40°C to 85°C for higher reliability.
- Maximum supply voltage of 5V compatible with standard electronic systems.
- RoHS compliant ensuring environmental safety and regulatory adherence.
- Manufactured in Taiwan, Province Of China, ensuring quality assembly.
Product Description
MERCURY 5H14ET-4.000 is a 4MHz clock oscillator designed for demanding electronics and industrial applications requiring accurate timing signals. It features a ±50 ppm frequency stability, guaranteeing precise and steady oscillation performance crucial for digital circuits and communication devices.
The oscillator is housed in a 14-pin PDIP metal package which enables robust through-hole mounting on printed circuit boards (PCBs). Its dual TTL and HCMOS output levels provide compatibility with a variety of digital logic technologies.
Operating reliably over a temperature range from -40°C to 85°C, this oscillator is ideal for use in industrial, laboratory, and embedded electronics environments. It operates on a maximum 5V supply voltage ensuring easy system integration.
Its compact physical size with dimensions of 20.2mm length, 10.7mm width, and 5.08mm height makes it suitable for applications with space constraints. The device complies with RoHS standards, confirming it is free from hazardous substances.
Operates at 4MHz output frequency with ±50 ppm stability. Industry-standard 14-pin PDIP through-hole package for easy PCB mounting. Supports TTL and HCMOS output levels suitable for digital circuits. Wide operating temperature range from -40°C to 85°C for higher reliability.
Maximum supply voltage of 5V compatible with standard electronic systems. Compact dimensions: 20.2mm length, 10.7mm width, and 5.08mm height. RoHS compliant ensuring environmental safety and regulatory adherence. Manufactured in Taiwan, Province Of China, ensuring quality assembly.
This versatile clock oscillator is well-suited for industrial automation, instrumentation, telecommunications, and embedded system timing applications. Located under the Electronics & Electricals category, it provides a dependable timing solution essential for synchronization and signal generation.
Explore more products in the crystal Oscillators category on EnvMart for complementary electronic components and modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is 4MHz.
It has a frequency stability of ±50 ppm.
This model supports both TTL and HCMOS output levels, making it suitable for various digital circuits.
The maximum supply voltage for this oscillator is 5V.
It operates reliably over a temperature range from -40°C to 85°C.
The dimensions of this oscillator are 20.2mm in length, 10.7mm in width, and 5.08mm in height.
It comes in a 14-pin PDIP package, designed for through-hole mounting.
Yes, it is RoHS compliant, ensuring it is free from hazardous substances.
This oscillator is manufactured in Taiwan, Province Of China.
This oscillator is suitable for industrial automation, instrumentation, telecommunications, and embedded system timing applications.
The pin count of this oscillator is 14 pins.
The 5H14ET-4.000 is classified as a clock oscillator.
