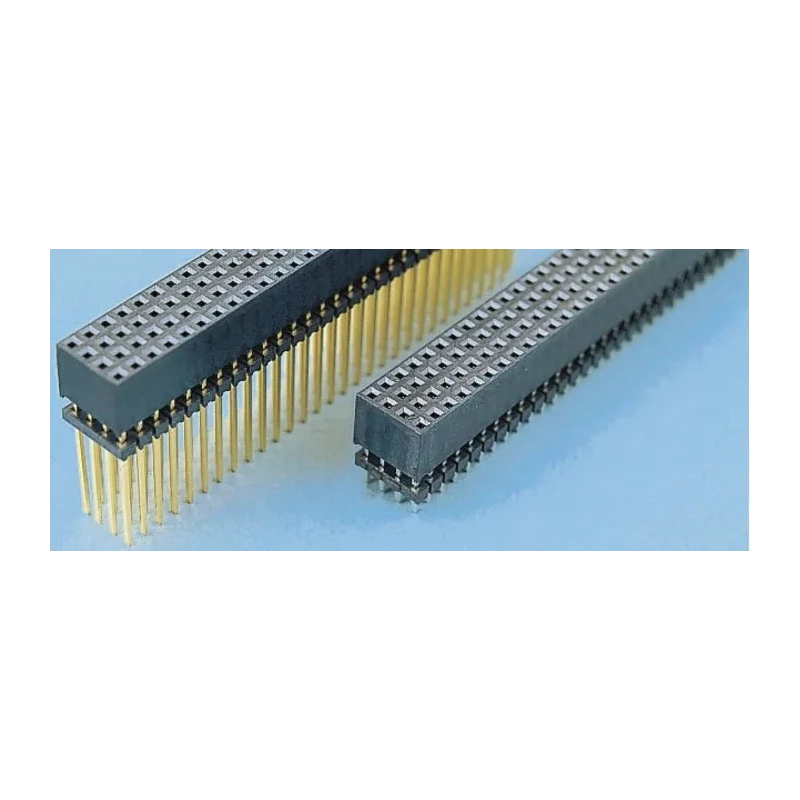

Samtec PCB Socket Board-to-Board 120-Contact, 4 Row, 2 mm Pitch Through Hole, Straight Orientation ESQT-130-03-M-Q-368
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55°C to +125°C |
| Current | 5.8A |
| Model | ESQT-130-03-M-Q-368 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | ESQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 2mm |
| Contact Resistance | 10 mΩ max |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Supports 120 contacts arranged in 4 rows for high-density connections.
- 2 mm pitch and straight orientation ensure precise board-to-board alignment.
- Gold-plated bronze contacts provide low contact resistance and durability.
- Housing constructed from black Liquid Crystal Polymer for high temperature resistance.
- Suitable for operating temperatures from -55°C to +125°C.
- Through-hole mount type ideal for robust mechanical connections.
- Current rating up to 5.8 amperes for reliable power transmission.
- RoHS compliant ensuring environmentally safe materials.
Product Description
Samtec ESQT-130-03-M-Q-368 is a premium PCB Socket designed for board-to-board applications requiring high density and reliable electrical connections. Featuring 120 contacts arranged in 4 rows with a pitch of 2 mm, this straight through hole connector is engineered for durable mechanical stability and excellent electrical performance.
The connector housing is made from black Liquid Crystal Polymer, providing superior insulation and operating temperature tolerance from -55°C to 125°C. Contacts are crafted from bronze and plated with gold to reduce contact resistance and enhance corrosion resistance.
This PCB Socket supports a current rating of 5.8 A and is suitable for use in rigorous environments including industrial electronics, telecommunications, and power distribution systems. The design accepts 0.5 mm square pins and is optimized for high vibration conditions, ensuring consistent performance in demanding applications.
As a RoHS-compliant product, it meets stringent environmental regulations, making it suitable for modern electronics manufacturing. The connector is through-hole mounted, facilitating sturdy and secure installation on printed circuit boards.
120 contacts arranged in 4 rows for high connection density. 2 mm pitch with straight orientation for precise board alignment. Gold-plated bronze contacts reduce electrical resistance and wear. Black Liquid Crystal Polymer housing resistant to high temperatures.
Wide operating temperature range from -55°C to +125°C. Through-hole mounting ensures robust mechanical connection. Current capacity of 5.8 amperes supports reliable power delivery. Accepts 0.5 mm square pins for board-to-board applications.
Contact resistance maintained below 10 milliohms for signal fidelity. Complies with RoHS environmental standards.
This connector is ideal for industrial, telecommunications, manufacturing, and electronics applications where durability and consistent performance under vibration and temperature extremes are required. Explore additional Samtec products in our PCB Socket category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features 120 contacts arranged in 4 rows, designed for high-density connections.
The contacts have a pitch of 2 mm, ensuring precise board-to-board alignment.
The current rating is up to 5.8 amperes, suitable for reliable power transmission.
The housing is made from black Liquid Crystal Polymer, while the contacts are bronze plated with gold to reduce contact resistance.
It operates within a temperature range of -55°C to +125°C, making it suitable for various environments.
This model uses a through-hole mount type, providing robust mechanical connections on printed circuit boards.
The maximum contact resistance is maintained below 10 milliohms, ensuring signal fidelity.
It accepts 0.5 mm square pins, optimized for board-to-board applications.
Yes, it complies with RoHS environmental standards, ensuring the use of environmentally safe materials.
The termination type is solder, suitable for secure electrical connections.
The insulator material is black Liquid Crystal Polymer, providing superior insulation properties.
This connector is suitable for industrial electronics, telecommunications, and power distribution systems.
