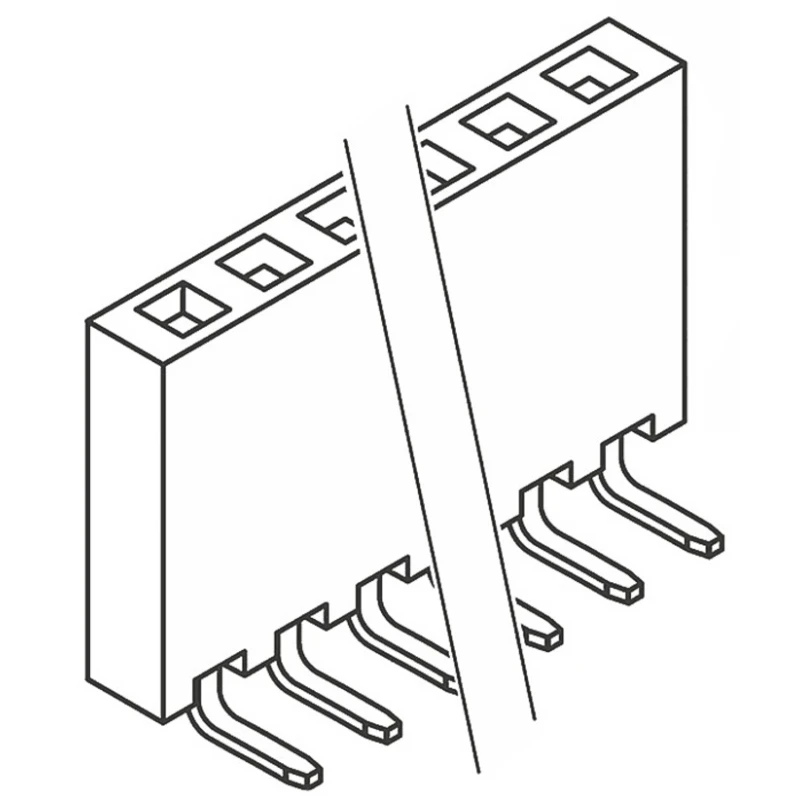

Samtec SSW Series Right Angle Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch, Solder Termination SSW-120-02-G-S-RA

Samtec SSW-120-02-G-S-RA is a precision right angle through hole PCB socket designed for high-reliability board-to-board connections. Featuring a 20-contact, single row configuration with a 2.54 mm pitch, this socket ensures robust electrical contact and mechanical stability for industrial and electronic applications.

The socket utilizes a black liquid crystal polymer housing material known for its mechanical strength and thermal stability. Contacts are crafted from phosphor bronze with a 0.51μm gold plating, providing excellent corrosion resistance and conductivity. The female contact design supports secure mating with compatible male headers.

Designed for demanding environments, the socket supports a wide operating temperature range from -55°C to 125°C and accommodates voltages up to 550V and currents up to 6.9A. Its through hole mount type and right angle orientation enable efficient and compact PCB layouts.

Part of the Samtec SSW series, which offers multiple configurations such as single and double row, different post lengths, and orientations. This specific model, SSW-120-02-G-S-RA, uses solder tail termination to provide reliable mechanical and electrical connections.

The socket is compatible with Samtec TSW and TSM series square post headers, facilitating versatile board-to-board interconnection solutions in industrial, electronic manufacturing, telecommunications, and computing applications.

The socket features a female contact designed for board-to-board mating. Constructed using durable liquid crystal polymer housing. Phosphor bronze contacts with gold plating enhance conductivity and resistance to wear. Electrical ratings include 6.9A current and 550V voltage capabilities.

Wide operating temperature range from -55°C to 125°C for harsh environments. Right angle, through hole mount design optimizes PCB space and connectivity. This model uses solder tail termination for stable soldering on PCBs.

Compatible with related Samtec header series for modular design. Explore the range of Samtec PCB Sockets and connectors at EnvMart for high-quality interconnection solutions tailored to diverse industrial and electronic needs.
