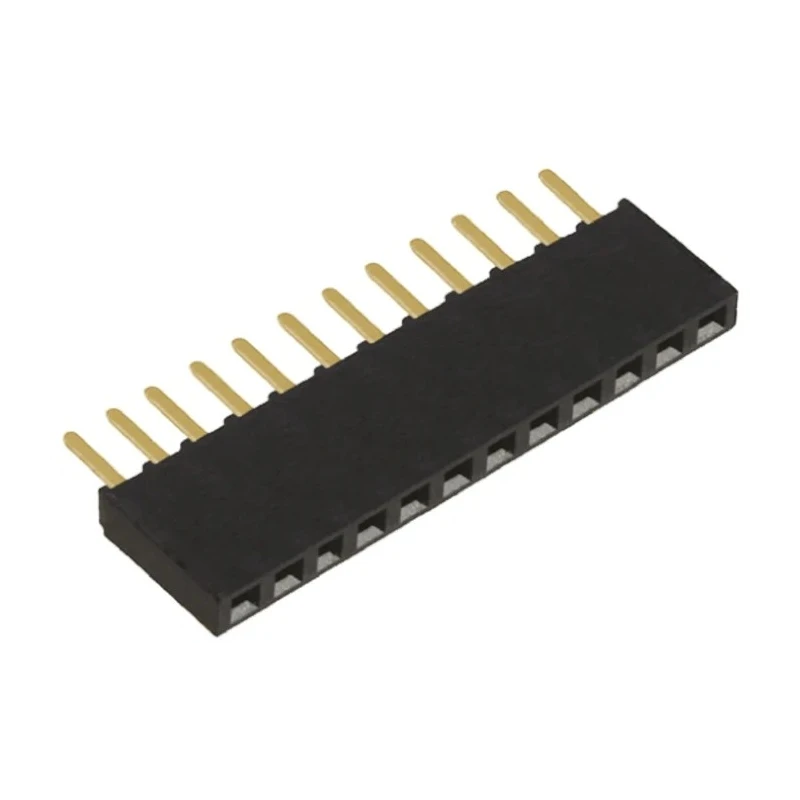

Samtec SSW Series Straight Through Hole PCB Socket 12-Contact 1 Row 2.54 mm Pitch Solder SSW-112-02-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-112-02-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with a liquid crystal polymer housing for durability and high performance.
- Contacts are made of bronze with gold plating for reliable conductivity.
- Supports a current rating of 6.9 A and a voltage rating of 550 V.
- Designed for through hole mounting with straight orientation.
- Has a wide operating temperature range from -55°C to 125°C, suitable for harsh environments.
- Compatible with board-to-board connector systems for flexible PCB configurations.
- Features 0.51 μm gold plating on contacts and gold flash on tails for corrosion resistance.
- Ideal for industrial, electronic, and power connector applications.
Product Description
Samtec SSW-112-02-G-S is a straight through hole PCB socket designed for board-to-board connections, featuring 12 contacts arranged in a single row with a 2.54 mm pitch and solder termination type. This socket uses a liquid crystal polymer housing to provide excellent durability and thermal stability, allowing operation from -55°C up to 125°C. The contacts are bronze plated with 0.51 μm gold plating on the contact area and gold flash on the tail to ensure consistent conductivity and corrosion resistance.
With a current rating of 6.9 amperes and voltage capacity of 550 volts, this PCB connector is well suited for demanding industrial electronics, manufacturing equipment, and power distribution applications. Its through-hole mounting and straight orientation allow easy assembly and dependable mechanical stability.
The Samtec SSW series sockets mate with compatible through hole and SMT headers, offering versatile configurations including various post lengths. The model SSW-112-02-G-S includes a solder tail length of 4.93 mm for secure solder joints on printed circuit boards.
This product is commonly used in industrial equipment, laboratory instruments, power connectors, and electronic assemblies requiring high reliability under varying temperature conditions. Although it does not carry special certifications, the design ensures robust electrical and mechanical performance in challenging environments.
Constructed from liquid crystal polymer housing for durability. Bronze contact material with gold plating for conductivity and corrosion resistance. Designed for solder termination and through hole mounting. Supports 12 contacts in a single-row 2.54 mm pitch configuration.
Operates from -55°C to 125°C temperature range. Rated for 6.9 A current and 550 V voltage. Compatible with board-to-board connector systems. Reliable performance in industrial and electronic applications. Gold flash plating on tails enhances connection reliability.
Female contact gender ensures proper mating with headers.
Samtec products are widely regarded for their quality and versatility in electronic component manufacturing. Discover more PCB Sockets and connectors in EnvMart’s Electronics Components category for precise and effective PCB integration solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 6.9 A and a voltage rating of 550 V.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
It is designed for through hole mounting, allowing for easy assembly and mechanical stability.
The housing is made from liquid crystal polymer, and the contacts are bronze with gold plating for reliable conductivity and corrosion resistance.
This model features 12 contacts arranged in a single row with a 2.54 mm pitch.
The termination type is solder, which is suitable for secure connections on printed circuit boards.
Yes, it is compatible with board-to-board connector systems, allowing for flexible PCB configurations.
The contacts are female, ensuring proper mating with compatible headers.
The contacts feature 0.51 μm gold plating, which enhances conductivity and provides corrosion resistance.
It is commonly used in industrial equipment, laboratory instruments, power connectors, and electronic assemblies requiring high reliability.
The country of origin for this model is India.
This model has a straight orientation, which is standard for through hole mounting.
