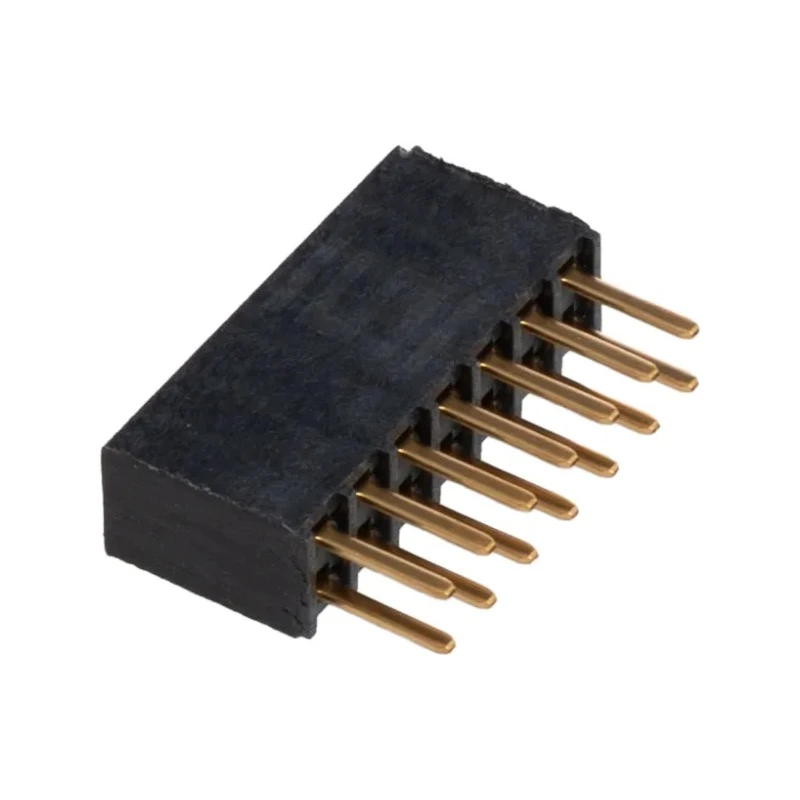

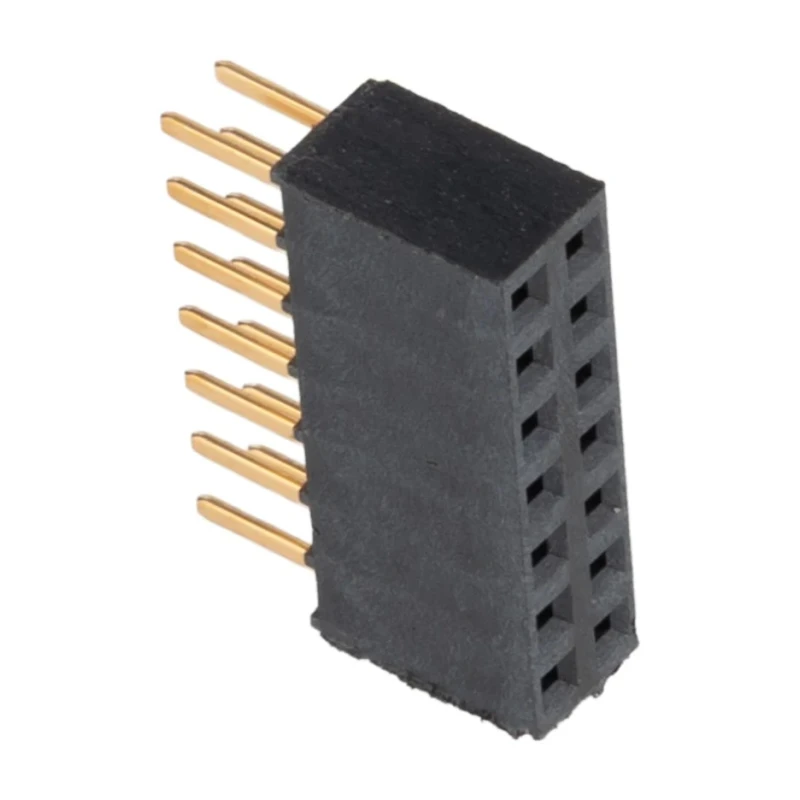

Samtec PCB Socket, Through Hole Mounting, 14-Contact, 2 Row, 2.54 mm Pitch, Solder Termination, 6.9A, 550V SSW-107-02-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-107-02-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Tin |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- The socket features a straight orientation for easy and secure connections.
- Constructed with bronze contact material for enhanced electrical conductivity.
- Contact plating of gold over tin provides excellent corrosion resistance.
- Designed to handle currents up to 6.9A and voltages up to 550V safely.
- Housing material is liquid crystal polymer ensuring durability under high temperatures.
- Suitable for operating temperature ranges from -55°C to 125°C.
- The through hole mounting type assures robust mechanical stability on PCBs.
- Ideal for board to board connector applications requiring high current capacity and precision pitch.
Product Description
Samtec SSW-107-02-G-D PCB Socket is engineered for reliable and efficient board to board connectivity in electronic circuits. Featuring 14 female contacts arranged in 2 rows with a 2.54 mm pitch, this socket supports solder termination and through hole mounting for secure and durable installation on printed circuit boards.
Its straight orientation and bronze contact material provide excellent electrical conductivity and mechanical integrity. The contacts are plated with gold over tin to prevent corrosion, ensuring long-lasting performance. With a rated current of 6.9 amperes and voltage endurance up to 550 volts, this socket supports high-current applications safely.
The housing is constructed from liquid crystal polymer, offering strong resistance to thermal and mechanical stress, enabling operation in temperatures ranging from -55°C to 125°C. The precise 2.5 mm row pitch and 2-row configuration enhance compatibility with standardized PCB layouts.
This connector is ideal for industrial, electronic manufacturing, and laboratory applications that demand secure, high-quality board to board connections with reliable electrical performance.
The socket features a straight orientation for easy and secure connections. Constructed with bronze contact material for enhanced electrical conductivity. Contact plating of gold over tin provides excellent corrosion resistance.
Designed to handle currents up to 6.9A and voltages up to 550V safely. Housing material is liquid crystal polymer ensuring durability under high temperatures. Suitable for operating temperature ranges from -55°C to 125°C.
The through hole mounting type assures robust mechanical stability on PCBs. Ideal for board to board connector applications requiring high current capacity and precision pitch. This high-quality PCB Socket meets industry standards, offering reliable and durable performance.
Samtec offers precision electronic components trusted across industries. Explore our catalog for more PCB connectors optimized for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is designed to handle a maximum current of 6.9A and a voltage of up to 550V.
The contacts in this model have a pitch size of 2.54 mm, arranged in a 2-row configuration.
This socket utilizes solder termination for secure connections on printed circuit boards.
The socket is constructed with bronze contact material for conductivity, and the housing is made from liquid crystal polymer for thermal and mechanical resistance.
It can operate within a temperature range of -55°C to 125°C, making it suitable for various environments.
This model features a total of 14 female contacts.
The socket has a straight orientation, facilitating easy and secure connections.
Yes, this socket is specifically designed for board-to-board connector applications, providing reliable connectivity.
The contacts are plated with gold over tin, which provides excellent corrosion resistance.
This model supports through hole mounting, ensuring robust mechanical stability on PCBs.
The connector system for this socket is board-to-board, designed for high-current applications.
The country of origin for this PCB socket is India.
