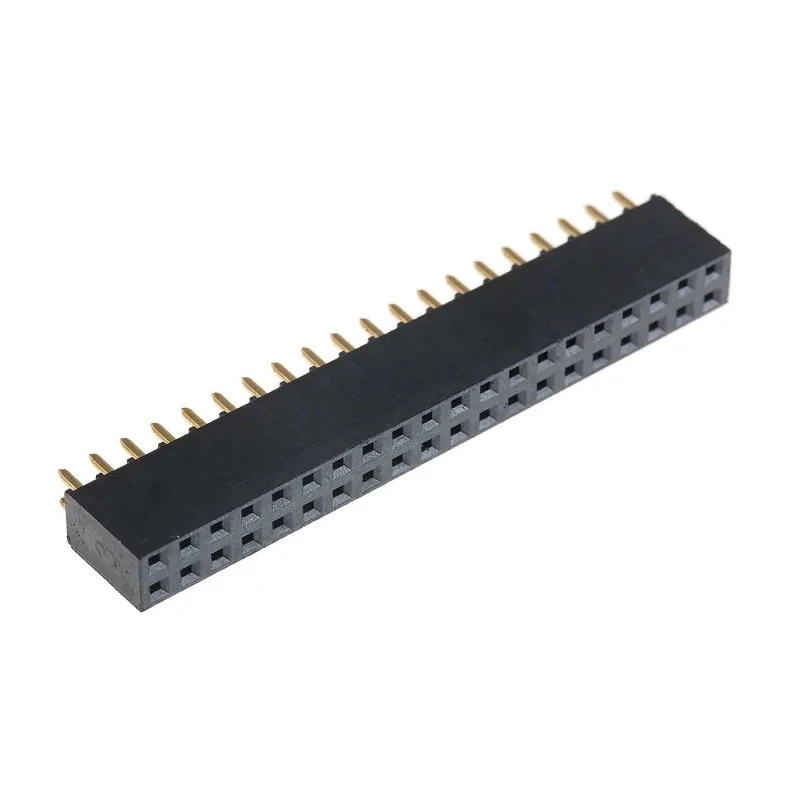

Samtec SSQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder SSQ-120-01-G-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec SSQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder SSQ-120-01-G-D

Name: Samtec SSQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder SSQ-120-01-G-D
Brand: Samtec
SKU: 366012
Price: 8.84 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	7.6A
Model	SSQ-120-01-G-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SSQ
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.5mm

Key Features

The socket is made from liquid crystal polymer ensuring high durability.
It supports current up to 7.6 A and voltage rating of 550 V.
The connector system is designed for board-to-board applications with a straight orientation.
The contact material is bronze plated with 0.51μm gold for excellent conductivity and corrosion resistance.
Operating temperature range spans from -55°C to 125°C for varied industrial environments.
This through-hole mounting style ensures secure soldered connections on printed circuit boards.
The connector has a row pitch of 2.5 mm and is female contact gender.
No additional certifications or approvals are specified for this product.

Product Description

Samtec SSQ-120-01-G-D is a high-quality through-hole PCB socket designed for board-to-board electrical connection in industrial, electronic, and manufacturing applications.

This 40-contact socket features a 2-row configuration with a 2.54 mm pitch, using liquid crystal polymer for the housing material which provides excellent mechanical stability and thermal resistance.

The phosphor bronze contacts, plated with 0.51μm gold, offer superior electrical performance and corrosion resistance. The socket operates efficiently up to 7.6 A current and 550 V voltage, suitable for demanding electronic components.

Its straight orientation and through-hole mounting style make it ideal for robust PCB soldered assemblies. The wide operating temperature range of -55°C to 125°C enables use in harsh environmental conditions encountered in industrial, laboratory, and electronic manufacturing sectors.

The SSQ series sockets can mate with Samtec TSW and TSM series headers, offering versatile board-to-board solutions. This model does not carry specific safety certifications but meets standard industrial quality benchmarks.

The socket is made from liquid crystal polymer ensuring high durability. Supports up to 7.6 A current and 550 V voltage rating. Contact plating uses 0.51μm gold for enhanced conductivity. Suitable for through-hole mounting with straight connector orientation.

Operating temperature range: -55°C to 125°C. Configurable for 40 contacts in a 2-row layout with 2.54 mm pitch. Compatible with Samtec TSW and TSM series headers for board-to-board connections. Contact gender is female with bronze material contacts.

This Samtec SSQ PCB socket is a reliable component choice for electronics manufacturing, industrial control systems, and commercial electronic assemblies. Browse more PCB Sockets and connectors at EnvMart for your industrial electronic needs.
