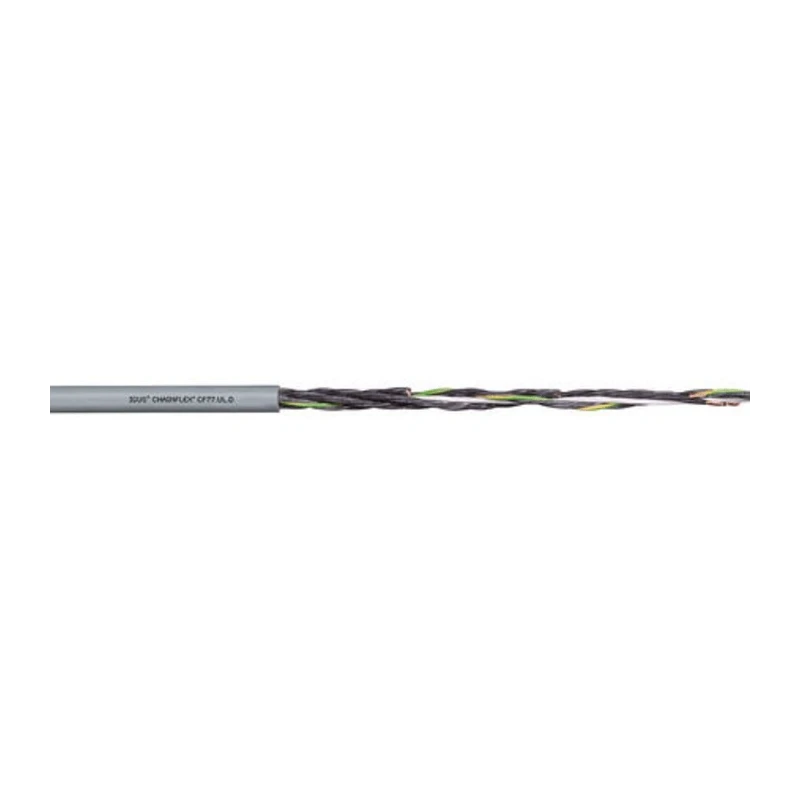

Igus chainflex PUR Control Cable, 5 Cores 0.5mm² 20 AWG, Unscreened, Armoured, Grey Thermoplastic Elastomer CF77.UL.05.05.D
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF77.UL.05.05.D |
| Cable Length | 25m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 6.5mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 5 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -35°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant, Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
| Core insulation | mechanically high-quality TPE mixture |
Key Features
- The cable jacket is made of durable grey thermoplastic elastomer, offering excellent flexibility.
- Designed for high load applications, it is resistant to oil and coolant substances.
- Flame-retardant, halogen-free and complies with IEC 332-1 and CEI 20-35 standards.
- The conductor material is bare stranded copper wires ensuring reliable conductivity.
- Operates reliably within a wide temperature range from -35°C to 80°C.
- Suitable for freely suspended and gliding travel distances up to 100 meters.
- Core insulation utilises a mechanically high-quality TPE mixture for enhanced durability.
- Complies with CE and EN certifications applicable in electrical and industrial sectors.
Product Description
Igus chainflex CF77.UL.05.05.D is a premium PUR Control Cable engineered for demanding electrical and automation applications. It has 5 cores with conductor cross-section of 0.5mm² (20 AWG), making it suitable for precise control signal transmission in industrial systems. The cable is unscreened but armoured, offering mechanical protection and flexibility with its grey thermoplastic elastomer jacket.
This cable is designed to withstand harsh environments featuring oil and coolant resistance alongside flame retardant and halogen-free properties. It meets stringent safety standards including IEC 332-1, CEI 20-35 and complies with CE and EN approvals ensuring reliability and safety in industrial installations.
Operating temperature ranges from -35°C to 80°C allow for usage in both cold and hot environments. The cable supports voltage levels of 300 V industrial and 500 V building installation, addressing multiple application needs. The conductor strands are made of bare copper for optimal electrical conductivity and signal integrity.
Core insulation utilises a mechanically refined TPE mixture that provides excellent mechanical strength and flexibility, especially suited for freely suspended and gliding travel distances up to 100 meters, ideal for robotic or automated machinery cabling.
The jacket is oil and coolant resistant offering longevity in industrial settings. Flame retardant and halogen free properties ensure enhanced fire safety compliance. High-quality stranded bare copper conductors provide excellent electrical performance.
Armoured cable construction delivers physical protection without compromising flexibility. Rated for 300 V and 500 V voltage applications as per relevant standards. Core insulation made from a specialized TPE mixture enhances mechanical durability.
Capable of operating effectively across a wide temperature range from -35°C to 80°C. Certified to CE and EN standards assuring industrial compliance and performance.
This Control Cable is manufactured in Germany, maintaining high-quality European standards. It is ideal for industrial, automation, electrical power, and control applications requiring reliable and flexible cabling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable is rated for voltage levels of 300 V for industrial applications and 500 V for building installations.
The maximum operating temperature for this model is 80°C, allowing it to function effectively in high-temperature environments.
It has 5 cores, each with a conductor cross-section of 0.5mm² (20 AWG), suitable for precise control signal transmission.
The cable jacket is made of grey thermoplastic elastomer, which provides excellent flexibility and resistance to oil and coolant substances.
This model is unscreened, which is suitable for certain applications where electromagnetic interference is not a concern.
It is flame-retardant and halogen-free, complying with safety standards such as IEC 332-1 and CEI 20-35, enhancing fire safety compliance.
The outside diameter of this control cable is 6.5mm, which is important for installation and compatibility with connectors.
The minimum operating temperature for this cable is -35°C, allowing it to be used in cold environments.
The conductors are made of bare stranded copper, ensuring reliable conductivity and signal integrity.
It complies with CE and EN standards, ensuring it meets the requirements for safety and performance in electrical applications.
The length of this control cable is 25 meters, making it suitable for various installation needs in industrial settings.
The core insulation is made from a mechanically high-quality TPE mixture, which enhances durability and flexibility.
