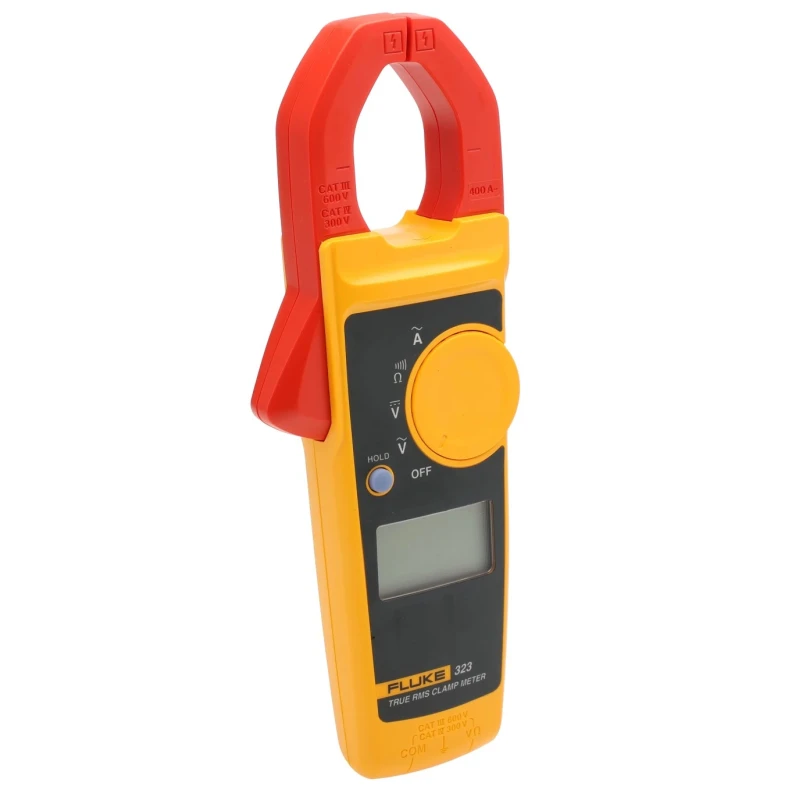

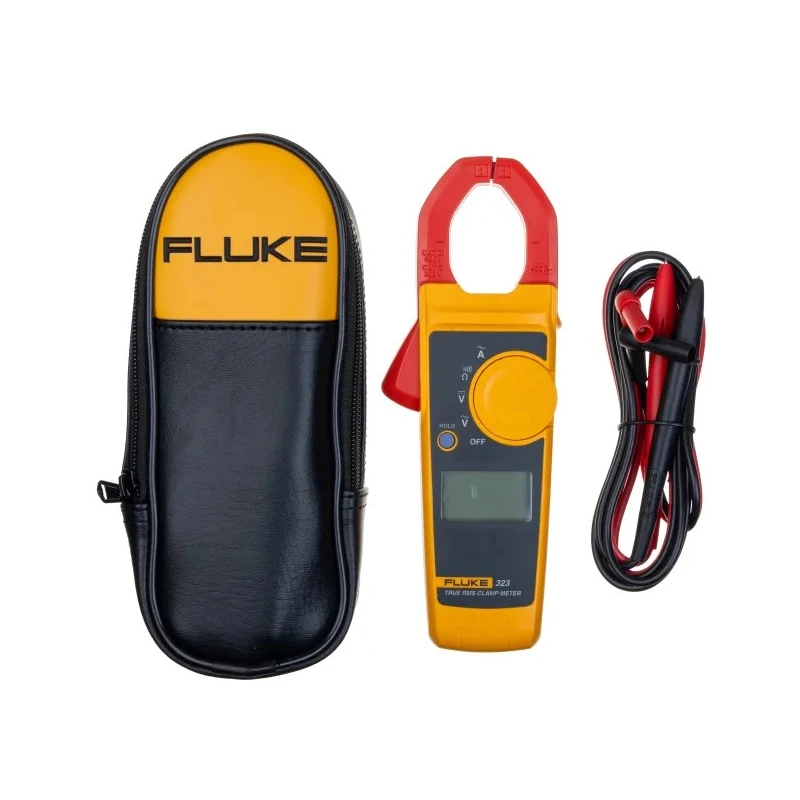

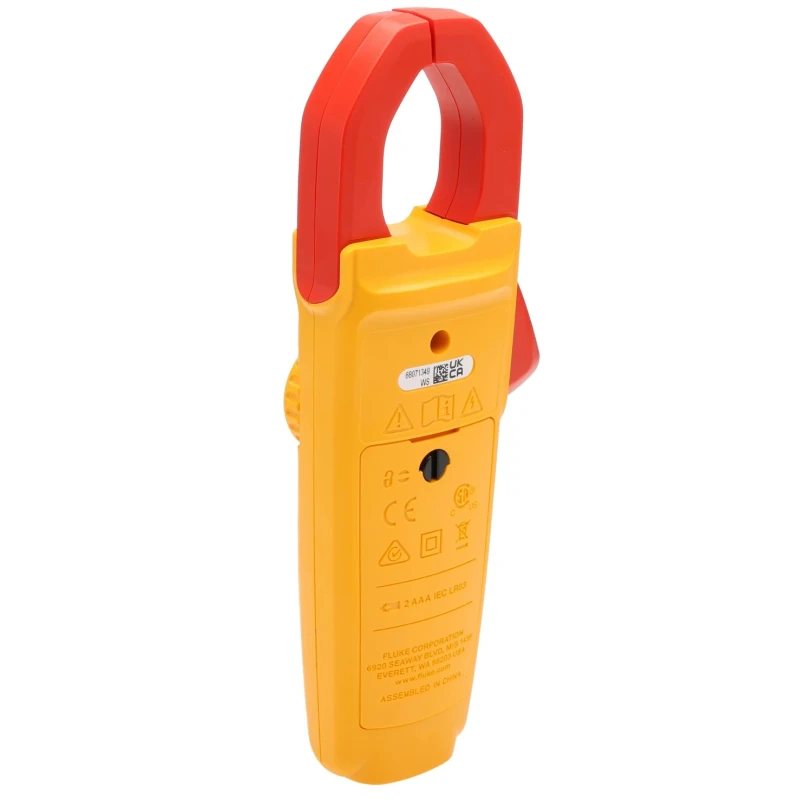

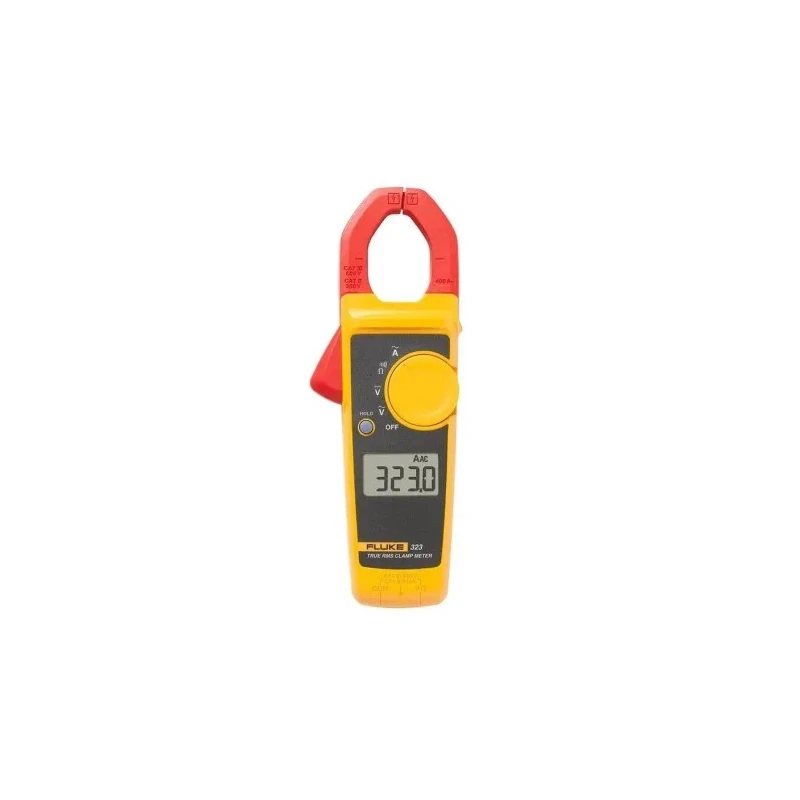

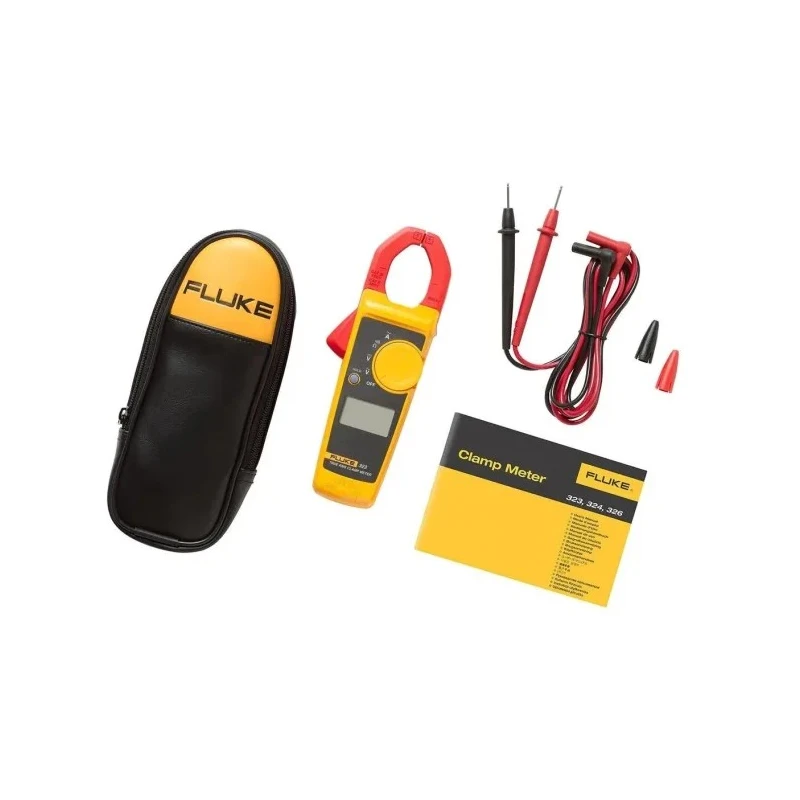

Fluke Clamp Meter 400 A, 600 V AC/DC True RMS with Non-Contact Voltage Detector FLUKE 323
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LCD |
| Brand | Fluke |
| Battery type | AAA |
| Height | 34mm |
| Length | 207mm |
| Model | FLUKE 323 |
| Gross Weight | 265g |
| Width | 75mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 100mV ac |
| Minimum Operating Temperature | -10°C |
| DC Voltage Resolution | 100 mV dc |
| Resistance Measurement Accuracy | ±1.0 % rdg + 5 Digits |
| AC Current Accuracy | ±2 % rdg + 5 Digits |
| Resistance Resolution | 100mΩ |
| AC Current Resolution | 100mA |
| Maximum Jaw Opening | 30mm |
| Functions Measured | AC Voltage, Resistance, AC Current, Continuity, DC Voltage |
| Maximum Resistance Measurement | 4000Ω |
| Maximum AC Current Measurement | 400A |
| Maximum DC Voltage Measurement | 600V dc |
| Maximum AC Voltage Measurement | 600V ac |
| Safety Category Level | CAT IV, CAT III |
| Safety Category Voltage | 300, 600V |
| Maximum Conductor Size | 30mm |
| Clamp Meter Type | Current, Voltage |
| Fluke 323/T110 Clamp Meter, Max Current 400A ac CAT III 600VBrand | Fluke |
Key Features
- True RMS functionality ensures accurate readings on non-linear loads.
- Measures AC current up to 400 A and AC/DC voltage up to 600 V for versatile electrical testing.
- Resistance measurement to 4000 Ω with continuity indication for circuit diagnostics.
- 30 mm jaw opening enables work on bundled conductors in confined spaces.
- Non-contact voltage detector allows quick safety checks without clamping.
- Compact design with AAA battery power for easy field portability.
- LCD display provides clear and hold functions for ease of use.
- Operates in temperature range from -10 °C to 50 °C, suitable for various environments.
Product Description
The Fluke FLUKE 323 Clamp Meter is a handheld diagnostic instrument designed for electricians and engineers requiring precise current and voltage measurements in commercial and residential installations. It features True RMS technology to ensure accurate readings on non-linear loads and provides measurement capabilities for AC current up to 400 A and AC/DC voltage to 600 V. The clamp meter is equipped with a 30 mm jaw opening, allowing probing in tight bundles and confined cable compartments.
This robust device also incorporates a non-contact voltage detector that flags the presence of live conductors, enhancing user safety during initial site inspections without needing to clamp. It measures resistance up to 4000 Ω and offers continuity testing, useful for diagnosing electrical circuits, fuses, switches, and contacts.
Powering the unit is a convenient AAA battery, ensuring portability with an easy battery replacement. The LCD screen supports clear readouts and holds data for better field usability. The FLUKE 323 is rated to stringent safety standards, including CAT IV 300 V and CAT III 600 V, aligning with requirements for working on electrical distribution and building installation environments. It operates reliably between -10 °C and 50 °C, covering a broad usage climate.
This Clamp Meter is ideally suited for verifying load current on motors and drives, troubleshooting distribution circuits in buildings, checking voltage presence on switchgear and control panels, and performing continuity tests in automation and electronics maintenance tasks.
True RMS for precise measurement on non-linear loads. 400 A max AC current measurement capability. 600 V AC/DC voltage measurement range with high accuracy. Resistance range up to 4000 Ω with continuity indication. 30 mm jaw opening designed for tight conductor access.
Non-contact voltage detector enhances safety with live voltage indication. AAA battery powered for convenient field use. LCD display with data hold feature for clear measurement viewing. Suitable for a wide range of industrial, commercial, and residential electrical applications.
Explore more measuring and testing instruments for professional electrical diagnostics and safety on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Fluke 323 can measure AC current up to 400 A.
This model can measure AC and DC voltage up to 600 V.
It can measure resistance up to 4000 Ω with a resolution of 100 mΩ.
The maximum jaw opening of the Fluke 323 is 30 mm, allowing access to bundled conductors.
This unit features an LCD display for clear readouts and data hold functions.
It operates reliably between -10 °C and 50 °C.
It is rated for CAT IV 300 V and CAT III 600 V safety categories.
The Fluke 323 measures AC voltage, DC voltage, AC current, resistance, and continuity.
The accuracy for AC current measurements is ±2 % of reading plus 5 digits.
It is powered by AAA batteries, making it convenient for field use.
The resolution for AC voltage measurements is 100 mV.
Yes, it includes a non-contact voltage detector for quick safety checks without clamping.
