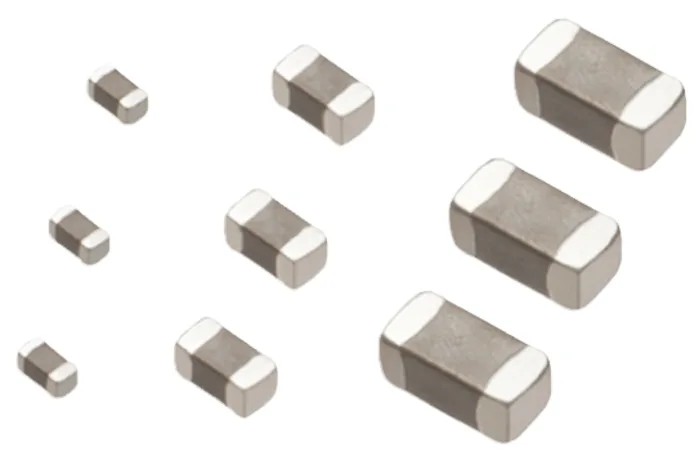

Panasonic SMT Transient Suppressor Varistor 16V DC 3A 1.6mm x 0.8mm x 0.8mm EZJZ1V270RA

Panasonic EZJZ1V270RA SMT transient suppressor varistor offers advanced multilayer protection against electrostatic discharge (ESD) and surges in sensitive electronic components. Constructed from high-performance semiconductive ceramics, this bipolar varistor replaces combinations of capacitors and zener diodes in protecting circuits.

Its ultra-low capacitance design minimizes signal degradation making it ideal for high-speed data interfaces such as HDMI, USB 2.0, and IEEE 1394. The device features lead-free terminal electrodes to ensure excellent solderability, although flow soldering processes must be avoided to maintain integrity.

Compact and surface-mountable, it measures just 1.6mm in length, 0.8mm in height, and 0.8mm in depth, accommodating space-constrained PCB layouts. Electrical specifications include a maximum DC voltage rating of 16V and a surge current handling capacity of 3 amperes, supporting robust transient protection.

Rated to operate at temperatures up to 85°C, the EZJZ1V270RA ensures reliable performance in demanding industrial and consumer electronic applications. Constructed from advanced semiconductive ceramics providing excellent ESD suppression.

Bipolar multilayer varistor suitable for high-speed signal lines and ESD protection. Ultra low capacitance ensures minimal interference in data lines. Lead-free terminal electrodes enhance solderability with flow soldering to be avoided.

Compact dimensions: 1.6mm length, 0.8mm height, and 0.8mm depth. Maximum DC voltage rating of 16V and surge current capacity of 3A. Maximum operating temperature is 85°C for reliability under thermal stress. RoHS compliant and manufactured in Japan ensuring quality standards.

This Varistor is suited for industrial, laboratory, manufacturing, and consumer electronics where ESD and surge protection is critical, including interfaces for HDMI, USB, and IEEE 1394 devices.
